IO3XX Rear Plug-in Signal Conditioning Modules

IO3XX Rear I/O Signal Conditioning Plug-ins

IO3XX rear plug-in I/O modules are available for FPGA I/O modules. They provide front of enclosure access to the rear I/O, and can convert the LVCMOS lines to RS422, RS485 or TTL.

Selection Guide

IO3XX-21	Converts the rear I/O lines from LVCMOS to 3.3V/5V TTL and makes them accessible from the front of the enclosure
IO3XX-22	Converts the rear I/O lines from LVCMOS to RS422, RS485 and 3.3V/5V TTL and makes them accessible from the front of the enclosure
IO3XX-24	Electric Motor Control, Rear I/O Signal Conditioning Plug-in
IO3XX-32	Converts the rear MGT lines to fiber optic links via SFP cages accessible from the front enclosure

Plug-in Concept

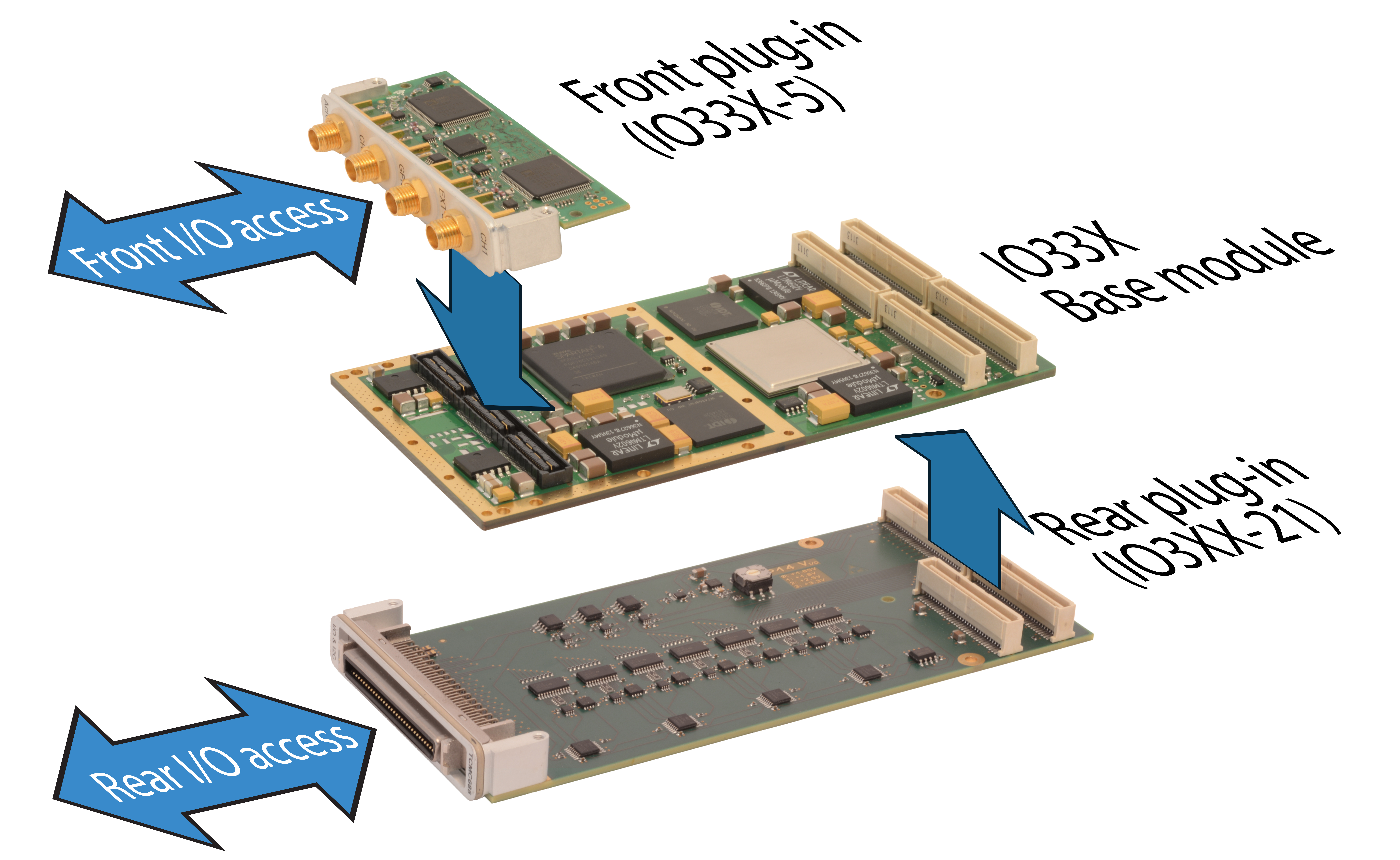

Optional IO33X front plug-ins allow a variety of digital (TTL, LVDS, CMOS), RS485/RS422, and analog functionality to be added to IO33X FPGA I/O modules.

Optional IO3XX rear plug-ins allow the digital lines of the IO3XX FPGA I/O modules to be accessible from the front of the enclosure, and convert them to TTL, RS422 or RS485.
