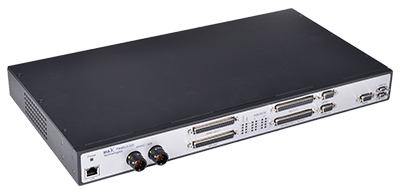

IO629: ARINC 629 I/O Module

ARINC 629 avionics communication I/O module

The IO629 I/O module is a flexible ARINC 629 device with 2 or 4 data buses. Each data bus can emulate a bus monitor and up to 120 remote terminals (RT).

It has programmable CID per RT and on a per-message basis, and extensive error injection/detection capability including parity error, sync, bit, word, and gap length.

This device has 1U height and is ideal for 19" rack installation. It is connected to the real-time target machine via the PCIe interface.

The following variants are available:

IO629-FlexMulti-2CH-120RT ARINC 629 I/O module with 2 data buses
IO629-FlexMulti-4CH-120RT ARINC 629 I/O module with 4 data buses

To provide this solution Speedgoat work closely with MAX Technologies, leading developers of ARINC technology.

Item ID Product Name Components
2C629 IO629-FlexMulti-2CH-120RT
  • 1 x IO629-FlexMulti-2CH-120RT I/O module with 2 data buses
  • PCIe connection kit to the Speedgoat real-time target machine
  • Driver block library for Simulink Real-Time™
2D629 IO629-FlexMulti-4CH-120RT
  • 1 x IO629-FlexMulti-2CH-120RT I/O module with 4 data buses
  • PCIe connection kit to the Speedgoat real-time target machine
  • Driver block library for Simulink Real-Time™

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.

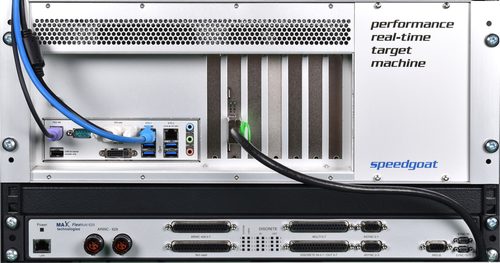

IO629: ARINC-664p7 / AFDX avionics communication I/O Module IO629 connected to a Performance real-time target machine via PCIe

Included in the Delivery

  • I/O module
  • PCIe connection kit to the Speedgoat real-time target machine
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
