IO710

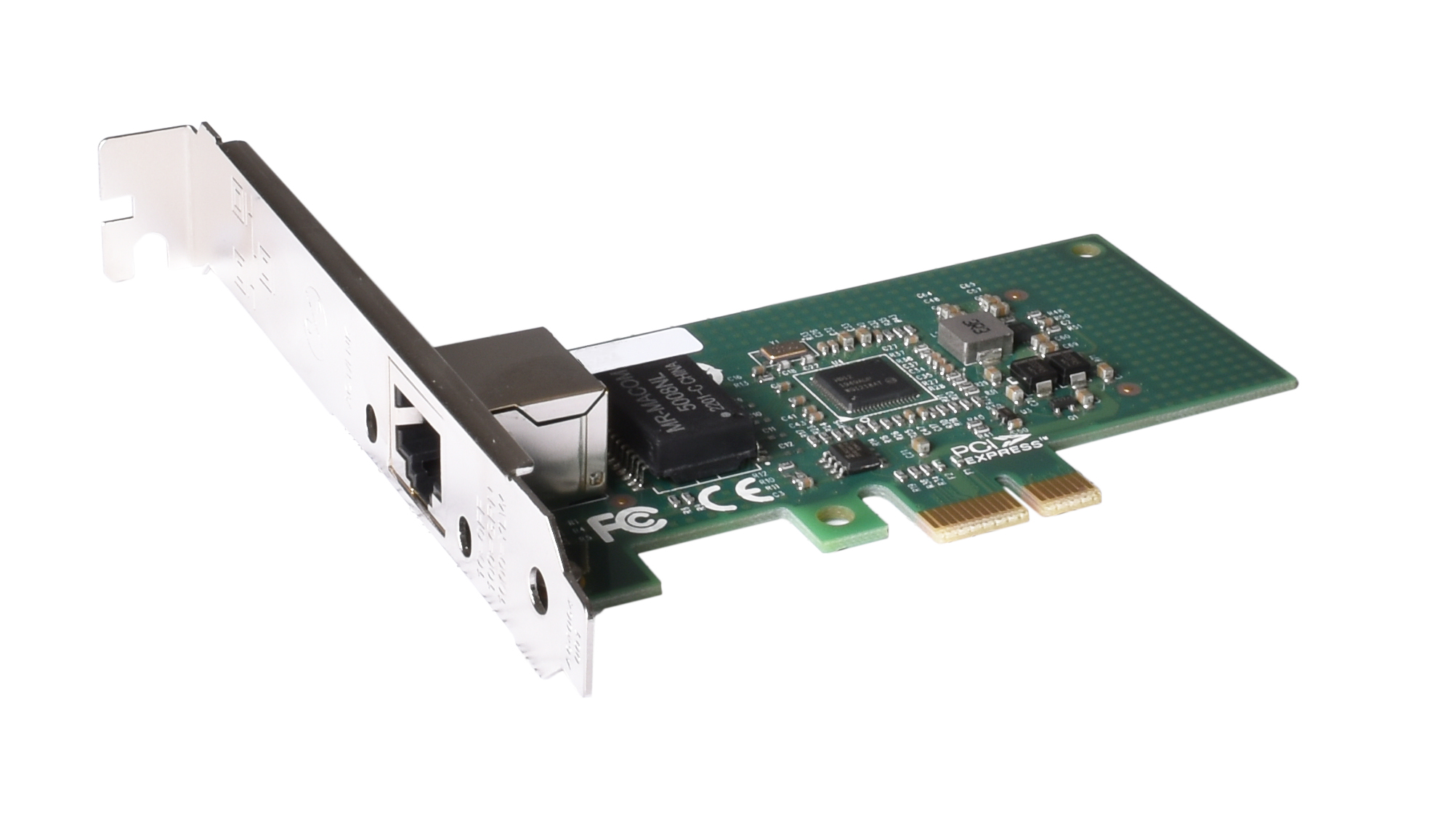

One-Channel Gigabit Ethernet I/O Module and Simulink® Driver Blocks

The IO710 I/O module provides a one-channel 10BASE-T/100BASE-TX/1000BASE-T Ethernet interface. The Ethernet interface supports 10, 100 and 1000 Mbit/s transmission rates for full-duplex operation, as well as 10 and 100 Mbit/s transmissions for half-duplex operation.

The one-channel Ethernet interface of the IO710 can perform an auto-negotiation algorithm which allows both link partners to identify the best link parameters themselves.

The I/O module provides support for the following protocols:

  • DNP3 (separate Runtime licences, MATLAB R2020b and later)
  • EtherCAT Master (MATLAB R2018a and later)
  • PTP IEEE-1588 (MATLAB R2018b and later)
  • Real-time UDP (MATLAB R2018a and later)
  • TCP/IP (MATLAB R2018a and later)
  • XCP master for bypassing (MATLAB R2018a and later)
  • Modbus TCP (separate Runtime licenses, MATLAB R2020b and later)
  • OPC UA (separate Runtime licenses, MATLAB R2020b and later)

The IO710 I/O module is fully compatible with the Simulink Real-TimeTM workflow.The extensive Simulink Real-Time driver blockset offers comprehensive functionality and firmware updates are easily available, as the Setup driver block downloads microcontroller firmware each time a target application is initialized.

Key Features

  • Compatible with Gigabit Ethernet, Fast Ethernet and Ethernet
  • 1 Intel™ I82541 PI Gigabit Ethernet controller
  • PCI 2.3 (32-bit 33/66 MHz) compliant
  • 10Base-T/100Base-TX/1000Base-T rate with auto-negotiation
Physical
Form factor PCI
Power requirements 800 mA typical @ +5 V
Electrical Interface PCI 2.3 (32-bit 33/66 MHz)
Connectors 1x RJ-45
Environmental
Operating temperature 0 °C to +55 °C
Relative humidity 85% at +55 °C
Technical
Data rate(s) supported per port 10/100/1000 Mbps
Integrated memory 64 kB
Controller-Processor Intel™ 82541PI
Item ID Product Name Components
20710X* IO710
  • 1x IO710 Gigabit Ethernet I/O module
  • Driver block library for Simulink Real-Time™
  • Comprehensive documentation and Simulink example models
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 6 = Performance real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in the Delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
