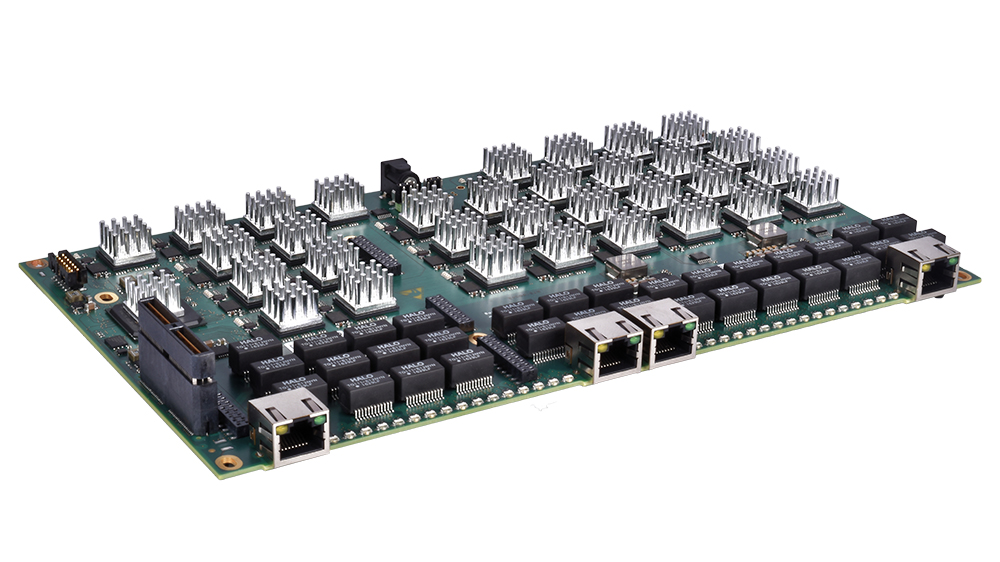

IO752-32: I/O Module for PROFINET

32-Node Simulator I/O Module for PROFINET

The IO752-32 is a PROFINET device module that empowers users to simulate large-scale industrial installations, infrastructure and maritime vehicles; for example, production plants, ships, wind farms, solar parks, power grids, tunnels and train networks.

The module physically emulates a high number of real-time capable PROFINET devices that communicate with the remote PROFINET controller as in a real industrial plant. Each device is represented by an independent network transceiver, ensuring short response times.

The IO752-32 is ideal for hardware-in-the-loop (HIL) simulations using MATLAB® and Simulink®. It allows manufacturers of industrial systems and equipment to test plant controllers and realize virtual commissioning with digital twins: manufacturers can implement the plant behavior, operation modes and states in Simulink, add IO752-32 driver blocks to exchange data with the plant controller and use Simulink Test™ for error-injection, automated testing and test reporting.

Key Features

  • Simulation of 32 PROFINETdevices per module and up to 128 devices per machine
  • 2 separate linear networks with 16 nodes
  • Simulates a vast range of PROFINETdevices from all vendors
  • Compatible with Real-Time Cyclic Protocol (RTC) – Class 1 & Class 2 (unsynchronized), Class 3 (synchronized)
  • Seamless import of AML files from TIA Portal to easily set up multiple device simulation
  • Acyclic communication

Physical
Form factor Speedgoat proprietary for Mobile real-time target machine
Power requirements 55W
Electrical interface PCI Express
Connectors 4x RJ45 socket
Protocol chip 32 Hilscher netX 52 controlled via dual-port memory
Environmental
Operating temperature -40 °C to +85 °C
Certification  5 to 95 %, non-condensing
I/O Access

Maximum number of input bytes  1024
Maximum number of output bytes  1024
Maximum number of sub-modules  128 (default**)
Minimum cycle time RT  1 ms
Minimum cycle time IRT  250 µs
Acyclic communication Read/Write records
Maximum number of user-defined records 4096
Maximum number of record payload bytes 1024
Maximum number of application relations (AR) 1 (default**)
Custom I&M information  On demand
Sending user-defined alarms  On demand
Baud rate  100 MBit/s
Data transport layer  Ethernet II, IEEE 802.3
Reliability
Mean time between failures (MTBF)* 159,000 hours
* MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2. Environment GB 20 °C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
** Custom firmware is available supporting more sub-modules and application relations
Item ID Product Name Components
2Z752* IO752-32 PROFINET device
  • 1 x IO752-32 I/O module with 32x PROFINET device nodes
  • Driver block library for Simulink Real-Time
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
