IO811: Camera Link frame grabber I/O module

Camera Link frame grabber PCIe I/O module

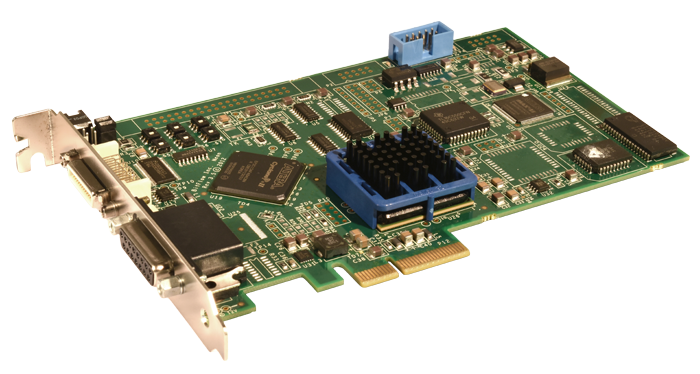

The IO811 is a Camera Link frame grabber I/O module supporting one industrial camera. It has the PCIe form factor.

  • Base Camera Link interface
  • Power over Camera Link (PoCL)
  • Supports both PoCL and non-PoCL cameras
  • Fully backwards compatible with non-PoCL cameras and cables
  • Supports images up to 256K x 128K
  • Triggers and encoders for external control of acquisition
  • Quadrature encoder support including sophisticated triggering schemes
  • On board timing generator supports high-resolution exposure control

Item ID Product Name Components
20811X IO811
  • 1 x IO811
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 6 = Performance real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • I/O module installed into real-time target machine
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
