IO292: Digital I/O Module

Digital I/O Module with 24 TTL Digital I/O Channels

The IO292 I/O module is a digital input and output module with Simulink® driver blocks and features 24 TTL digital input and output channels supporting a 24 mA source/sink current.

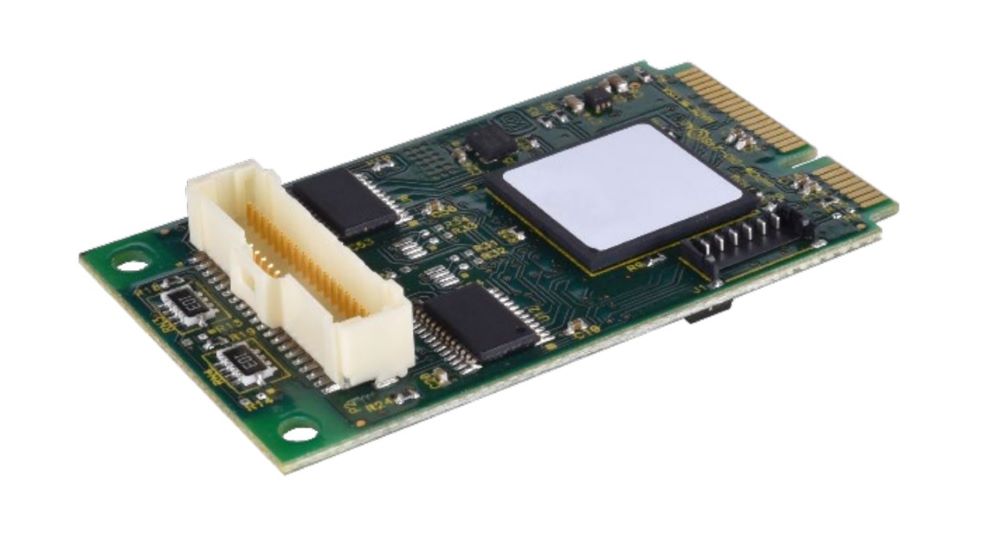

This I/O module consists of a mini-PCI-Express (mPCIe) interface board that connects to two 17-pin M12 connectors, making the module easily accessible in any of your applications.
This I/O module is ideal for multi-channel digital applications using MATLAB® and Simulink®.

Key Features

  • 24 digital LVTTL I/O lines (24 mA source/sink)
  • 10 kOhm pull-up resistors
  • Channel groups 1-8, 8-16, 17-20, and 21-24 configurable as inputs or outputs
  • Simulink® Real-Time™ input and output driver blocks
Physical
Form factor mPCIe
Power requirements +3.3 VDC @ 330 mA (typical)
Connectors 2x 17-pin M12 connectors
Environmental
Operating temperature -40°C to +85°C
Relative humidity 5 to 95%, non-condensing
Digital Input/Output
Number of channels 24
Input voltage rating 3.3 VDC, 5 VDC tolerant
Logic input levels  < 0.8 V (logic '0')
> 2 V (logic '1')
Output voltage rating

> 2.0 V (logic ‘1’), 24 mA source

< 0.55 V (logic ‘0’), 24 mA sink

Power output +3.3 VDC via 0.5A polyfuse
Reliability
Mean time between failures (MTBF)* 530,000 hours
MTBF (Mean Time Between Failure) *MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2. Environment GB 20 °C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID

Product Name

Components
2A292X IO292
  • 1x IO292 I/O module
  • 2x 17-Pin Male M12 to 17-Pin Female M12 I/O Cable
  • 1x 2-way 17-Pin M12 Terminal Board
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into real-time target machine

*Please replace the X with the code number of the specific target machine for the I/O module installation:

7 = Unit real-time target machine
8 = Baseline real-time target machine



Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
