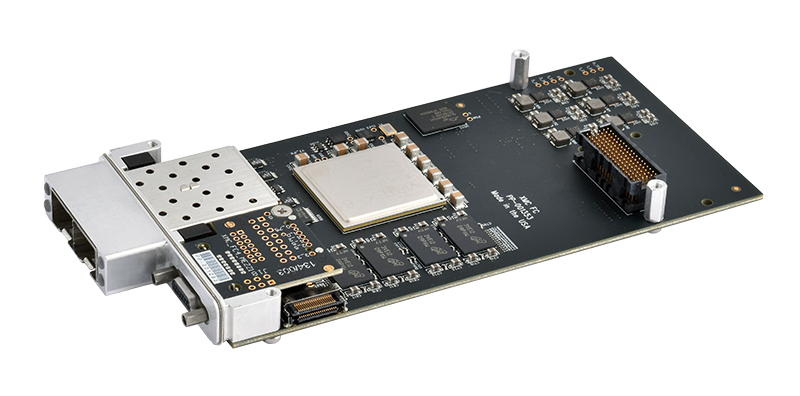

IO781: AFDX (ARINC 664 Part 7) I/O Module

AFDX (ARINC 664 Part 7) avionics communication I/O module

Avionics Full-Duplex Switched Ethernet (AFDX) is a data network for safety-critical applications. It is based on Ethernet technology and can use commercial off-the-shelf hardware to reduce costs and development time.

  • 10/100 Mbit/s and 1 Gbit/s Ethernet interfaces
  • Supports the simulation of multiple ARINC 664 End Systems on a single hardware module
  • FPGA-based architecture with embedded processors handles all upper layer protocol processing
  • DMA for high data rate applications
  • Copper or optical interface options available
  • XMC form factor

Item ID

Product Name Components
2A781X IO781
  • 1 x IO781 with copper interface
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2B781X IO781
  • 1 x IO781 with optical interface
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.

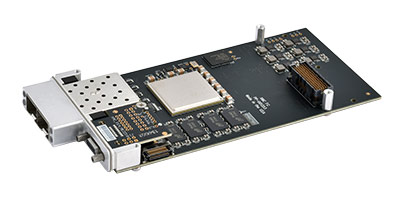

IO781: ARINC-664p7 / AFDX avionics communication I/O Module

Included in delivery

  • I/O module installed into real-time target machine
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation

Supported target machines
