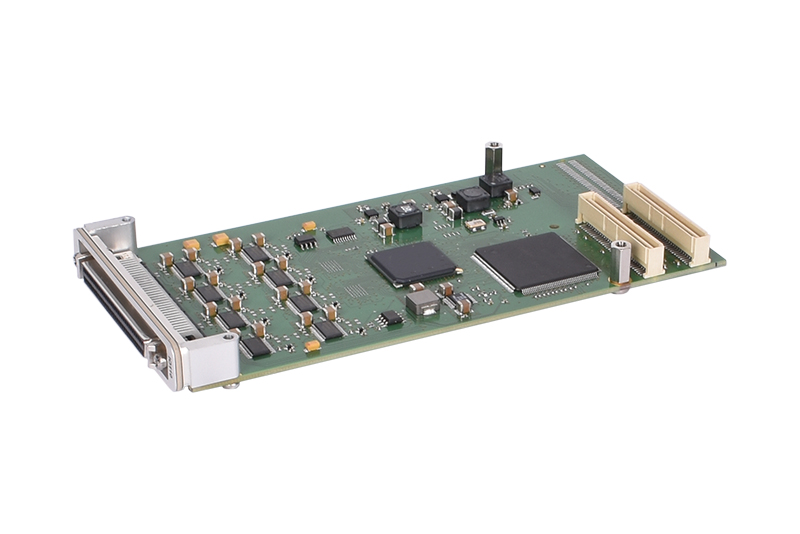

IO110: Fast 16-Bit Analog Output Module

Fast 16-bit analog module with 32 single-ended analog output channels and Simulink driver blocks

The IO110 I/O module is a fast, 16-bit analog module with 32 single-ended output channels and Simulink® driver blocks.

This IO110 is a dedicated analog output module with a resolution of 16 bits. Each of the 32 output channels has a dedicated D/A converter, and the output coupling of the module is single-ended for all channels. The output range of each channel can be selected individually.

This I/O module is ideal for closed-loop controls and hardware-in-the-loop (HIL) simulations using MATLAB® and Simulink.

Analog Outputs

  • 32 single-ended channels, dedicated D/A converter per channel
  • 16-bit resolution
  • 10 μs settling time per channel
  • Software-selectable ±10.8 V, ±10 V ±5 V, 0-10.8 V, 0-10 V, 0-5 V output range
  • Overcurrent protection
  • Automatic calibration
  • Auto-calibration of entire analog output section
Physical
Form factor PMC
Power requirements 200 mA typical @3.3 V
600 mA typical at 5 V (+-10 V, 2 kΩ)
Bus 32bit/33MHz
Connector 68-pin SCSI3 connector
Environmental
Operating temperature -40 °C to +85 °C
Relative humidity 0 to 95 %, non-condensing
Analog outputs
Number of outputs 32 single ended
D/A resolution 16 bit
Settling time 10 μs (max)
Voltage ranges ±10.8 V, ±10 V, ±5 V, 0-10.8 V, 0-10 V, 0-5 V (software-selectable for each channel individually)
Output load Max 2 kΩ | 4000 pF per channel
  20 mA current limit option (software-selectable)
Thermal shutdown option (software-selectable)
INL/DNL Error ±16/±1LSB
Reliability
Mean time between failures (MTBF)* 683,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
20110X IO110
  • 1 x IO110
  • 1 x 68-pin male SCSI3 to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1 x 68-pin female MDR terminal board
  • Driver block library for Simulink Real-Time
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine


Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine


Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
