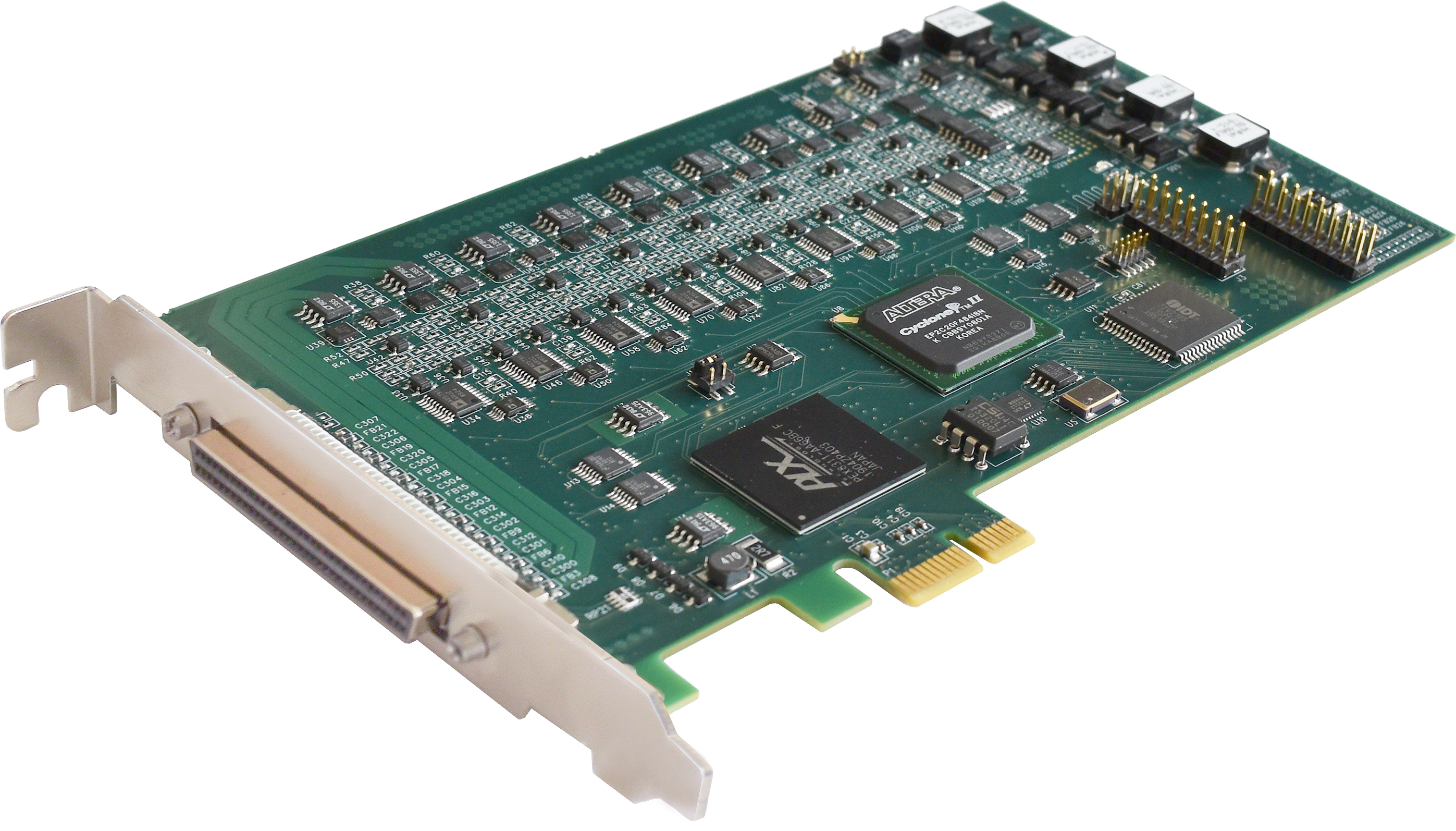

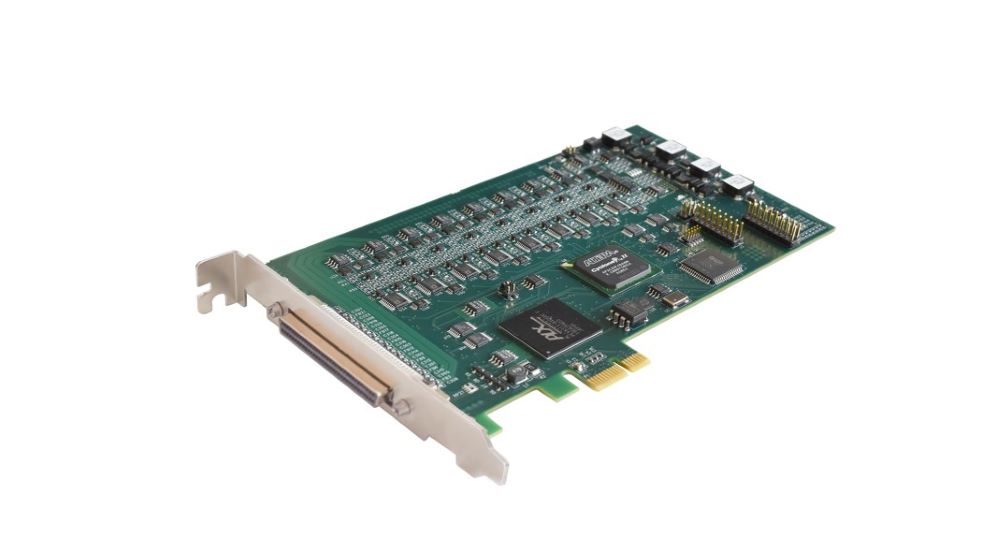

IO113-20: 20-bit Analog Output Module

20-bit analog module with 8 single-ended or 3-wire differential output channels and Simulink® driver blocks

The IO113-20 I/O module is a precision 20-bit analog module with eight simultaneously clocked output channels and Simulink® driver blocks.

The outputs can be clocked at rates of up to 500 KSPS per channel and are supported by a 256K-Sample FIFO data buffer. Both continuous and burst clocking modes are supported, and voltage ranges are software-selectable as ±10 V and ±5 V or ±5 V and ±2.5 V (See technical specifications).

Each analog output channel implements a weighted-DAC R-2R configuration, which has no minimum clocking rate and  decreases latency.
The outputs can be software-configured either for single-ended operation or for 3-wire differential operation.

On-demand autocalibration determines and applies error correction for all output channels, and the eight bidirectional digital I/O lines are programmable as inputs or outputs.

Key Features

  • 8 single-ended channels or 3-wire differential channels, with a dedicated D/A converter per channel
  • 20-bit resolution
  • 8 μs settling time per channel
  • Voltage ranges: software-selectable ±10 V and ±5 V or ±5 V and ±2.5 V (See Technical Specifications)
  • Independent 256K-sample output FIFO buffer
  • Autocalibration
  • Clocking from either external or internal sample rate generator
  • Remote ground sensing to minimize single-ended errors
Physical
Form factor PCI Express Short-Card
Power requirements 9.4 W typical, 11 W maximum
Connectors 68-Pin female SCSI3
Environmental
Operating temperature 0 to 70 °C (extended temperature option: -40 to +80 °C)
Relative humidity 0 to 95 %, non-condensing
Analog outputs
Number of outputs  8 single-ended or 3-wire differential analog outputs
Dedicated D/A converter per channel
D/A resolution  20 bit
Settling time 8 µs to 0.1 percent of step, typical with half-scale step
Voltage ranges Option A: ±5 V and ±2.5 V (software-selectable)
Option B: ±10 V and ±5 V (software-selectable)
Output load Zero to ±5 mA per channel
Output protection Withstands sustained short-circuiting to ground
Integral nonlinearity ±0.002 % FSR
Differential nonlinearity ±0.0005 % FSR
Digital I/O
Number of I/O lines 8 bidirectional digital TTL I/O lines
Configuration 2 groups of 4 I/O lines, configurable as inputs or outputs
Maximum input loading 0.2 mA (as current source)
Maximum output loading 8 mA (source or sink)
Item ID Product Name Components

2A1136

2B1136

IO113-20
  • 1x IO113-20
    • Option A ±5 V and ±2.5 V
    • Option B ±10 V and ±5 V
  • 1x 68-Pin Male SCSI3 to 68-pin male MDR Cable (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal board
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models

201139

IO113-ExtTemp  Increases the temperature range of the IO113-20 from 0 to +70 °C to -40 °C to +80 °C
Optional Accessories
20113M IO113-BNC-Panel 2U aluminum BNC panel for the IO113-20 I/O module providing a total of 16 BNC connectors to access 8 differential analog outputs, and 8 BNC connectors to access 8 digital TTL I/O lines
20113N IO113-BNC-Box  Breakout BNC box for the IO113-20 I/O module providing a total of 16 BNC connectors to access 8 differential analog outputs, and 8 BNC connectors to access 8 digital TTL I/O lines

Key to X in Item ID
Please replace the X with the code number of the specific target machine for the I/O module installation:

  • 6 = Performance real-time target machine
