IO731 – Time Sensitive Networking (TSN) with standard or Automotive physical Ethernet interface

Leverage TSN together with real-time UDP, raw Ethernet or TCP/IP communication

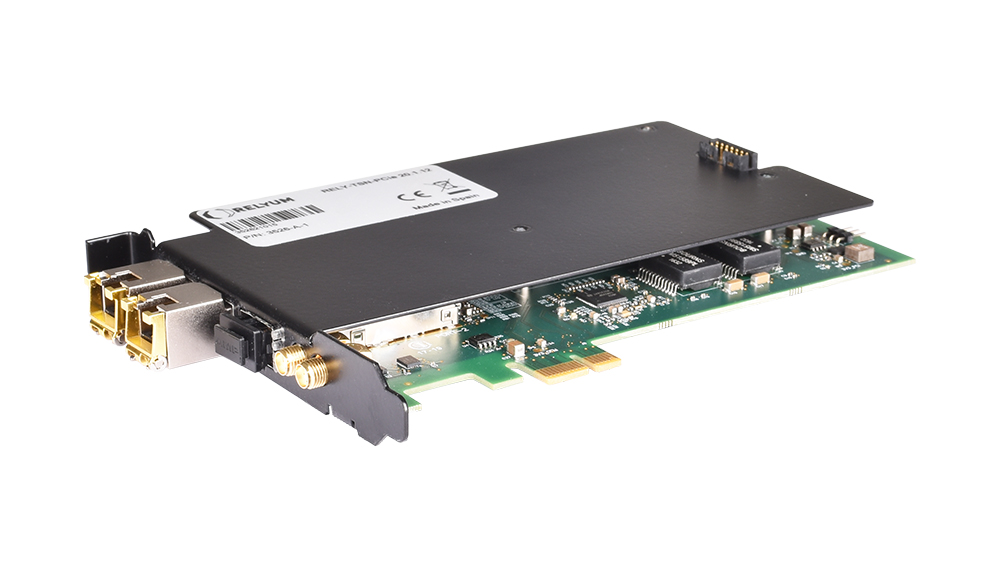

The IO731 I/O module provides two SFP ports, which by default are equipped with two standard physical Gigabit Ethernet transceivers (1000BASE-T) with RJ45 connectors.

Optionally, one or both ports can be equipment with a physical Fast Ethernet or Gigabit Ethernet twisted single-pair transceiver of type 100BASE-T1 or 1000BASE-T1, providing robust EMC support, such as for in-vehicle communication. Sometimes these physical interfaces are also referred to as Automotive Ethernet.

The TSN IEEE standards below are supported, enabling TSN Bridge or Endpoint operation, simultaneously with communication leveraging one of the following protocols:

  • Real-time UDP (MATLAB® R2020b and later)
  • TCP/IP (MATLAB® R2020b and later)
  • RAW Ethernet (MATLAB® R2022a and later)
  • IEEE PTP 1588-2008 (MATLAB® R2020b and later)

TSN IEEE Standards Supported

  • IEEE 802.1AS – Timing and Synchronization
  • IEEE 802.1Qbv – Enhancements for Scheduled Traffic
  • IEEE 802.1Qav – Forwarding and Queuing Enhancements for Time-Sensitive Streams
  • IEEE 802.1Qcc – Enhancements for Stream Reservation Protocol
  • IEEE 802.1CB – Frame Replication and Elimination for Reliability

Real-time UDP, TCP/IP, Raw Ethernet, and PTP 1588 communication is defined through Simulink® Real-Time™ blocks; TSN-specific features are configurable through a dedicated user interface, which is also accessible from within Simulink®.


Physical
Form factor PCIe
Electrical interface PCIe x1
Connectors The two SFP ports are by default equipped with RJ45 connectors for standard Ethernet-based communication. Optionally, one or both ports can be equipped with a Fast (100BASE-T1) or Gigabit (1000BASE-T1) Automotive Ethernet PHY, with Molex 0533250260 2.0 mm header and Molex 510900200 housing. Molex crimp contact is of type 50212-8000
Environmental
Operating temperature -40 °C to +70 °C
Relative humidity Max. 95 %, non-condensing
Technical
Data rate 10/100/1000 Mbit/s
SFP ports 2
Item ID Product Name Components
2A731X*   IO731
  • 1x IO731 Two-Channel TSN Ethernet I/O module
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine
  • 2x RJ45 copper SFP transceivers (10/100/1000)
Optional Accessories
350043 100Base-T1 PHY

100Base-T1 (twisted single-pair) instead of 1000Base-T PHY

350044 1000Base-T1 PHY 1000Base-T1 (twisted single-pair) instead of 1000Base-T PHY

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 6 = Performance real-time target machine

Pricing information
We do not publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.


IO731: Time Sensitive Networking (TSN) I/O Module with Simulink® Driver Blocks

Included in the Delivery

  • I/O module installed into real-time target machine
  • Simulink® driver blocks
  • Test models
  • Comprehensive documentation
