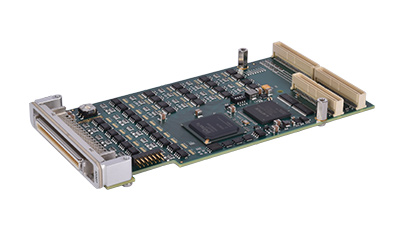

IO308

Configurable I/O Module

The IO308 I/O module is a flexible, cost-effective and configurable Spartan®-6 FPGA providing 25k logic cells.

This I/O module features 32 RS422/485 differential I/O lines which can be individually programmed as inputs or outputs.

The IO308 I/O module comes with a Speedgoat configuration file offering a large selection of standard interfaces such as PWM and SPI.

Key Features

  • 32 RS422/485 differential I/O lines
  • Digital inputs and outputs
  • Configurable FPGA workflow for Simulink Real-Time™ supported by Speedgoat custom implementation bitstreams and the Speedgoat Library
  • Simulink Real-Time driver blocks for FPGA code modules

Physical
Form factor PMC
Bus PCI
Power requirements Up to 620 mA typical @ +5 V DC
Approximate value with external load on all I/O channels: 1.0 A @ +5 V DC
Connectors Front I/O 68-pin MDR connector (3M N10268-52E2PC)
PMC P14 I/O (64-pin Mezzanine Connector)
Environmental
Storage and operating temperatures  -40° C to +85° C
Humidity 5 to 95 %, non-condensing
FPGA
FPGA chip Xilinx® Spartan-6 XC6SLX25-2FGG484I
Speedgoat product name IO308
Logic cells 25000
Clock frequency 73.728 MHz
I/O Interface

I/O channels 32 RS422/485 Differential I/O
I/O transceiver MAX3078E (or compatible)
Reliability
Mean time between failures (MTBF)* 440,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2. Environment: GB 20 °C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for FIT rate calculation.
Item ID Product Name Components
20308X* IO308
  • 1x IO308 I/O module
  • 1x 68-pin male MDR to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x DIN-rail mountable 68-pin female MDR terminal board
  • Driver block library for Simulink Real-Time
  • Installation into the real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
