IO34X-63: FMC Plugin for Simulink-Programmable FPGA I/O Modules

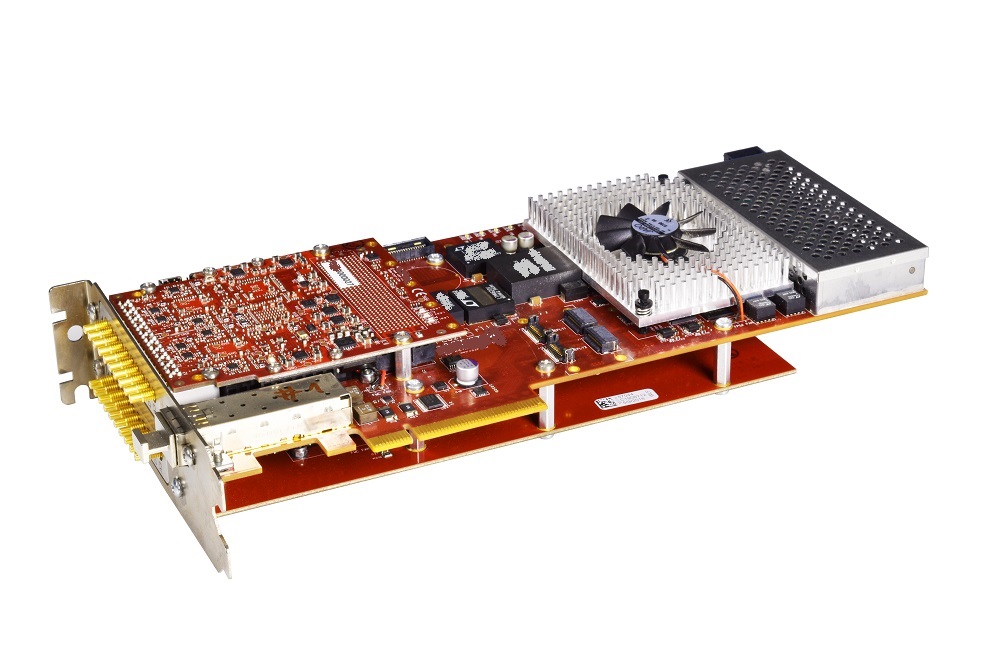

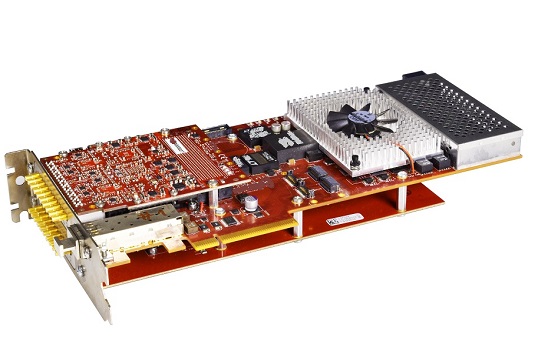

The IO34X-63 plugin provides four high-speed, four high-resolution ADC, and four high-resolution DAC channels on an FMC plugin.

This extremely broadband analog-acquisition module empowers users to work with the highest speed analog signals in the FPGA domain.

Both the ADC inputs and the DAC outputs operate at 16-bit, 1 GSPS.
Signals are available to the user's HDL Coder design as data, valid and trigger input and output ports.

Key features:

  • 4 analog input channels, operating at 16 bits and 1 GSPS
  • 4 analog output channels, operating at 16 bits and 1 GSPS
  • Optional input for a 10 or 100 MHz reference clock
  • Simulink-programmable FPGA workflow to use HDL Coder™ and Simulink Real-Time™ supported by the Speedgoat HDL Coder Integration Pack-age
  • Simulink Real-Time driver blocks as required for the HDL Coder Integration Package.



Physical
Form factor ANSI/VITA 47
Bus HPC FMC
Environmental
Operating temperature 0 °C to +55 °C
Relative humidity 5 to 95 %, non-condensing
Signal Properties
Output range DC Coupled: +4 dBm/1.0 Vp-p Typical @100 MHz into 50 ohms. 10 ns settling time to 0.1 %.
Input range DC Coupled: (50 ohms)
DC to 400 MHz: +4 dBm/1.0Vp-p DC (Max.)
DC to 1000 MHz: -5.0 dBm (Max.)
I/O Interface
I/O channels 4 channels each of analog in and analog out
Inputs A0-A3 SSMC Connectors
Outputs D0-D3 SSMC Connectors
HDL Coder Interface
Sample Rate 1 GSPS
Sample Resolution 16-bit
Data Interface 8x16 bit samples per FPGA tick
Control interface Trigger, valid and ready (AXI4-Stream timing)
Item ID Product Name Components
2O342 IO34X-63
  • 1x IO34X-63 Direct Plug-in
  • Comprehensive documentation and Simulink example models
  • Installation onto the carrier

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • FMC plugin installed on the IO34X carrier (carrier ordered separately)
  • Analog interface cables
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
