Speedgoat IO3xx Coprocessor Example

Speedgoat IO3xx Coprocessor Example — Example showcasing several implementations of coprocessor DMA engine handling.

Model Name

The model is called IO3xx_coprocessor_hdlc.slx.

Supported Modules

  • IO332-200k

  • IO333-325k, IO333-410k, IO333-325k-SFP, IO333-410k-SFP

  • IO334-325k, IO335-325k

  • IO342-1450k, IO342-1080k

Required Toolboxes

The list of basic software requirements are provided in the prerequisites section of the Getting Started page.

In addition, you must also install the DSP System Toolbox.

Interfaces

The example uses the following interfaces:

User Blocks

The example uses the following user blocks:

DMA Overview

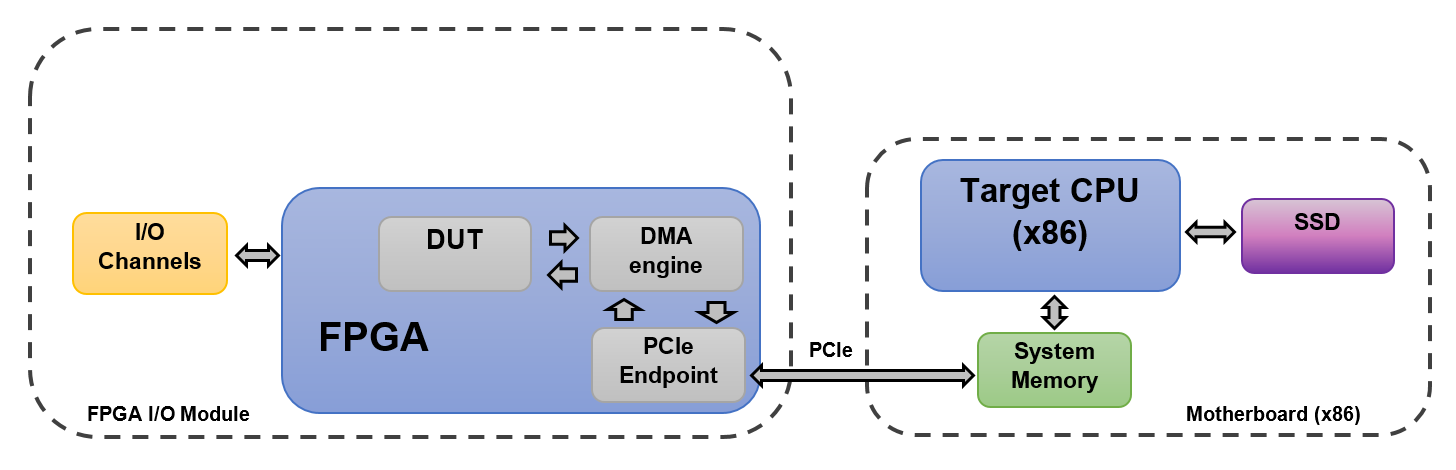

Direct Memory Access (DMA) is used to reduce the latency of data transferred between the FPGA and the target CPU domain, especially if larger amounts of data need to be transferred. There are different use cases depending on whether the data transfer is in the direction FPGA to CPU (data logging), or in the direction CPU to FPGA (playback) or bidirectional (coprocessor mode). A simplified setup including the basic blocks required to discuss the DMA use cases in a system comprising an FPGA-based I/O module and a Real-Time Target x86 CPU is illustrated below.

The FPGA I/O Module consists of the I/O channels (digital, analog, multi-gigabit transceiver, etc.), the FPGA itself, an external RAM (typically DDR3/DDR4 SDRAM), the design under test (DUT), the DMA engine and the PCIe Endpoint (used to communicate with the Target x86 CPU).

The Motherboard (x86) consists of the Target CPU (x86), the System Memory and the Solid-State Drive (SSD) for persistent data storage.

Example

To test the HDL interface functionality, dedicated examples are included in the downloaded archive file. To open the examples, navigate to the corresponding folder. Note that the examples only test I/O channels for which the loopback test method is possible. The terminal board provided must be wired as described. Examples do not test I/O channels that require external hardware (for some examples a function generator or an oscilloscope is required), but running this example will still provide sufficient confirmation of the correct setup of this implementation. The examples only test interface channels which are provided by the base functionality of the I/O module. Please note that the examples provided have been color coded. The green colored subsystem (FPGA domain) is the part of the model which is actually compiled using HDL Coder and ultimately runs on the FPGA. The FPGA domain usually has a sample frequency in the range of 100 MHz and is set in the HDL Workflow Advisor (FPGA Synthesis Software Settings). The blue blocks (CPU domain) which surround the green subsystem are interfaces to the processor section of the model. The CPU domain usually has a sample frequency in the range of 1 kHz. The interrupt subsystem has been given another color (magenta), as its functionality is asynchronous to both the processor and FPGA. The interrupt source can be selected in the generated model in the Interrupt Setup block once the model has been run through the HDL Coder Workflow Advisor.

The DMA engine is well suited to enabling the FPGA and the CPU to complement one another by acting in a coprocessing capacity. The engine is used to transfer data back and forth between the CPU and FPGA. There are several methods which can be used to sequence the DMA transfers, but in general, the data transfer is either uncontrolled, in which case the model execution rate must be kept long enough to ensure the completion of a transaction, or the transfer runs in a controlled fashion and model execution is kept in lock-step using interrupts for completion. Uncontrolled execution ensures deterministic model time steps, while sacrificing an optimized data rate.

DMA coprocessor mode

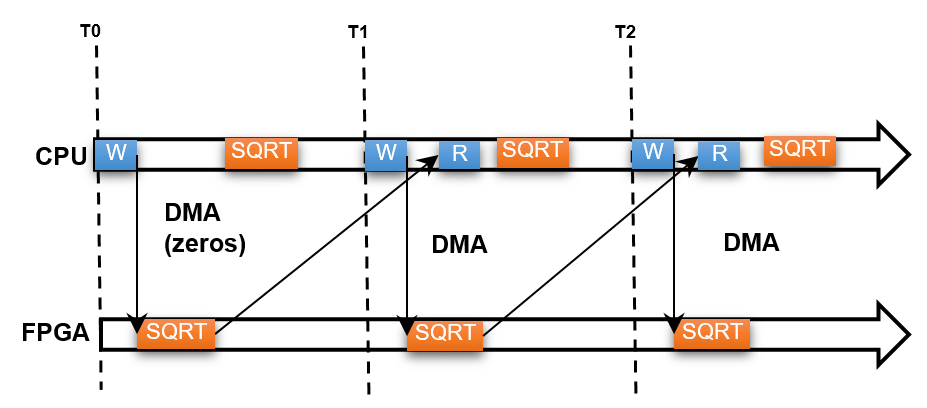

Uncontrolled DMA transfers with deterministic execution times

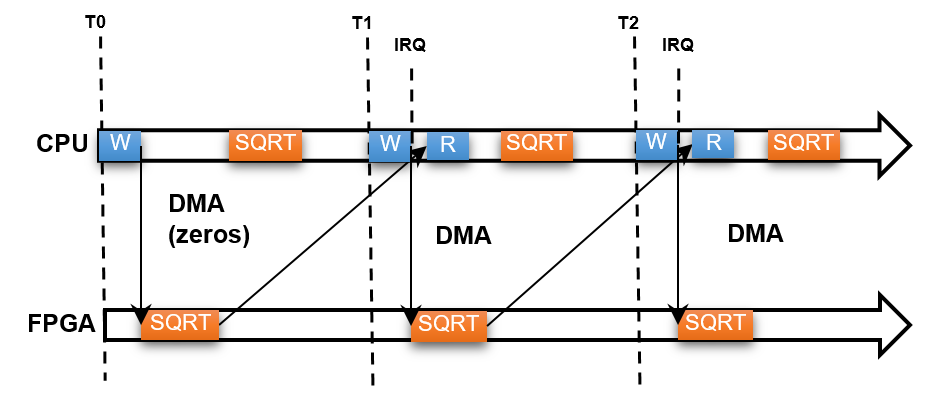

Uncontrolled DMA transfers with deterministic execution times and IRQ for reading

Coprocessor modes only vary in terms of the manner in which the model execution is driven forward. In uncontrolled execution, the model executes with a fixed model step rate, but it is the responsibility of the modeler to ensure that either the step size is long enough and both the read and the write execution have time to complete, or that it is acceptable for new results to not be required at each data step. In order to keep data read and write operations aligned, the write task must be completed in order to enable the read task. The other variation is to use either IRQ interrupts of the DMA read task to control further executions of the model. This way, the model runs as fast as possible, enabling the maximum data throughput. However, as DMA transfers are not a deterministic process, there will be a considerable jitter in the model execution times.

Calculation models a simple square root calculation performed on a stream of floating point data values.

FIFO Buffer handles the brief buffering of the data results to compensate for any delays in initializing the DMA transfer out of the design under test (DUT). It is worth noting that the data values are a sequence of scalars in the FPGA, since they come in as a stream, but they are aggregated into a vector by the DMA engine for use in the CPU domain.

The example includes several variations of implementations of coprocessor DMA engine handling, all in the same model, using variant subsystems (Variant Subsystem). Variant subsystems allow you to provide multiple implementations for a subsystem where only one implementation is active during simulation. You can programmatically swap out the active implementation and replace it with one of the other implementations without modifying the model. The provided script, when executed, first runs a simulation of the data transfer and co-processing, then runs through all four design variants provided. Each type of coprocessor execution includes a variant in which the CPU and the FPGA perform the same calculation (a square root operation) on a vector of values. There is also a variant where the calculation is performed exclusively on the FPGA. After all the variants are built and executed, a plot is generated which shows the agreement between the CPU and FPGA calculations. Finally, a plot is generated which shows the average total execution time for each design variant. This allows the user to examine the effect of IRQ vs. standard execution. Additionally, the computation time saved by performing the square root operation on the CPU instead of the FPGA can be seen in this second plot.

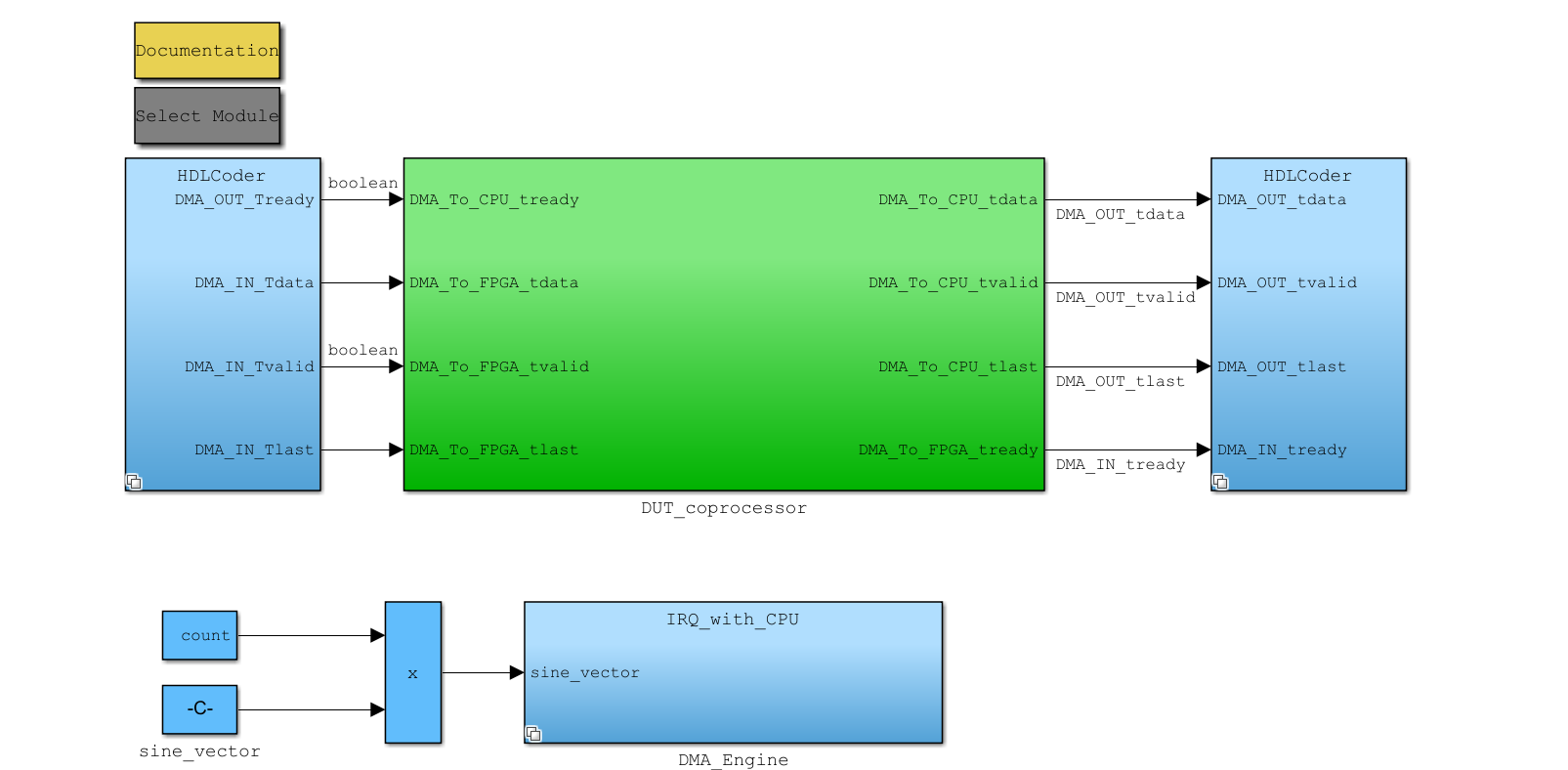

Open the example model by navigating to the folder containing the "*.slx" model file and double clicking the file. If the example is provided as a Simulink Project, navigate to the corresponding example folder and extract the Simulink project zip file. Then double-click the "*.prj" icon to open the project. After opening the project, open the model by double clicking the "*.slx" file. The model is shown as follows:

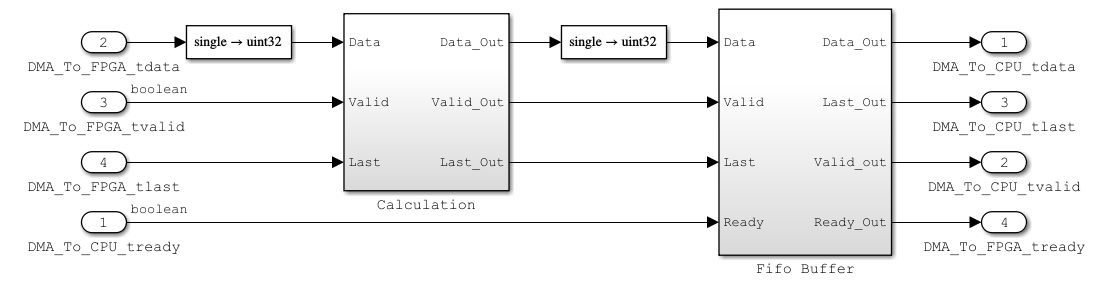

The design under test (DUT) subsystem is shown as follows:

Simulation

The simulation is run automatically when the script executes. As specific changes must be written to the data dictionary, it is best to run the simulation by running the script.

Target CPU driver

In the CPU domain of the model, the system labelled DMA_Engine contains all the DMA structural variants. The subsystem enabled is determined by a setting in the data dictionary. This setting will be automatically changed as required by the run script. Each of these subsystem variants (except for the simulation) contain the DMA read and the DMA write blocks. The size of the DMA transfer is saved in the frameSize variable, defined in the IO3xx_coprocessor.sldd data dictionary.

Running HDL Workflow Advisor

Before the example can be deployed and run on the real-time target machine, you will need to run through the HDL Coder Workflow Advisor steps to actually generate HDL code and a FPGA bitstream using HDL Coder (FPGA Synthesis Software Settings).

New: Reference design parameters, set at step 1.2 now control which interfaces will be available to target in step 1.3 of the workflow. This has reduced the total number of reference designs, and the list of interfaces available. Please remember to select the front plug-in and rear plug-in setting that is appropriate for your module, as well as the Aurora settings that should be used for your model (if applicable). These additional reference design parameter settings are further described in the interface sections for which they are relevant.

New: Prior to running the workflow advisor, be sure to double click the Select Module block in the demo model. If one or more of your modules support the model (due to available interface compatibility), a pop-up will display prompting you to select the module you would like to target. If only a single module is installed, and providing it is compatible, it will be automatically selected when the box is double clicked.

Upon completion, a newly generated model containing the Simulink Real-Time interface subsystem appears. At first sight, this subsystem resembles the FPGA subsystem. However, inside, the Simulink algorithm has been removed and replaced with blocks that the real-time application will use to communicate with the FPGA during simulation execution. The newly generated model is now ready to be deployed to a real-time target machine. To download the FPGA bitstream and the Simulink model to the target, click the Build Model button on the Simulink Editor toolbar. The real-time application loads on the Speedgoat target machine and the FPGA algorithm bitstream loads on the FPGA. If you are using I/O lines, check that you have connected the lines to the external hardware under test. Please note that some example models do have Global Delay Balancing intentionally disabled. If an error is displayed about delay balancing in step 2.3 of the HDL Coder Workflow Advisor, it can be safely ignored by checking the Ignore warnings checkbox.

Running the Example

To run the generated model, simply run the example script IO3xx_coprocessor_run.m. The script configures, builds and runs the model through all of the design variants. Finally, it produces plots which show the results of the execution in the various design variants, as well as the effect of various coprocessor schemas on the total execution time.

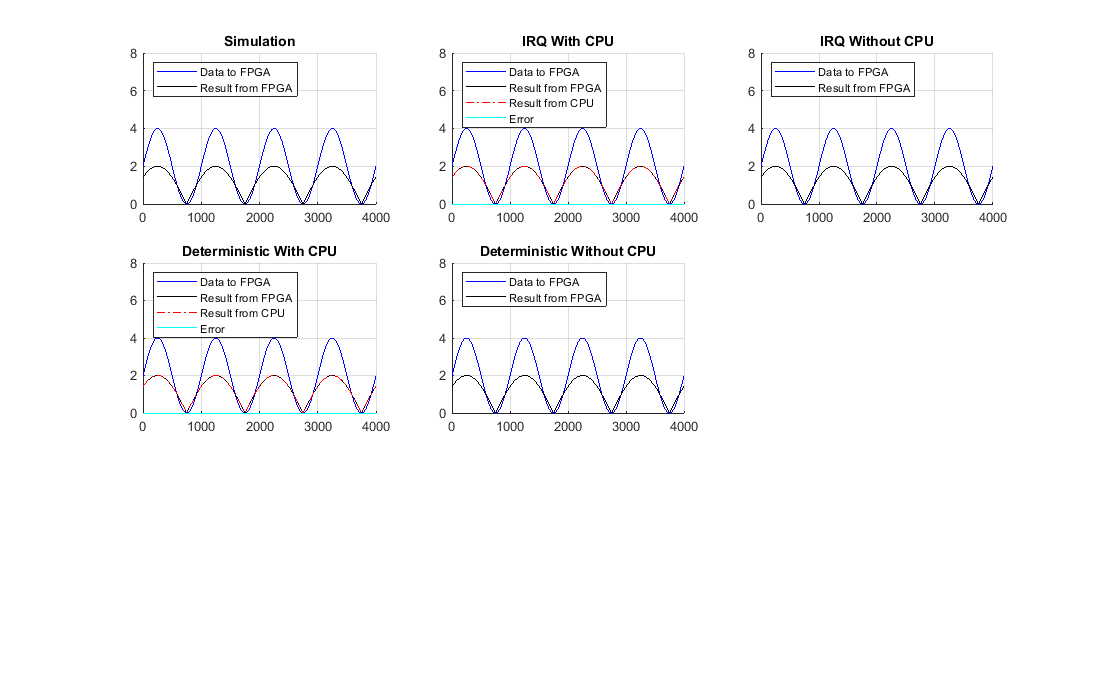

Data results from the various design variants

Design variant average task execution times (TETs)
