Hardware-in-the-Loop (HIL) - Validation and Verification of Controllers
Run deterministic models of the electrical system, including switching dynamics, power sources and loads to help is used to validate the your digital controller in real time against a deterministic model of the electrical system, including power sources and loads.
Reuse the same electrical system models from desktop simulation to execute automated tests with Simulink Test and verify different operating and fault conditions to the controller.

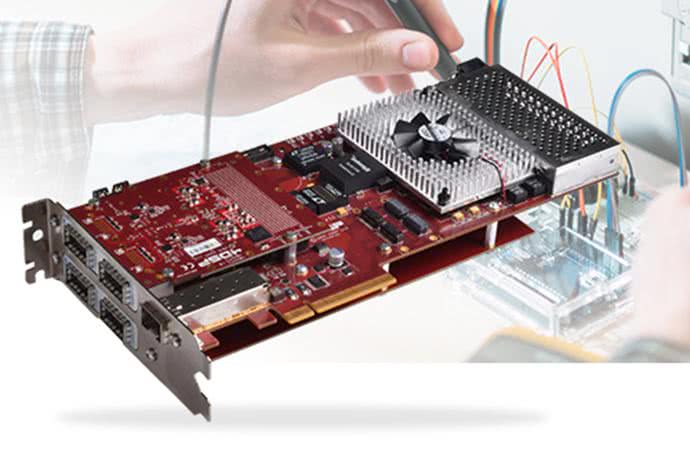

Partition your model and run it on multiple CPU cores via concurrent execution and Simulink-programmable FPGAs. Enable deterministic data transfer combined with high-speed analog, digital and fiber-optic interfaces, and communication protocols, including EtherCAT, CAN, CAN FD, MODBUS, and PROFINET.
⮕ Learn more about HIL
