IO601: CAN I/O Module

Intelligent CAN module with 2 isolated, software-selectable high/low speed CAN ports, with Simulink driver blocks

This is a very versatile intelligent CAN-bus module with two isolated ports, supporting standard (11-bit) and extended (29-bit) identifiers, and high-speed (ISO 11898-2) and low-speed, fault tolerant (ISO 11898-3) communication. Driver blocks for Simulink Real-Time are included.

It also supports the following protocols:

Features

  • 2 galvanically isolated CAN 2.0b ports
  • High-speed and low-speed modes, software selectable for each channel
  • On-board microcontroller manages the low-level flow of CAN messages
  • 'Lean' on-board CAN firmware leads to minimal receive and transmit driver block latencies
  • Extensive Simulink Real-Time driver blockset offers a comprehensive set-up block and various receive and transmit blocks supporting FIFO mode and object modes
  • Easy firmware updates: the Setup driver block downloads microcontroller firmware each time a target application is initialized

Physical
Form factor PMC
PCI bus 32-bit, 33MHz
Power consumption 2.5W, typical
Environmental
Operating temperature -40ºC to +85ºC
Relative humidity 5 to 95%, non-condensing
CAN

Microcontroller Infineon XC161, 40MHz
CAN controller Internal TwinCAN module (two CAN ports)
CAN bus interface ISO/IS 11898-2 (high-speed) and ISO/IS 11898-3 (low-speed), two 9-pin DSUB connectors (DS102), galvanically isolated, and high/low speed bus interface switchable via software
Reliability
Mean time between failures (MTBF)* 722,855 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
20601X IO601
  • 1 x IO601
  • 1 x short cable (both connectors terminated) for loopback testing
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine


Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.

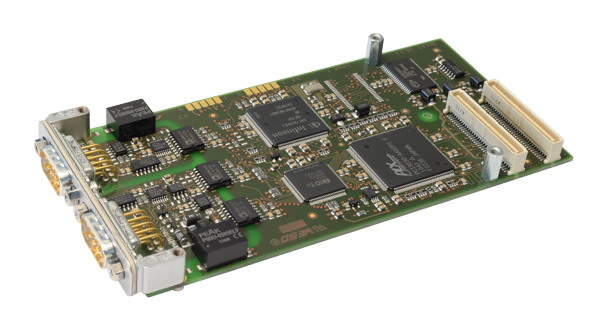

IO601 dual port CAN I/O module

Included in delivery

  • I/O module installed into real-time target machine
  • Loopback cable
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
