I/O Connectivity
The number of I/O modules that can be housed are as follows:
Model |
Number of I/O Modules |
Baseline S |
4 |
Baseline M |
6 |
The following modules are supported for installation into the -S version:
I/O Module |
Description |
IO172 |
6-channel RTD, thermocouple & strain measurement I/O module |
IO191 |
Sequential sampling analog I/O module with 8 single-ended or 4 differential inputs, 4 single-ended outputs, and 16 digital I/O lines |
IO291 |
Digital I/O module with 8 isolated digital inputs with up to 48VDC, 8 digital outputs with up to 48V and 1A current, and 8 x digital TTL I/O lines |
IO292 |
Digital I/O module with 24 x digital I/O lines |
IO391/IO392/IO393 |
I/O module with configurable TTL or RS422/RS485 I/O functionality, supporting PWM generation and capture, encoder inputs and outputs (quadrature, SSI, EnDat, BISS), SPI, I2C, SENT, and more |
IO397 |
I/O module with programmable FPGA and configurable digital TTL I/O functionality (PWM, encoders, SPI, I2C, SENT, …), plus 4 x single-ended/4 differential analog inputs, and 4 x single-ended analog outputs |
IO581 |
4-port serial I/O module supporting RS-232, RS-422 and RS-485 |
IO641/IO642 |
PROFIBUS Master or Slave I/O module |
IO643/IO644 |
CANopen Master or Slave I/O module |
IO691 |
CAN I/O module supporting 2 x CAN / CAN FD |
IO750 |
EtherCAT (subordinate device) I/O module |
IO751 |
PROFINET (controller) I/O module |
IO752 |
PROFINET (device) I/O module |
IO753 |
Modbus TCP (client) I/O module |
IO754 |
Modbus TCP (server) I/O module |
IO755 |
EtherNet/IP (scanner) I/O module |
IO756 |
EtherNet/IP (adapter) I/O module |
IO758 |
POWERLINK (controller node) I/O module |
IO791 |
Gigabit Ethernet I/O module for real-time UDP, TCP/IP, EtherCAT Master or XCP Master/Slave |
I/O modules with PMC or XMC form factor can only be installed into the -M version.
Desk, Lab, and In-Vehicle Installation
Each Baseline real-time target machine can be pre-configured for in-vehicle installation. In addition, it can also be used for desk/lab placement.
Real-Time Performance
By default, the Baseline real-time target machine comes with a quad core CPU with a 2 GHz clock rate.
For applications or application components requiring sample rates up to the MHz range, you can choose from a selection of Simulink® Programmable FPGAs, also including lowest latency analog and digital I/O connectivity. For higher sample rates, you can choose the Performance real-time target machine.

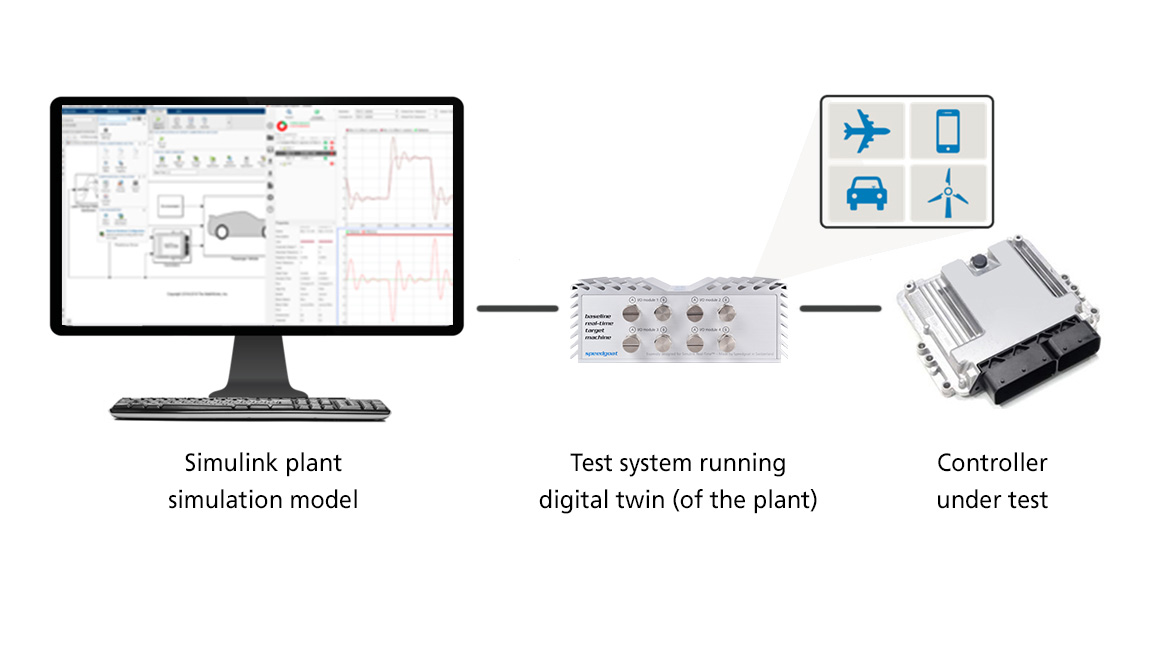

Within Simulink®, you can define which application components you want to execute on the CPU, and which ones on one or multiple programmable FPGAs, at different sample rates. Also use the configurable I/O modules to configure I/O functionality from within the Simulink® environment.
High Speed Data Logging
Real-time testing frequently requires logging large amounts of data for an extended period of time, analyzed after real-time execution such as with Simulink® Simulation Data Inspector, you can hence choose SSDs with up to 256 GB of size for data logging.
