IO393: FPGA I/O module with 14 digital I/O lines and 6 differential RS-422/RS-485 I/O lines for Simulink Real-Time

IO393

Configurable I/O Module

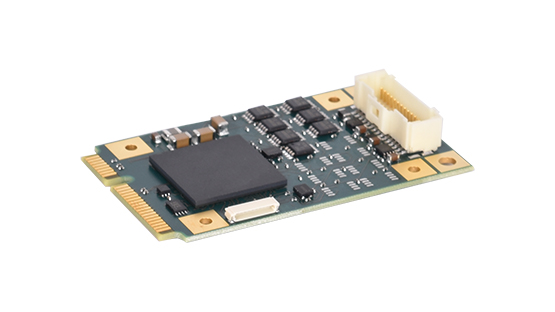

The IO393 I/O module is a mPCIe-compatible, configurable I/O module with 50k logic cells, 14 ESD-protected TTL I/O lines, 6 differential, ESD-protected RS422/RS485 I/O lines and a Xilinx^® Artix^®-7 chip. All the I/O lines are individually programmable as input or output.

The IO393 I/O module also has a basic heatsink to facilitate thermal management. The heatsink can be used to install additional cooling solutions like passive or active heatsinks or to provide a thermal connection to an enclosure.

This I/O module is ideal for closed-loop controls and hardware-in-the-loop (HIL) simulations using MATLAB^® and Simulink.

Key Features

14 x ESD-protected TTL I/O lines with pull-resistors. Voltage levels of 3.3V, 5V or ground, and input/output directions that are software configurable by I/O line
6 x differential, ESD-protected RS-422/RS-485 I/O lines with a 120 Ω termination resistor
Configuration of the I/O module using Simulink blocks from the Speedgoat I/O Blockset library as part of the Simulink Real-Time™ workflow

Physical
Form factor	mPCIe
Power requirements	+3.3Vaux: 650 mA typical
Bus	PCI Express
Connectors	Digital 1: 17-pin M12 male Cable connector: Phoenix Contact M12 17-pos female connector Board connector: Phoenix Contact part no. 1442078 Digital 2: 17-pin M12 female Cable connector: Phoenix Contact M12 17-pos male connector Board connector: Phoenix Contact part no. 1442081
Environmental
Operating temperature	-40°C to +85°C
Relative humidity	5 to 95%, non-condensing
Programmable FPGA
FPGA chip	Xilinx Artix-7 XC7A50T
Logic cells	50k
Block RAM (Kb)	2700
DSP Slice	120
I/O
Digital	14 x ESD-protected TTL I/O lines with pull-resistors. Voltage levels of 3.3V, 5V or ground, and input/output directions that are software configurable by I/O line 6 x differential, ESD-protected RS-422/RS-485 I/O lines with a 120 Ω termination resistor
Reliability
Mean time between failures (MTBF)^*	987.000 hours

MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.

Item ID	Product Name	Components
2A393X	IO393	1 x IO393 I/O module 2x17-pin male M12t o 17-pin female M12 Cable, (3ft/0.91 m) 1x 2-way 17-Pin M12 Terminal Board Driver block library for Simulink Real-Time™ Simulink test models Comprehensive documentation and Simulink example models Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

7 = Unit real-time target machine
8 = Baseline real-time target machine

Pricing information
We do not publish pricing information on our website. Upon request by e-mail or phone, we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you contact us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
