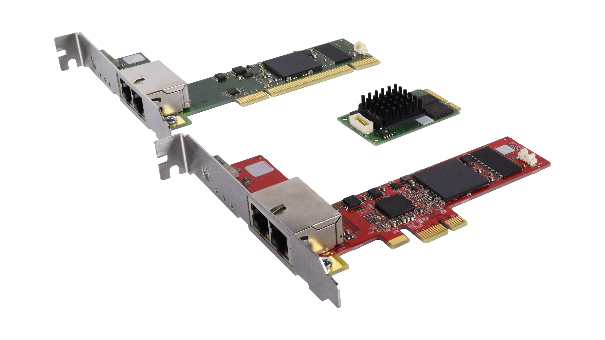

IO754: Modbus TCP Server I/O Module

Modbus TCP Server I/O module, with Simulink® driver blocks

The IO754 I/O module is a Modbus TCP module to connect real-time target machines to external industrial devices.

The IO754 handles the complete data exchange between the connected Modbus TCP client and the real-time application. The data exchange is processed via a dual-port memory. The module acts as one Modbus TCP server  exclusively.

This I/O module is ideal for rapid control prototyping of devices in industrial automation plants such as motor controllers, sensors, I/O stations, and robots. Furthermmore, the IO754 can be used to perform hardware-in-the-loop (HIL) simulations for PLC testing, virtual commissioning, and factory acceptance tests using MATLAB® and Simulink®.

The IO754 I/O module is fully compatible with the Simulink® Real-Time™ workflow. The extensive Simulink® Real-Time™ driver blockset offers comprehensive functionality, and firmware updates are easily available, as the Setup driver block downloads microcontroller firmware each time a target application is initialized.

Key Features

  • 2x 10BASE-T/100BASE-TX isolated, auto-crossover function Ethernet connectors enable easy network integration
  • Easy register definition directly in Simulink®
  • DMA enables fast data exchange on PCI bus

Physical
Form factor PCI/PCIe/mPCIe
Power requirements 650 mA @ +3.3 V DC
Bus 32 bit/33 MHz, Revision 3 of PMC specification, P1386.1
Connectors 2x RJ45 socket
Environmental
Operating temperature 0 °C to +70 °C (PCI, mPCIe)
0 °C to +55 °C (PCIe)*
Certification  CE
I/O Access

TCP port 502
Modbus function codes 1, 2, 3, 4, 5, 6, 15, 16 supported
7, 23, 43 on demand
Maximum number of coils/registers per telegram  125 (FC3, FC4)
123 (FC16)
2000 (FC1, FC2)
1968 (FC15)
Maximum number of input bytes  5760 (I/O Mode)
65536 (Message Mode)
Maximum number of output bytes  5760 (I/O Mode)
65536 (Message Mode)
Fragmentation  Supported
Baud rate  10 and 100 MBit/s
Data transport layer  Ethernet II, IEEE 802.3
* Special hardware version is available which supports operating temperatures from 0 °C to +70 °C
Item ID Product Name Components
2X754* IO754
  • 1 x IO754 I/O module
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • A = Performance real-time target machine (PCI)
  • B = Performance real-time target machine (PCIe)
  • C = Mobile, Baseline and Unit real-time target machines (mPCIe)
