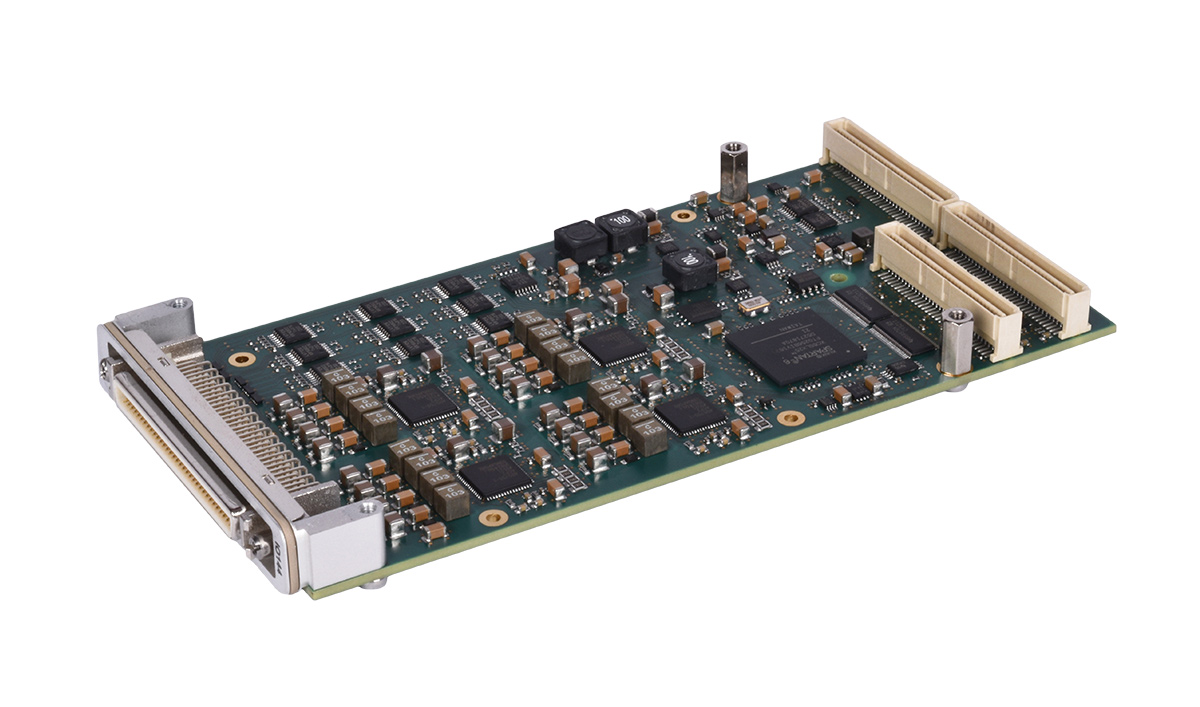

IO144: Simultaneous Sampling 16-bit Analog Output Module

Fast simultaneous sampling 16-bit analog voltage/current output module, digital I/O, and Simulink driver blocks

As each analog output channel has its own dedicated D/A converter, signals are sampled simultaneously and the conversion time is constant. The I/O module can also be connected by trigger lines to additional I/O modules to synchronously sample and convert analog input or output channels across the different modules. This I/O module is ideal for closed-loop controls and HIL using MATLAB and Simulink.

Analog Outputs

  • 16 single-ended
  • current or voltage
  • Simultaneous update
  • 16-bit resolution
  • 20 mA current limit
  • 24 µs settling time
  • Software selectable 0-20 mA, 4-20 mA, 0-24 mA, ±5 V, ±10 V, 0-5 V, 0-10 V output range (individually selectable)
  • Simulink Real-Time analog output driver block

Digital I/O

  • 20 digital I/O
  • Tri-state 3.3 V/5 V-tolerant
  • Individually configurable as input or output

Physical
Form factor PMC
PCI bus 32bit/33MHz, Revision 3 of PMC specification, P1386.1
Connector 68-pin MDR
Connector: 3M N10268-52E2PC
Cable supplied: MDR68-SCSI3, 6ft, molded black, round
Terminal board: 68 terminal with SCSI3
Environmental
Operating temperature -40°C to +85°C
Relative humidity 5 to 95%, non-condensing
Analog outputs
Number of outputs 16 single-ended
Output signal type Current/Voltage
D/A resolution 16-bit
Voltage range Software selectable 0-20 mA, 4-20 mA, 0-24 mA, ±5 V, ±10 V, 0-5 V, 0-10 V (individually selectable)
Settling time 24 µs
Digital I/O
Number of digital channels 20
Signal type

Tri-state 3.3V/5V-tolerant
Individually configurable as input or output

Protection

± 15kV ESD protection

Reliability
Mean time between failures (MTBF)* 283,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2A144X IO144
  • IO144 with 16 single-ended analog current/voltage outputs and 20 digital I/O
  • Shielded round 68-pin MDR to 68-pin SCSI-3 cable, 1.82m (6ft) long
  • 68-way terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time
  • Installation into real-time target machine


Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
