IEC 61850 MMS Client: Simulink Driver Blocks for IEC 61850 Communication

IEC 61850 MMS Client

Simulink Driver Blocks for IEC 61850 Communication

The IEC 61850 MMS Client blocks allow you to set up communication with intelligent electronic devices (IEDs) in the power systems automation field.

The MMS Client blocks exchange data via the Manufacturing Message Specification (MMS) or the GOOSE protocol with IEDs to enable emulation of SCADA/HMI or other control devices.

These Simulink blocks are ideal for hardware-in-the-loop simulations using MATLAB^® and Simulink.

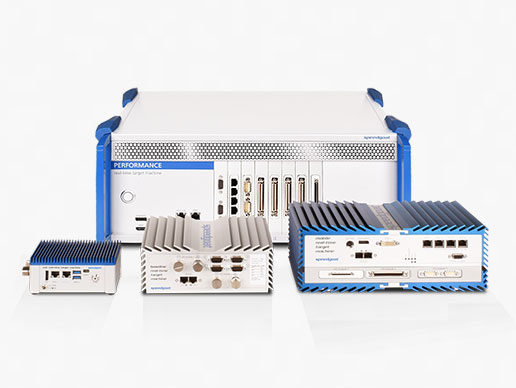

Native MMS and GOOSE communication is supported both on the Ethernet interfaces of the Speedgoat real-time target machine and over Speedgoat Ethernet I/O modules.

Key Features

Request the data model structure from IEDs and easily browse through the model structure
Asynchronous connections to servers for data exchanges, saving computing time for real-time tasks
Use direct control to operate on data objects
Multiple client stations can run on one Speedgoat real-time target machine, communicating either with IEDs in the same model or external IEDs

I/O Access
Communication standard	Implementation according to the IEC 61850 Code Components
Communication protocols	MMS, GOOSE and Sampled Values
Number of client stations	Multiple Ethernet interfaces can be fitted to a target machine Each Ethernet interface can be connected to a different IEC 61850 network One Ethernet interface can represent multiple clients through IP aliasing
Network layers	MMS via TCP/IP, GOOSE & SV via OSI (layer 2)

MMS (Manufacturing Message Specification)
Data handling	Request data from or send data to the IED
Supported data types	Boolean, Int8, Uint8, Int16, Uint16, Int32, Uint32, Strings (as uint8 vectors \| ASCII or Unicode)
Data model	Request the data model from the IED directly through the block mask and browse through the model structure to select data attributes
Direct control	Operate on data objects using direct control

GOOSE (Generic Object Oriented Substation Event)
Broadcast	Broadcast GOOSE messages to a destination MAC address
GOOSE App ID	Define an App-ID to filter messages on the same MAC address
VLAN ID & VLAN priority	Change the VLAN parameters
Base interval	Configurable base interval
Data types	Int8, Uint32, Double, Boolean

SV (Sampled Values)
Broadcast	Broadcast SV messages to a destination MAC address
SV App ID	Define an App-ID to filter messages on the same MAC address
VLAN ID & VLAN priority	Change the VLAN parameters
Application Service Data Unit (ASDU) name	Configure the ASDU name for the publisher
Data types	Int8, Uint32, Double

Item ID	Product Name	Components
2A728	IEC 61850 Client/Server Runtime License	1x IEC 61850 Client Runtime License 1x IEC 61850 Server Runtime License Driver block library for Simulink Real-Time Comprehensive documentation and Simulink example models

Compatible I/O modules

Item ID	Product Name	Components
2A710	IO710-10 Ethernet Module	1 Ethernet port
2A715 or 2B715	IO710-10 Ethernet Module	4 Ethernet ports
2A791	IO791 Ethernet Module	2 Ethernet ports

Pricing information
We do not publish pricing information on our website. Upon request by e-mail or phone, we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you contact us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
