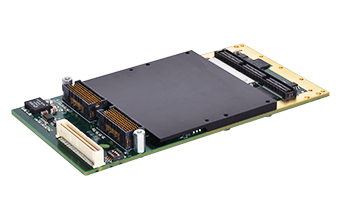

IO332

Configurable I/O Module and Simulink-Programmable FPGA I/O Module

The IO332 is a FPGA I/O module capable of low-latency connectivity and high-frequency closed-loop sample times.
The I/O module features a high-speed memory, 8 multi-gigabit transceivers (MGT), a PCIe interface and a FPGA chip with 200k logic cells. Front and rear plug-ins determine the analog and digital I/O functionality available.
This I/O module comes as a Simulink-programmable or as a configurable FPGA.

Key Features

  • Closed-loop sample rates of up to 10 MHz
  • High-frequency acquisition and signal generation
  • Analog and digital inputs and outputs
  • High-speed communication protocols
  • Simulink-programmable FPGA workflow to use HDL Coder™ and Simulink Real-Time™ supported by the Speedgoat HDL Coder Integration Package
  • Configurable FPGA workflow for Simulink Real-Time supported by Speedgoat custom implementation bitstreams and the Speedgoat Library






Physical
Form factor XMC
Power requirements 3.3V (±5%): 6.9W typical
12V (±5%): 1.8W typical
3.3V AUX (±5%): 57µW typical
Bus PCI Express x4 Link (Base Specification 2.1)
Connectors XMC connector for rear plug-in
AXM connector for front plug-in
Environmental
Operating temperature -40°C to +85°C
Relative humidity 5 to 95%, non-condensing
Radiated field immunity (RFI) Complies with IEC61000-4-3 class A
Electromagnetic interference immunity (EMI) Complies with IEC61000-4-6 class A
Electric fast transient immunity (EFT) Complies with IEC61000-4-4 class A
Radiated emissions Complies with CISPR 16-2-3 class A
FPGA
FPGA chip Xilinx Artix-7
Speedgoat product name IO332-200k
Logic cells 215360
CLB flip-flops 269200
DSP Slices 740
Block RAM blocks 365
Block RAM 13140 Kb
GTP Transceivers 16
MGT GTP Transceivers (6.6 Gb/s Max Rate)
GTP Transceivers (6.6 Gb/s Max Rate) 8 MGT on PCIe Edge Connector
Inter-module communication 8 MGT on XMC P16 Connector

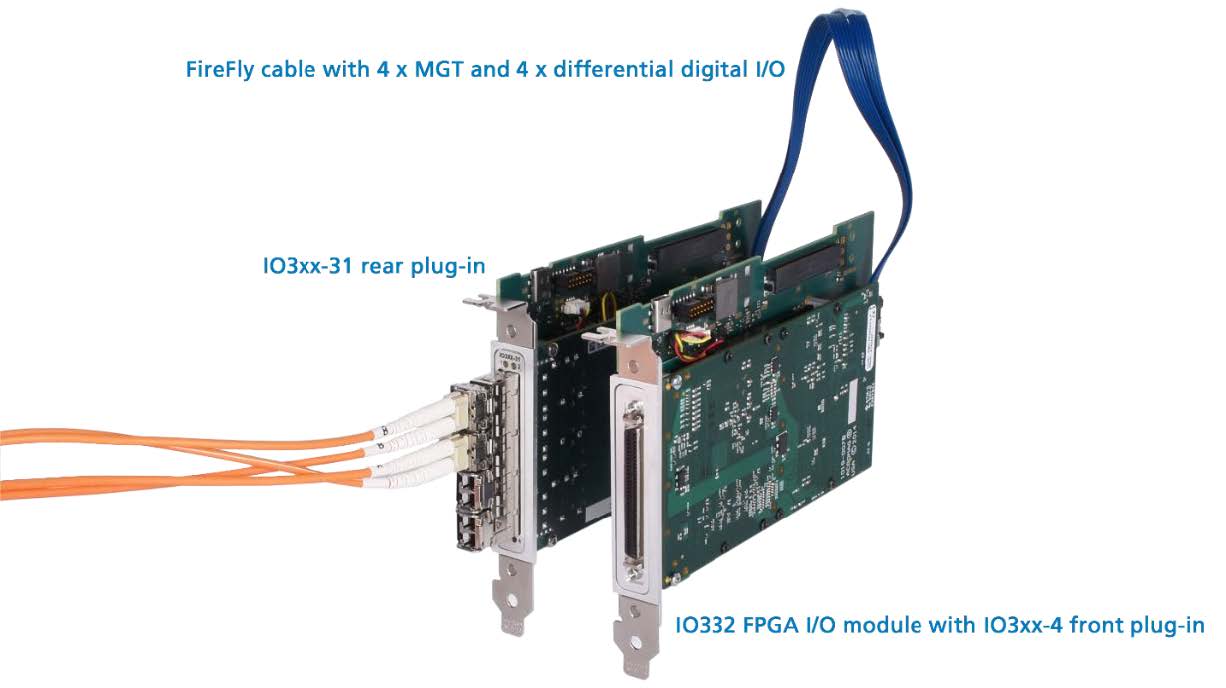

Inter-Module Communication Concept
IO332 - Product Brief v1
Plug-In Concept
io332-31_layered2 copy
Front Plug-Ins
IO332-1-LV 64x digital LVCMOS (2.5 V)/ LVTTL (3.3 V) I/O lines
IO332-2 30x RS485 (RS-422 compliant) I/O lines
IO332-3 16x CMOS (5 V) and 22 RS-485 (RS-422 compliant) I/O lines
IO332-4 30x LVDS I/O lines
IO332-6 16x 16-bit 500 kHz ADCs, 8 x 16-bit DAs with 10 μs settling time, and 16x digital TTL I/O lines
Rear Plug-Ins
IO332-21 56x 3.3 V/5 V TTL I/O lines
IO332-22 24x 3.3 V/5 V TTL I/O lines and 32x RS422/RS485 I/O lines
IO332-32 Signal-conditioning I/O module provides access to 4x MGT I/O lines at the front with 4x SFP+ cages
Digital I/O
XMC P16 4 differential digital I/O lines configurable with 2.5 V standard for machine internal synchronization or communication





Item ID Product Name Components
2A332X* IO332-200K
  • 1x IO332 I/O module with 200k logic cells
  • Driver block library for Simulink Real-Time
  • Simulink test models
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
Front Plug-Ins
2Q332X IO332-1-LV
  • 1x IO33X-1-LV
  • 1x 6 ft/1.82 m shielded round cable featuring a 68-pin male SCSI3 connector on both ends
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation onto the IO332 I/O module
2N332X IO332-2
  • 1x IO33X-2
  • 1x 6 ft/1.82 m shielded round cable featuring a 68-pin male SCSI3 connector on both ends
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation onto the IO332 I/O module
2O332X IO332-3
  • 1x IO33X-3
  • 1x 6 ft/1.82 m shielded round cable featuring a 68-pin male SCSI3 connector on both ends
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation onto the IO332 I/O module
2D332X IO332-4
  • 1x IO33X-4
  • 1x 6 ft/1.82 m shielded round cable featuring a 68-pin male SCSI3 connector on both ends
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation onto the IO332 I/O module
2F332X IO332-6
  • 1x IO33X-6
  • 1x 6.7 ft/2 m round cable featuring a 68-pin male VHDCI connector to a 68-pin male SCSI3 connector
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation onto the IO332 I/O module
Rear Plug-Ins
2I332X IO332-21
  • 1x IO33X-21
  • 1x 6 ft/1.82 m shielded and twisted round cable featuring a 68-pin male SCSI3 connector to a 68-pin male MDR connector
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation next to the IO332 FPGA I/O module

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.


IO332 Programmable FPGA I/O module

Included in the Delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
