Reference Example: E-Motor Emulation for Power HIL Inverter Testing

Accelerate testing of motor drives and their controllers with power hardware-in-the-loop (HIL) testing.

Learn How to

Set up a power hardware-in-the-loop (HIL) test system for inverter testing.

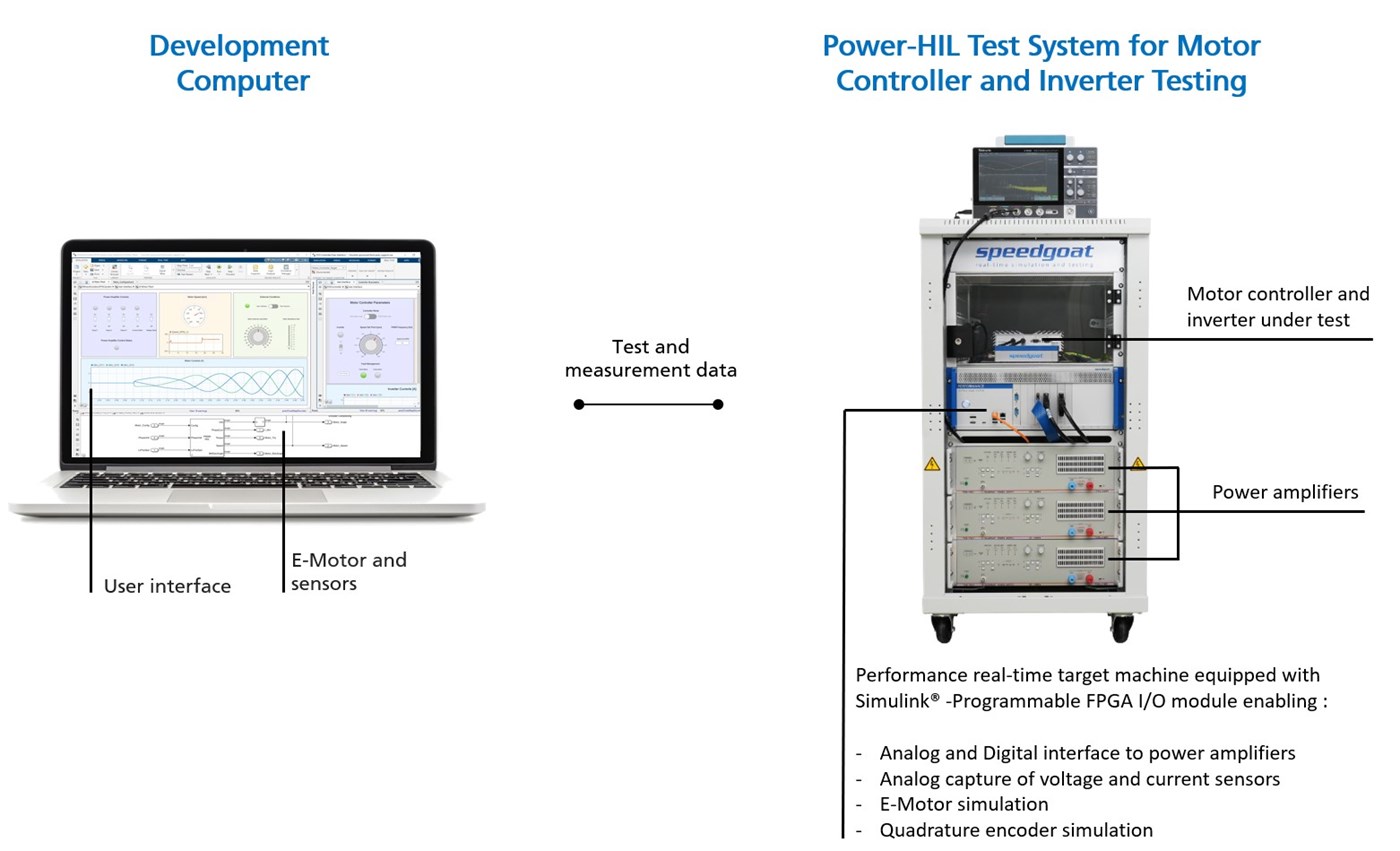

Emulate electric motors, including sensor encoding, current emulation, and an interface to power amplifiers on Simulink®-programmable FPGAs.
Acquire real motor data to validate the motor emulation model.
Test the inverter components—both the controller and power electronics—under realistic conditions, including currents, loads, and faults.
