Reference Example: Controller HIL Testing of Power Factor Correction Converter search search close

Accelerate testing of embedded AC/DC power converter controllers by simulating a Power Factor Correction (PFC) converter as hardware-in-the-loop
Download models (login required) Contact Sales

Learn How to

  • Simulate the behavior of a PFC converter including its switching dynamics and faults in deterministic real-time using a digital twin of the plant.
  • Improve FPGA runtime-efficiency using fixed-point design.
  • Set up a hardware-in-the-loop (HIL) test system for testing power converter controllers.
  • Use an integrated workflow from controls design to testing and verification.
PFC converter modeled in Simscape™ Electrical™

PFC converter modeled in Simscape™ Electrical™

PFC converter controller model

PFC converter controller model

HIL simulation of PFC converter

HIL simulation of PFC converter

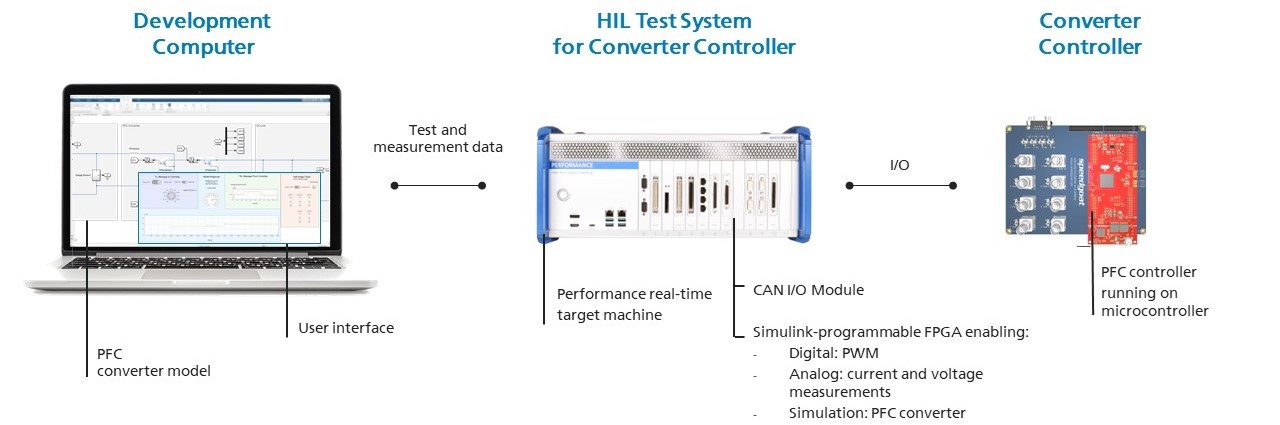

Test System Configuration

Product Highlights

Speedgoat Products

MathWorks® Products

Third-Party Products
