Reference Example: FEM-Based Electric Motor Simulation for Controller HIL Testing

Integrate finite element method based motor models into hardware-in-the-loop simulations for controller validation

Request free workflow demo Contact Sales

Learn How to

Import high-fidelity motor models from finite element tools (FEM) tools such as JMAG-RT, Ansys Maxwell, and Ansys Motor-CAD into Simulink^® or Simscape™

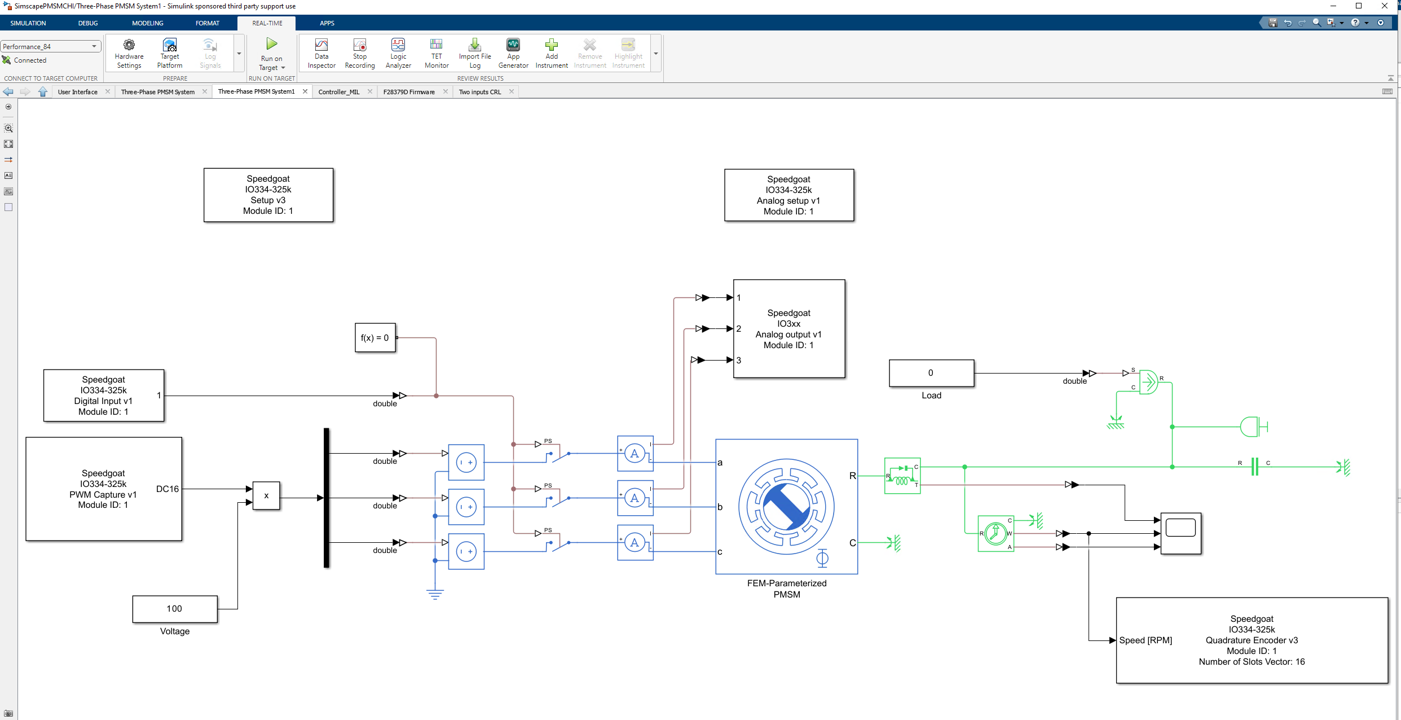

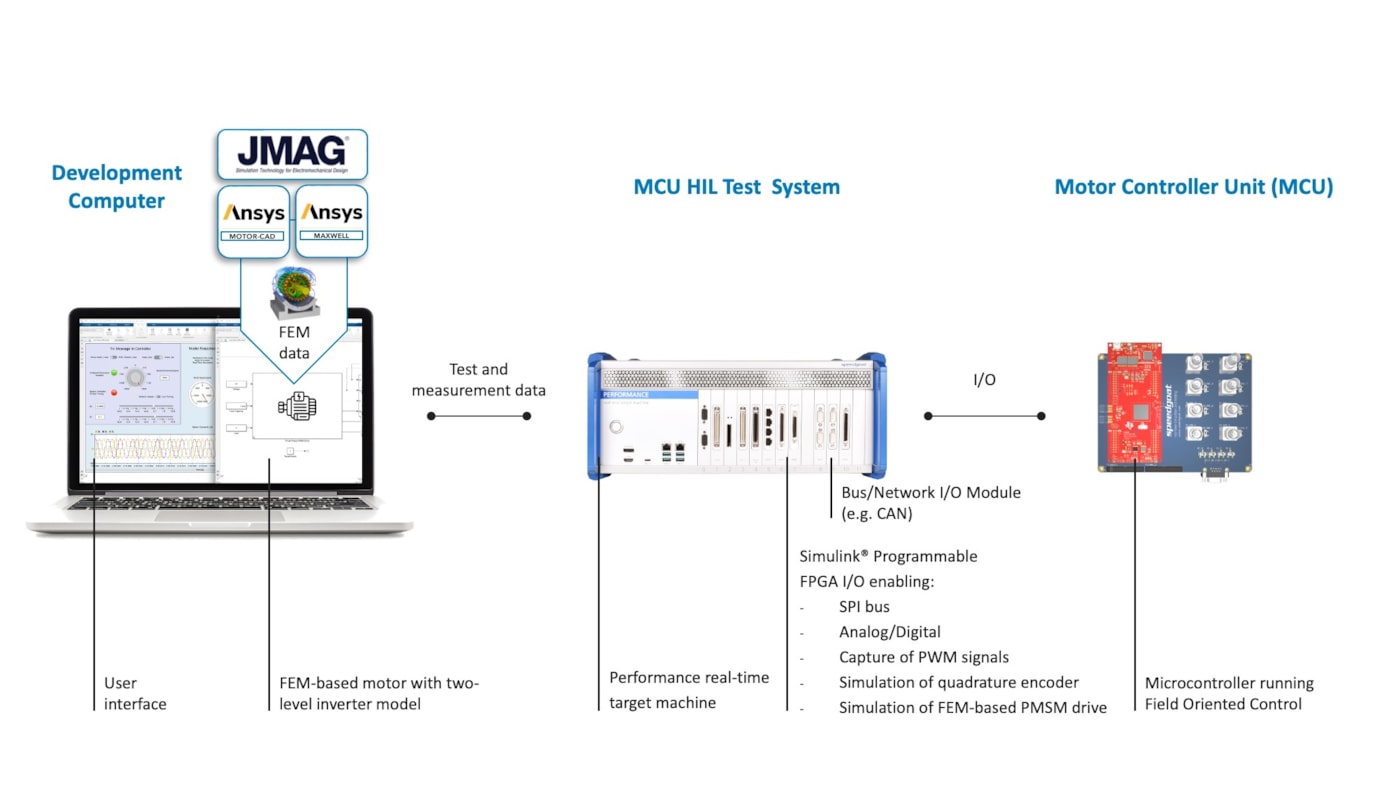

Integrate FEM-based motor models with a full-switching inverter for closed-loop controller hardware-in-the-loop (HIL) testing
Deploy motor and drive models to multicore CPUs and single or interconnected FPGAs

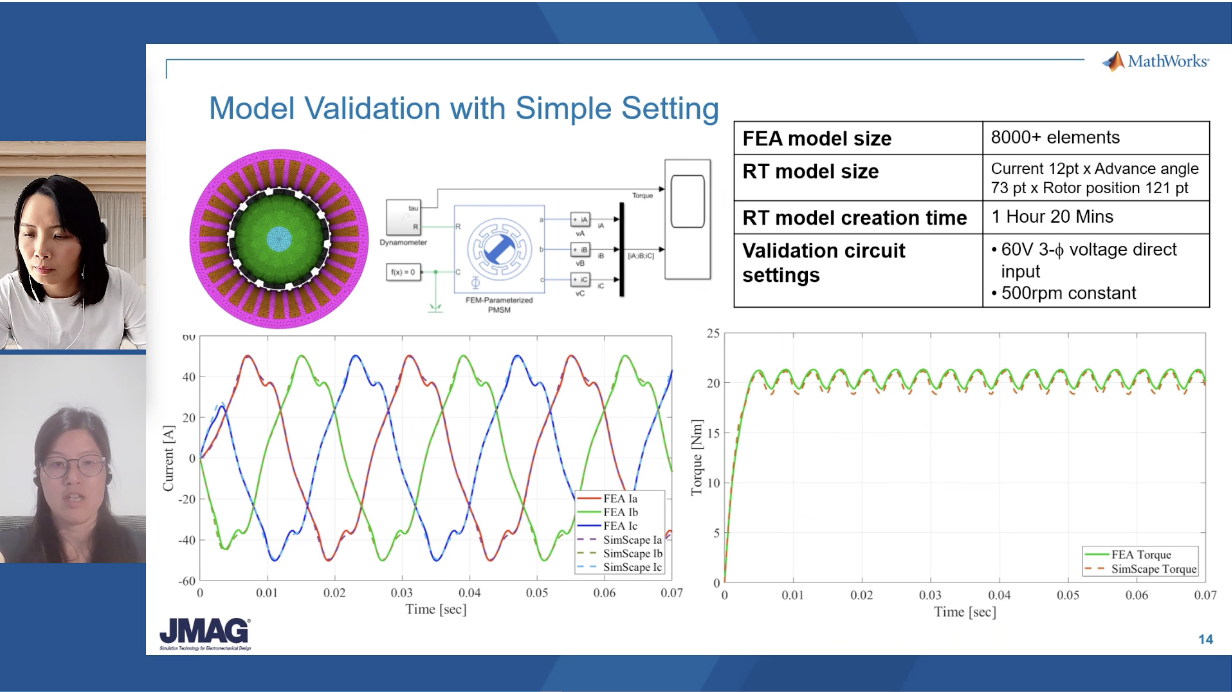

Analyze torque and current ripple in real-time HIL with saturation and spatial harmonics effects

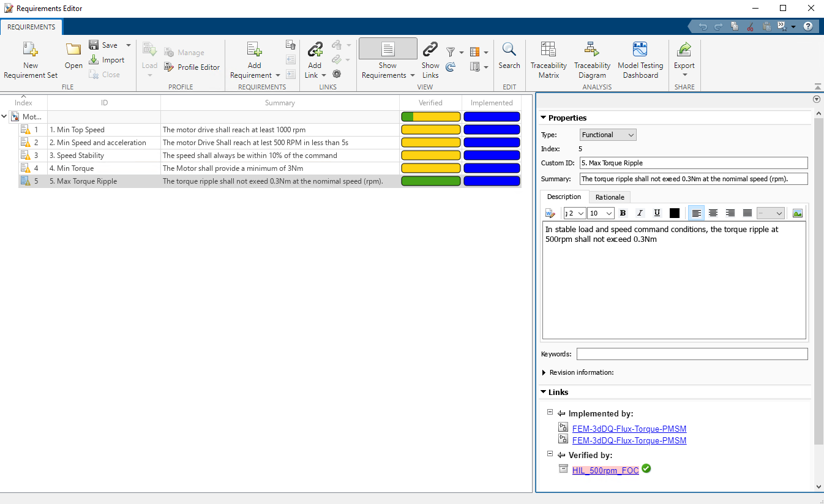

Automate controller HIL testing across operating points, edge cases, and fault scenarios
