IO712: Gigabit Ethernet I/O Module

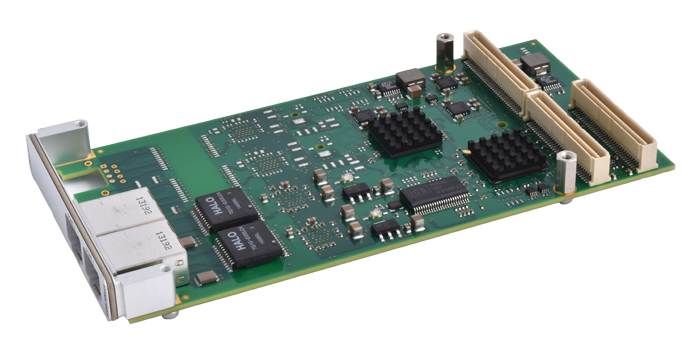

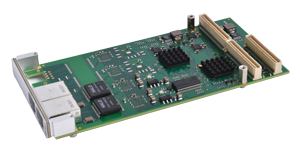

Gigabit Ethernet I/O module with 2 ports

The I/O module provides support for the following protocols:

      • EtherCAT Master (MATLAB R2018a and newer)
      • Real-time UDP (MATLAB R2018a and newer)
      • Raw Ethernet (MATLAB R2018a to MATLAB R2020a inclusive)
      • PTP IEEE-1588 (MATLAB R2018a to MATLAB R2020a inclusive)
      • XCP master for bypassing (MATLAB R2018a and newer)
      • TCP/IP (MATLAB R2018a and newer)

Key Features

      • Compatible with Gigabit Ethernet, Fast Ethernet and Ethernet
      • PCI 3.0 (up to 66 MHz) and PCIe 2.0a (up to 133 MHz) compliant
      • 10Base-T/100Base-TX/1000Base-T rate with auto-negotiation
      • 2 Intel™ 82574IT Gigabit Ethernet controllers



Physical
Form factor PMC
Power requirements  1700 mA max @ +5 V DC
Bus  PCI 3.0 (up to 66 MHz) and PCIe 2.0a (up to 133 MHz)
Connectors  RJ-45
Environmental
Operating temperature  -40 °C to +85 °C
Relative humidity  5 % - 95 %, non-condensing
Certification  CE, RoHS
Reliability
Mean time between failures (MTBF)* 359,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
20712X IO712
  • 1 x IO712
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 6 = Performance real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in the Delivery

  • I/O module installed into real-time target machine
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
