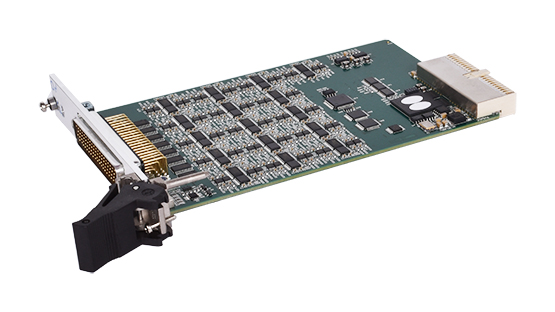

IO975: Thermocouple Simulation I/O Module

Accurate low-voltage source module capable of simulating up to 32 thermocouples, with Simulink® driver blocks

The IO975 I/O module is a low voltage analog output module and an ideal solution for simulating most thermocouple types and performing ECU testing. Each channel supports accurate output voltages up to +/-100 mV and resolutions down to 0.7 uV, to best meet your applications.

The isolation from ground and the two wire outputs ensure accurate thermocouple simulation even in the presence of common mode voltages in the system. This module also features independent cold junction connections allowing it to be connected to multiple references.

The IO975 is available with accurate 8, 16, 24 or 32 isolated two-wire output channels, and can be directly connected to the thermocouple measurement system. No calibration is required.

Key features

  • 8, 16, 24 or 32 low-voltage source channels, ideal for thermocouple simulation
  • ±20 mV (0.7 uV resolution), ±50 mV (1.7 uV resolution) ±100 mV (3.3 uV resolution) output voltage ranges
  • Two-wire output for each channel (Vout – Vcold)
  • Independently isolated channels




Physical
Form factor PXI
Power requirements

270 mA @ +3.3 V DC
1.4 A @ +5 V DC

Bus 32 bit/33 MHz
Connectors 78-pin Male D-Type Connector
Environmental
Operating temperature 0 °C to +55 °C
Relative humidity Up to 90 %, non-condensing
Thermocouple
Number of channels 8, 16, 24 or 32
Output voltage range

+/-20 mV, +/-50 mV, +/-100mV, software-selectable
For the 32-channel version: software selectable in groups of 4
For the 24-channel version: software selectable in groups of 3
For the 16-channel version: software selectable in groups of 2
For the 8-channel version: software selectable for each channel

Resolution

0.7 uV nominal (+/-20 mV range)
1.7 uV nominal (+/-50 mV range)
3.3 uV nominal (+/-100 mV range)

Accuracy*

0.1% ± 5 uV (+/-20 mV range)
0.1% ± 10 uV (+/-50 mV range)
0.1% ± 15 uV (+/-100 mV range)
*To within ±10 °C of the calibration temperature (factory calibrated at 21°C)

Channel isolation from ground 100 V
Output resistance 2.6 Ω typical
Output connections Two-wire output for each channel (Vo to Vcold)





Item ID Product Name Components
2A975X* IO975-MV/TC-8
  • 1x IO975 I/O module, 8 channels
  • 1x 78-Pin Female D-Sub to Thermocouple Plugs
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine
2B975X IO975-MV/TC-16
  • 1x IO975 I/O module, 16 channels
  • 1x 78-Pin Female D-Sub to Thermocouple Plugs
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine
2C975X IO975-MV/TC-24
  • 1x IO975 I/O module, 24 channels
  • 1x 78-Pin Female D-Sub to Thermocouple Plugs
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine
2D975X IO975-MV/TC-32
  • 1x IO975 I/O module, 32 channels
  • 1x 78-Pin Female D-Sub to Thermocouple Plugs
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 6 = Performance real-time target machine

Pricing information
We do not publish pricing information on our website. Upon request by e-mail or phone, we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you contact us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
