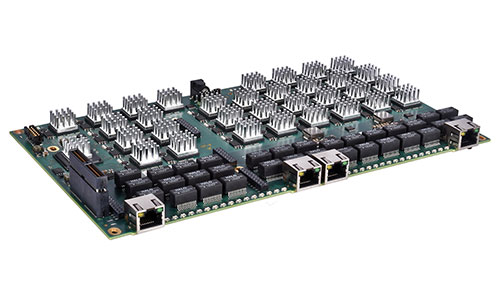

IO756-32

32-Node Simulator I/O Module for EtherNet/IP

The IO756-32 is an EtherNet/IP adapter module that empowers users to simulate large-scale industrial installations, infrastructure and maritime vehicles; for example, production plants, ships, wind farms, solar parks, power grids, tunnels and train networks.

The module physically emulates a high number of real-time capable EtherNet/IP adapters that communicate with the remote EtherNet/IP scanner as in a real industrial plant. Each adapter is represented by an independent network transceiver, ensuring short response times.

The IO756-32 is ideal for hardware-in-the-loop (HIL) simulations using MATLAB® and Simulink®. It allows manufacturers of industrial systems and equipment to test plant controllers and realize virtual commissioning with digital twins: manufacturers can implement the plant behavior, operation modes and states in Simulink, add IO756-32 driver blocks to exchange data with the plant controller and use Simulink Test™ for error injection, automated testing and test reporting.

Key Features

  • Simulation of 32 EtherNet/IP adapters per module and up to 128 adapters per machine
  • 2 separate linear networks with 16 nodes
  • Simulates a vast range of EtherNet/IP adapters from all vendors
  • Cyclic data exchange of up to 504 bytes with scanner devices via the EtherNet/IP protocol

Physical
Form factor Speedgoat proprietary for Mobile real-time target machine
Power requirements 55W
Electrical interface PCI Express
Connectors 4x RJ45 socket
Protocol chip 32 Hilscher netX 52 controlled via dual-port memory
Environmental
Operating temperature -40 °C to +85 °C
Certification  5 to 95 %, non-condensing
I/O Access

Maximum number of input bytes  504
Maximum number of output bytes  504
I/O connection types (implicit) Exclusive owner
Listen only
Input only
I/O connection trigger types Cyclic
Application triggered
Change of state
Minimum cycle time  1 ms
Implicit messaging Supported
Explicit messaging On demand
Implicit message connections 5
Explicit message connections 8
Number of assembly instances 10 and 100 MBit/s
Baud rate  10 and 100 MBit/s
Data transport layer  Ethernet II, IEEE 802.3
Reliability
Mean time between failures (MTBF)* 159,000 hours
* MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2. Environment GB 20 °C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
** Custom firmware is available supporting more sub-modules and application relations
Item ID Product Name Components
2Z756* IO756-32 EtherNet/IP adapter
  • 1 x IO756-32 I/O module with 32x EtherNet/IP adapter nodes
  • Driver block library for Simulink Real-Time
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



IO752-32: 32-Node Simulator I/O Module for PROFINET

Included in the Delivery

  • I/O module installed into real-time target machine
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation

Common Applications

  • Hardware-in-the-loop (HIL) simulation for PLC testing, virtual commissioning and factory acceptance tests
