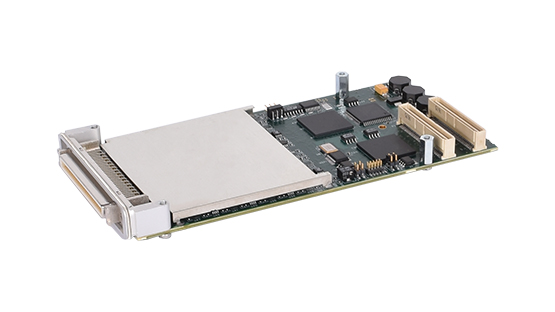

IO106: Fast 16-bit Analog Input Module

Fast 16-bit analog module with 32/16 simultaneous sampling analog input channels and Simulink driver blocks

This I/O module is a high-end analog module with a 16-bit input resolution. As each analog input channel has its own dedicated A/D converter, signals are sampled simultaneously and the conversion time for up to 32 channels is constant (5µs). The I/O module can also be connected by trigger lines to additional IO106 modules to synchronously sample and convert analog input or output channels across the different modules.

Select this very low analog I/O latency module if your application requires high sample rates and needs to acquire a high number of analog signals simultaneously.

Analog Inputs

  • 32 single-ended or 16 differential channels with dedicated A/D converter per channel
  • 16 bit resolution
  • Selectable ±10V, ±5V, ±2.5V, 0-5V, 0-10V input range
Physical
Form factor PMC
Power requirements 4W typical, 6W maximum
PCI bus PCI Specification 2.3, with 66MHz/33MHz, D32 and universal signalling (5/3.3 Volt)
EMI EMI shield on component side
Connector Selectable: 68-way MDR, or 68-way SCSI3 (see Ordering information)
Environmental
Operating temperature 0 to 65°C (extended temperature variants: -40°C to +85°C)
Relative humidity 0 to 80%, non-condensing
Analog inputs (at 25°C)
Configuration 32 single-ended or 16 differential analog inputs
Dedicated A/D converter per channel
Differential inputs Software selectable differential processing of channel pairs
A/D resolution 16 bits (0.0015 percent of FSR)
A/D sample frequency 200KSPS per channel maximum (DMA)
Sampling Mode Simultaneous, 1, 2, 4, 8, 16, or 32 channels
Voltage Ranges Driver configurable as ±10V, ±5V or ±2.5V, 0-10V, or 0-5V
Input impedance 750kOhm typical
Bias current 1µA, maximum (±2.5V range), 4µA, maximum (±10V range)
Crosstalk rejection 85dB, DC-50kHz
Input noise (0.01-50kHz): 0.5mVRMS, typical, all ranges
Input bandwidth (-3dB) DC to 120kHz typical
Overvoltage protection ±40V with power applied, ±25 Volts with power removed
DC accuracy (maximum composite error after autocalibration) ±10V range: ± 1.5mV (midscale accuracy), ± 2.8mV (full scale accuracy)
±5V range: ± 1.4mV (midscale accuracy), ± 2.5mV (full scale accuracy)
±2.5V range: ± 0.9mV (midscale accuracy), ± 1.5mV (full scale accuracy)
0-10V range: ± 1.8mV (midscale accuracy), ± 3.0mV (full scale accuracy)
0-5V range: ± 1.2mV (midscale accuracy), ± 2.7mV (full scale accuracy)
Integral nonlinearity ±0.008 percent FSR (FSR = fullscale range; e.g. 20V on ±10V range)
Differential nonlinearity ±0.004 percent FSR
Reliability
Mean time between failures (MTBF)* 136,530 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2C106X IO106-32/16-MDR
  • 1 x IO106-32/16
  • 1 x shielded round 68-way MDR to SCSI3 cable, 1.82m (6ft) long
  • 1 x 68-way spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2E106X IO106-32/16-SCSI3
  • 1 x IO106-32/16
  • 1 x shielded round 68-way SCSI3 to SCSI3 cable, 1.82m (6ft) long
  • 1 x 68-way spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2X1069 IO106-32/16-ExtTemp
  • Increases temperature range of IO106-32/16 from 0 to +70ºC
    to -40ºC to +85ºC.


Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
