IO107: Fast 16-bit Analog Output Module

Fast 16-bit analog module with 16 differential analog output channels and Simulink® driver blocks

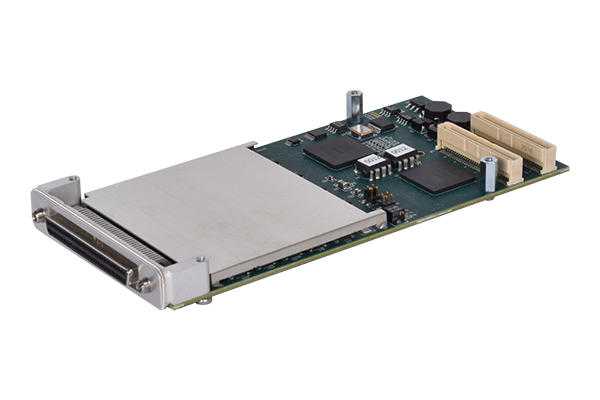

The IO107 module is a dedicated fast, 16-bit analog output module with Simulink® driver blocks.

Each of the 16 output channels has a dedicated D/A converter with an update time of 2.2 μs.

The output coupling of the module can be either differential or single-ended (build option), and the voltage ranges can be ±10 V, ±5 V, ±2.5 V or ±1.25 V, or as a build option ±20 V, ±10 V or ±5 V.

Several of these modules can be interconnected by trigger lines to synchronously update analog output channels across the different modules.

This I/O module is ideal for closed-loop controls and hardware-in-the-loop (HIL) simulations using MATLAB® and Simulink®.

Analog Outputs

  • Up to 16 differential 3-wire, or 2-wire single-ended outputs (build option)
  • Dedicated D/A converter per channel (simultaneous), 16-bit resolution,
  • 2.2 µs update time per channel with DMA (450 kSPS), and 5 µs settling time per channel
  • Software selectable ±10 V, ±5 V, ±2.5 V, ±1.25 V, or ±20 V, ±10 V, ±5 V (build option) output voltage range
  • Auto-calibration of entire analog output section
  • Simulink® Real-Time™ analog output driver blocks
Physical
Form factor PMC
Power requirements 5.5 W typical, 7.5 W maximum
PCI bus PCI D32, 33/66 MHz, specification 2.3
EMI EMI shield on component side
Connector 68-pin SCSI3
Cable connectors: Tyco Electronics
Board connector: Tyco Electronics part no. 5749069-7
Environmental
Operating temperature 0 to 70 °C (extended temperature option: -40 °C to +85 °C)
Relative humidity 0 to 95 %, non-condensing
Analog Output
Number of outputs 16 balanced differential 3-wire, or 2-wire single-ended outputs (build option)
D/A resolution 16 bit (0.0015 percent of FSR)
Max data rate 450 kSPS with DMA
Settling time 5 µs to 0.1 % with no filter
Voltage ranges Software selectable ±10 V, ±5 V, ±2.5 V, ±1.25 V, or ±20 V, ±10 V, ±5 V (build option)
Output protection Withstands sustained short-circuiting to ground
Output resistance 1 Ω maximum
Load current ±3 mA maximum, ±2 mA recommended for minimum crosstalk and line loss
Load capacitance Stable with 0 to 10,000 pF shunt capacitance, all ranges, all loads
Noise 1.3 mV-RMS at 10 Hz-10 MHz
Glitch Impulse ±2.5 V range: 3 nV-s max, ±10 V range: 8 nV-s
DC Accuracy per range (Max error, no-load): ±20 V (range), ±4.2 mV (midscale accuracy), ±7.0 mV (full scale accuracy)
±10 V (range), ±2.4 mV (midscale accuracy), ±3.3 mV (full scale accuracy)
±5 V (range), ±1.7 mV (midscale accuracy), ±2.2 mV (full scale accuracy)
±2.5 V (range): ±1.4 mV (midscale accuracy), ±1.6 mV (full scale accuracy)
±1.25 V (range): ±1.25 mV (midscale accuracy), ±1.4 mV (full scale accuracy)
Output balance 10 mV maximum High/Low unbalance
Bandwidth 300 kHz, typical -3dB
Crosstalk rejection 80 dB minimum, DC - 50kHz
Integral nonlinearity ±0.007 percent of FSR, maximum
Differential nonlinearity ±0.003 percent FSR
Reliability
Mean time between failures (MTBF)* 217,150 hours
*MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2. Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2A107X IO107-DF
  • 1 x IO107 with 16 differential analog outputs
  • ±10 V, ±5 V, ±2.5 V or ±1.25 V output voltage ranges
  • 1 x 68-pin SCSI3 to 68-pin MDR cable, (6 ft/1.82 m)
  • 1 x 68-pin female MDR terminal board
  • Driver block library for Simulink Real-Time™
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
2C107X IO107-DF-HV
  • 1 x IO107 with 16 differential analog outputs
  • ±20 V, ±10 V, or ±5 V output voltage ranges
  • 1 x 68-pin SCSI3 to 68-pin MDR cable, (6 ft/1.82 m)
  • 1 x 68-pin female MDR terminal board
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine
2B107X IO107-SE
  • 1 x IO107 with 16 single-ended analog outputs
  • ±10 V, ±5 V, ±2.5 V or ±1.25 V output voltage ranges
  • 1 x 68-pin SCSI3 to 68-pin MDR cable, (6 ft/1.82 m)
  • 1 x 68-pin female MDR terminal board
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine
201079 IO107-ExtTemp
  • Increases temperature range of IO107 from 0 to +70 ºC
    to -40 ºC to +85 ºC. Available for all IO107 versions

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine


Pricing information
