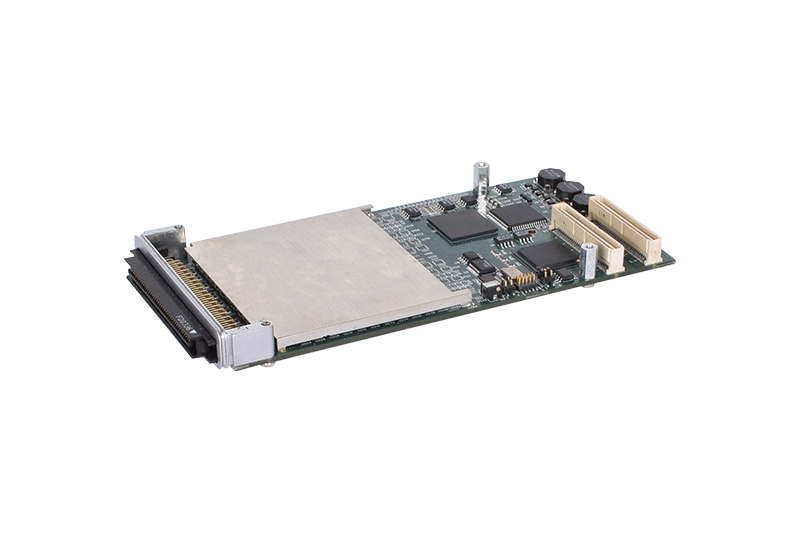

IO112: 16 or 18-bit Analog Input Module

High-resolution 16 or 18-bit simultaneous sampling analog input I/O module with 4, 8, 16, or 32 differential channels, and Simulink® driver blocks

This analog input module samples and digitizes up to 32 input channels simultaneously at rates up to 1 MSPS (million samples per second) per channel. Each channel contains a dedicated successive-approximation (SAR) analog to digital converter (ADC). The sample data is error-corrected and routes to the PCI bus through a 1-MByte FIFO buffer.

Inputs can be sampled in groups of 2, 4, 8, 16, or 32 channels, and the sample clock can be generated from the internal rate generator, or by software or external hardware such as the on-board clock of our FPGA-based I/O modules, which is often required for synchronized PWM.

Input ranges are software-selectable as ±10V or ±5V (fullscale), or as an order option as ±2.5V or ±1.25V (fullscale).

Select this very low latency module if your application requires high resolution and high sample rates to acquire a high number of analog signals simultaneously.

The following variants are available:

I/O module Resolution Sampling mode Voltage/Current Range No. of inputs No. of outputs Other
IO112-4-18 18-bit AD: SM ±10V, ±5V
(option ±2.5V/±1.25V)
4 DF - DMA
IO112-8-18 18-bit AD: SM ±10V, ±5V
(option ±2.5V/±1.25V)
8 DF - DMA
IO112-16-18 18-bit AD: SM ±10V, ±5V
(option ±2.5V/±1.25V)
16 DF - DMA
IO112-32-18 18-bit AD: SM ±10V, ±5V
(option ±2.5V/±1.25V)
32 DF - DMA
IO112-4-16 16-bit AD: SM ±10V, ±5V
(option ±2.5V/±1.25V)
4 DF - DMA
IO112-8-16 16-bit AD: SM ±10V, ±5V
(option ±2.5V/±1.25V)
8 DF - DMA
IO112-16-16 16-bit AD: SM ±10V, ±5V
(option ±2.5V/±1.25V)
16 DF - DMA
IO112-32-16 16-bit AD: SM ±10V, ±5V
(option ±2.5V/±1.25V)
32 DF - DMA
Physical
Form factor PMC
Mechanical Characteristics Height: 13.5 mm (0.53 in)
Depth: 143.75mm (5.66 in)
Width: 74.0 mm (2.91 in)
PCI bus 32-bit, 66/33MHz, Revision 2.3 of PMC/PCI specification
Power requirements +5VDC: 1.5 Amps maximum, 1.3 Amps typical
EMI Integral shield
Connector 80-way P50E80
Cable connector: 3M part no. P50E-080S-EA
Board connector: 3M part no. P50E-080P1-S1-EA
Environmental
Operating temperature 0 to 65°C (extended temperature option: -40°C to +80°C)
Relative humidity 0 to 80%, non-condensing (operating)
Analog inputs (at 25°C)
Number of inputs 4, 8, 16, or 32 (order options)
Resolution 16 or 18-bit (order options)
Sampling mode Simultaneous (dedicated SAR ADC)
Input types True differential high-impedance minimizing system interference
A/D sample frequency 1MSPS per channel maximum (DMA)
Input signal type Voltage (non-isolated)
Voltage ranges
(software selectable)
±10V or ±5V.
Low set option (order option): ±2.5V or ±1.25V
DC accuracy
(max. composite error after autocalibration)
Standard:
±10V range: ± 0.4mV (zero-input), ± 0.9mV (fullscale)
±5V range: ± 0.3mV (zero-input), ± 0.6mV (fullscale)

Low range (order option)
±2.5V range: ± 0.2mV (zero-input), ± 0.5mV (fullscale)
±1.25V range: ± 0.2mV (zero-input), ± 0.4mV (fullscale)
Input impedance 2 Megaohms typical, 1 Megaohm line-ground
Bias current 100nA maximum
Crosstalk rejection 85dB, DC-100kHz
Overvoltage protection ± 30V with power applied, ±15V with power removed
Integral nonlinearity ±0.0015 percent FSR (fullscale range)
Differential nonlinearity ±0.0008 percent FSR (fullscale range)
Sample Clock and Sync (trigger) sources Two internal rate generators or external hardware clock and synch I/O for multiboard operation or software clock.
Rate generators Programmable from 1,000,000Hz down to 0.01Hz when cascaded. Each generator divides the local master clock through a 16-bit counter. Standard master clock frequency is 26,000 MHz.
Reliability
Mean time between failures (MTBF)* 570,820 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2A112X IO112-4-18
  • 1 x 18-bit analog module with 4 input channels
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2A1128 IO112-LowVoltageRange
  • ±2.5V or ±1.25V instead of ±10V or ±5V voltage ranges.
2A1129X IO112-4-18-ExtTemp
  • 1 x 18-bit analog module with 4 input channels with extended temperature range -40ºC to +80ºC
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2B112X IO112-8-18
  • 1 x 18-bit analog module with 8 input channels
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2B1128 IO112-LowVoltageRange
  • ±2.5V or ±1.25V instead of ±10V or ±5V volage ranges.
2B1129X IO112-8-18-ExtTemp
  • 1 x 18-bit analog module with 8 input channels with extended temperature range -40ºC to +80ºC
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2C112X IO112-16-18
  • 1 x 18-bit analog module with 16 input channels
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2C1128 IO112-LowVoltageRange
  • ±2.5V or ±1.25V instead of ±10V or ±5V volage ranges.
2C1129X IO112-16-18-ExtTemp
  • 1 x 18-bit analog module with 16 input channels with extended temperature range -40ºC to +80ºC
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2D112X IO112-32-18
  • 1 x 18-bit analog module with 32 input channels
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2D1128 IO112-LowVoltageRange
  • ±2.5V or ±1.25V instead of ±10V or ±5V volage ranges.
2D1129X IO112-32-18-ExtTemp
  • 1 x 18-bit analog module with 32 input channels with extended temperature range -40ºC to +80ºC
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2H112X IO112-4-16
  • 1 x 16-bit analog module with 4 input channels
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2H1128 IO112-LowVoltageRange
  • ±2.5V or ±1.25V instead of ±10V or ±5V volage ranges.
2H1129X IO112-4-18-ExtTemp
  • 1 x 18-bit analog module with 4 input channels with extended temperature range -40ºC to +80ºC
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2J112X IO112-16-16
  • 1 x 16-bit analog module with 16 input channels
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2J1128 IO112-LowVoltageRange
  • ±2.5V or ±1.25V instead of ±10V or ±5V volage ranges.
2J1129X IO112-16-16-ExtTemp
  • 1 x 16-bit analog module with 16 input channels with extended temperature range -40ºC to +80ºC
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2K112X IO112-32-16
  • 1 x 16-bit analog module with 32 input channels
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2K1128 IO112-LowVoltageRange
  • ±2.5V or ±1.25V instead of ±10V or ±5V volage ranges.
2K1129X IO112-32-16-ExtTemp
  • 1 x 16-bit analog module with 32 input channels with extended temperature range -40ºC to +80ºC
  • 1 x shielded round 80-Pin cable, 6 feet / 1.8 m long
  • 1 x 80-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine


Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine


Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
