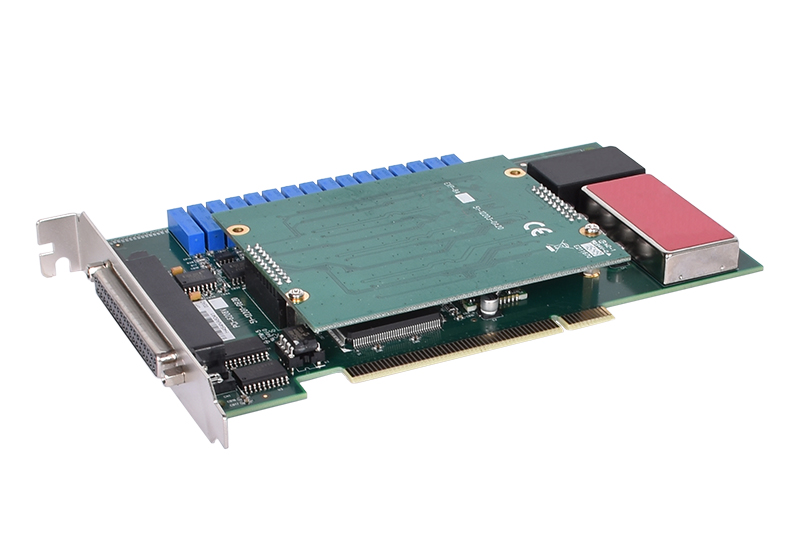

IO114: 15 or 12 bit Analog Module with 8 Current Outputs

15 or 12 bit analog module with 8 current outputs (optionally isolated), 4 digital inputs, 4 digital outputs, and Simulink driver blocks

The IO114 offers 8 x 0-20 mA, 4-20 mA, or 5-25 mA current outputs, 4 digital TTL inputs, and 4 digital TTL outputs.

The following variants are available:

I/O module Resolution Sampling mode Voltage/Current Range No. of inputs No. of outputs Other
IO114-15bit 15-bit DA: SM 0-20 mA, 4-20 mA, 5-25 mA  - 8 DF
not isolated
4 DIO
IO114-12bit 12-bit DA: SM 0-20 mA, 4-20 mA, 5-25 mA  - 8 DF
isolated
4 DIO
The 15-bit variant of this module is not compatible with Performance I/O Expansion.
Physical
Form factor PCI
Power requirements 3W typical, 4W maximum
PCI bus 32bit / 33MHz
Environmental
Operating temperature 0 to 50°C
Relative humidity 5 to 95%, non-condensing
Current Outputs
Configuration 8 current outputs, 0-20 mA, 4-20 mA, 5-25 mA
DA settling time 17 µs typical (20 mA step)
Slew rate 1.3 mA/µs typical
Error ±0.3% typical
Output Initial Status 4 mA (after RESET or POWER-ON)
Digital I/O
Configuration 4 inputs and 4 outputs
Compatibility 5V / TLL
Item ID Product Name Components
2A114X IO114-15bit
  • 1 x IO114-15bit
  • 1 x shielded round 37-way cable, 1.82m (6ft) long
  • 1 x 37-way spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2B114X IO114-12bit
  • 1 x IO114-12bit
  • 1 x shielded round 37-way cable, 1.82m (6ft) long
  • 1 x 37-way spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 6 = Performance real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
