IO205

Galvanically Isolated Digital Output Module

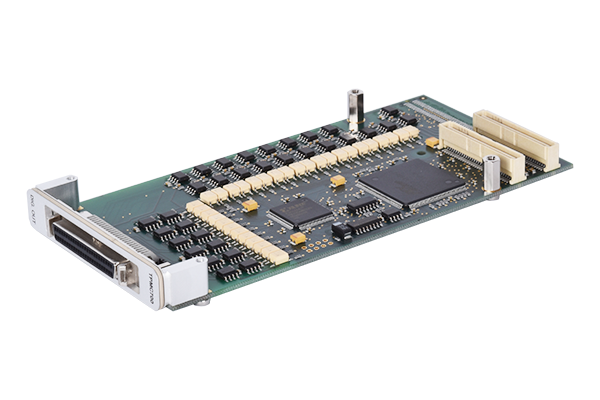

The IO205 I/O module is a digital output module with Simulink® driver blocks.

The 32 digital outputs are available as high-side switches with a 6 V to 48 V output range. All channels are galvanically isolated by optocouplers.

All outputs are protected against short-circuit and thermal overload and can output up to 0.5 A per channel.

This I/O module is ideal for closed-loop controls and hardware-in-the-loop (HIL) simulations using MATLAB®and Simulink®.

Digital Outputs

  • 32 galvanically isolated outputs
  • Up to 6 V to 48 V output range
  • Continuous output current of 0.5 A per channel
  • Simulink Real-Time digital output driver blocks
Physical
Form factor PMC
Power requirements 0.5 W
Electrical Interface PCI 32-bit/33 MHz, Rev. 2.1 compliant
Connector 50-pin male SCSI2
Environmental
Operating temperature -25 to +85°C
Humidity 5 to 95% non-condensing
Digital outputs
Configuration 32 channels
Isolation Optocouplers for galvanic isolation
External supply voltage 6 V DC to 48 V DC, 24 V DC typical
Output Current 0.5 A typical, 0.8 A short circuit, per channel
Output Voltage drop 1.1 V DC typical @0.5 A
Protection Overload, short circuit, GND and VS open wire protection, thermal shutdown
Reliability
Mean time between failures (MTBF)* 310,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
20205X* IO205
  • 1 x IO205
  • 1x 50-pin male SCSI2 to 50-pin male SCSI2 cable, (6 ft/1.82 m)
  • 1x 50-Pin Female SCSI2 Terminal Board
  • Driver block library for Simulink Real-Time™
  • Comprehensive documentation and Simulink example models
  • Installation into real-time target machine
Optional  Accessories
20205N IO205-BNC-Box
  • Aluminum BNC Box for the IO205 I/O module, providing a total 48 BNC connectors to access 32 digital I/O lines and 16 external power supplies.

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
