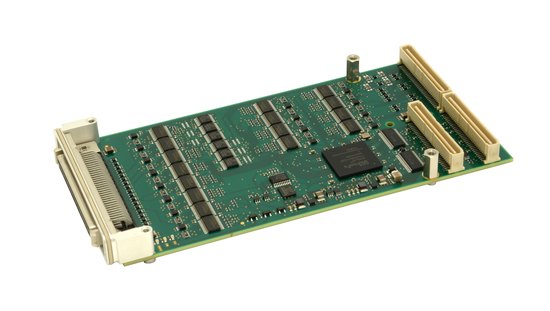

IO207

Digital I/O Module with 128 TTL Channels

The IO207 I/O module is a digital input and output module with Simulink® driver blocks.
The module features 128 TTL channels arranged in 16x 8-bit ports. The direction of the I/O lines is software programmable for each port.

Each port is built up using a TTL bus transceiver and each line is protected against ESD and overvoltage. Software-selectable pull-up/pull-down resistors are also available on all the I/O lines.

Each input can generate an interrupt and all the outputs drive 5 V TTL levels with ±24 mA. In addition, users can read or write all 128 lines synchronously.
This I/O module is ideal for closed-loop controls and hardware-in-the-loop (HIL) simulations using MATLAB® and Simulink.

Digital Inputs/Outputs

  • 128 TTL channels, grouped into 16 x 8-bit ports
  • Each port individually programmable as input or output
Physical
Form factor PMC
Power requirements 230 mA typical @ +5 V DC
Electrical interface 32 bit/33 MHz, Revision 3 of PMC specification, P1386.1
Connectors 68-pin male SCSI3
Cable connectors: Tyco Electronics
Board connector: Tyco Electronics part no. 5749069-7
Environmental
Operating temperature -40 to +85°C
Humidity 5 to 95% non-condensing
Digital Input and Outputs
Channels 128 channels: 64 front and 64 rear (rear channels are routed via external cable to the front of the machine) ports
Configuration Channels are arranged in 16x 8-bit ports. Each of the ports can be configured as input or output
Maximum current ±24 mA
Protection ESD and overvoltage for each channel
Reliability
Mean time between failures (MTBF)* 617,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
20207X* IO207
  • 1x IO207 I/O module
  • 2x 68-pin male SCSI3 to 68-pin male MDR cable, (6 ft/1.82 m)
  • 2x 68-Pin Female MDR Terminal Board
  • Driver block library for Simulink Real-Time
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 6 = Performance real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
