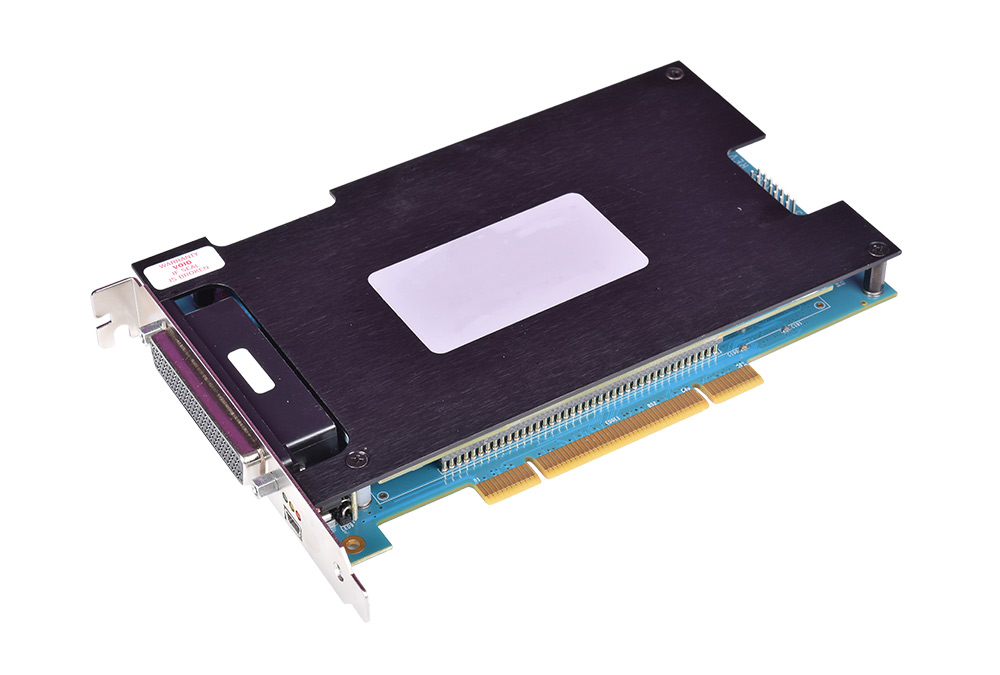

IO421: LVDT/RVDT/Synchro/Resolver I/O module with 3 plug-in slots

A multi-function I/O module with 3 independent plug-in slots to support LVDT/RVDT/Synchro/Resolver.

This I/O module offers support for measurement and simulation of Synchro, Resolver, LVDT and RVDT devices via a selection of plug-in modules.

The following plug-in modules are available:

Plug-in module Functionality
IO421-1 LVDT/RVDT measurement
IO421-2 Synchro/Resolver measurement
IO421-3 LVDT/RVDT simulation
IO421-4 Synchro/Resolver simulation
IO421-5 AC reference signal source
Physical
Form factor PCI (half-size)
Power ±5VDC, ±12VDC
Environmental
Operating temperature 0ºC to +70ºC (extended temperature variants: -40ºC to +85ºC)
Item ID Product Name Components
204216 IO421
  • 1 x IO421 I/O module
  • 1 x shielded round D-sub 78-way to P50E80 cable, 1.82m (6ft) long
  • 1 x 78-way spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
204219 IO421-ExtTemp
  • Increases temperature range of IO421 from 0 to +70ºC
    to -40ºC to +85ºC.
2A4216 IO421-1
  • 1 x IO421-1 I/O submodule
  • Driver block library for Simulink Real-Time™
  • Installation into IO421 base module
2B4216 IO421-2
  • 1 x IO421-2 I/O submodule
  • Driver block library for Simulink Real-Time™
  • Installation into IO421 base module
2C4216 IO421-3
  • 1 x IO421-3 I/O submodule
  • Driver block library for Simulink Real-Time™
  • Installation into IO421 base module
2D4216 IO421-4
  • 1 x IO421-4 I/O submodule
  • Driver block library for Simulink Real-Time™
  • Installation into IO421 base module
2E4216 IO421-5
  • 1 x IO421-5 I/O submodule
  • Driver block library for Simulink Real-Time™
  • Installation into IO421 base module

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
