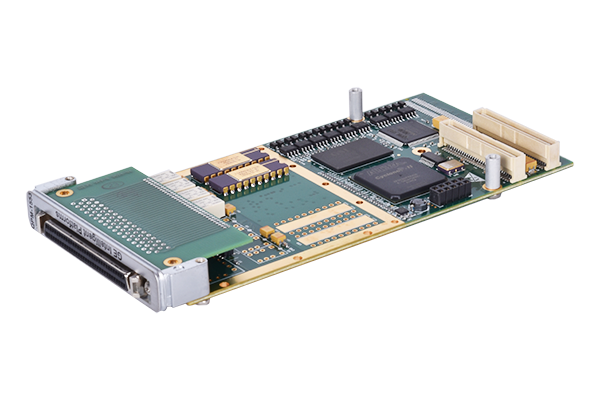

IO672: MIL-STD-1553 I/O Module

High performance MIL-STD-1553 I/O module with Simulink driver blocks

This I/O module is available with single or multi-function interface and one, two or four independent dual-redundant channels.

Variants

I/O module Channels Single/ multi-function
IO672-1-SF 1 single
IO672-1-MF 1 multi
IO672-2-SF 2 single
IO672-2-MF 2 multi
IO672-4-SF 4 single
IO672-4-MF 4 multi

Form factor PMC
RAM 1 MB shared memory (per dual-redundant channel)
Power consumption (four channels, 75% duty cycle) +5VDC: 1010mA (typ.)
+3.3VDC: 230mA (typ.)
5.9W power dissipated on board
Supported Signaling Voltage 5V or 3.3V
Environmental
Operating temperature 0ºC to +70ºC
Operational modes

Single-function Bus controller (BC) or bus monitor (BM) or 31 remote terminals (31RTs)
Multi-function Simultaneous BC, 31RTs, and BM
Connections

Connections
  • Programmable direct or transfomer coupling
  • Input and output triggers
  • Transition cabling to I553 cable jacks included
  • 18 I/O discretes
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2A672X IO672-1-SF
  • 1 x IO672-1-SF
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2A6729 IO672-1-SF-ExtTemp
  • Increases temperature range of IO672-1-SF from 0 to +55ºC
    to -40ºC to +85ºC.
2B672X IO672-1-MF
  • 1 x IO672-1-MF
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2B6729 IO672-1-MF-ExtTemp
  • Increases temperature range of IO672-1-MF from 0 to +55ºC
    to -40ºC to +85ºC.
2C672X IO672-2-SF
  • 1 x IO672-2-SF
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2C6729 IO672-2-SF-ExtTemp
  • Increases temperature range of IO672-2-SF from 0 to +55ºC
    to -40ºC to +85ºC.
2D672X IO672-2-MF
  • 1 x IO672-2-MF
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2D6729 IO672-2-MF-ExtTemp
  • Increases temperature range of IO672-2-MF from 0 to +55ºC
    to -40ºC to +85ºC.
2E672X IO672-4-SF
  • 1 x IO672-4-SF
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2E6729 IO672-4-SF-ExtTemp
  • Increases temperature range of IO672-4-SF from 0 to +55ºC
    to -40ºC to +85ºC.
2F672X IO672-4-MF
  • 1 x IO672-4-MF
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2F6729 IO672-4-MF-ExtTemp
  • Increases temperature range of IO672-4-MF from 0 to +55ºC
    to -40ºC to +85ºC.


Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • I/O module installed into real-time target machine
  • Champ 50 to BNC cable
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation

Supported target machines
