IO921: Standard resistor simulation I/O module

A programmable resistor I/O module with up to 18-channels of resistor chains, with Simulink® driver blocks

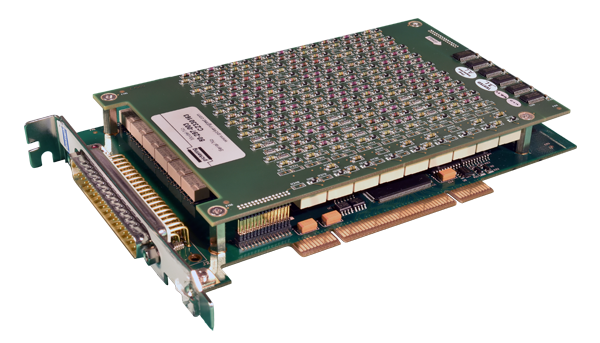

The IO921 is a programmable resistor module with up to 18-channels of resistor chains in a single PCI slot (8-bit variant). The flexible architecture allows the I/O module to be supplied in 8-bit, 12-bit, 16-bit or 24-bit resolution versions, for applications requiring finer resolution, greater resistance range, or higher channel count.

This I/O module is ideal for simulating the sensors for control and management systems under test, allowing the user to verify system response in design verification or manufacturing test applications.

All switches use instrument grade reed relays with low thermal offset voltage to ensure accurate operation under all conditions and a long service life. For maximum accuracy an on-board EEPROM allows accurate calibration data to be recorded for each resistor in the chain.

Features

  • Variants with 8, 12, 16, or 24-bit resolution
  • Up to 18 channels of 8-bit resolution
  • Up to 10 channels of 16-bit resolution
  • Provides fully isolated variable resistors
  • Configurable as adjustable resistor or potentiometer
  • Built-in non-volatile parametric memory for calibration data
  • Uses high reliability Pickering reed relays for maximum performance
  • Up to 2000 value changes per second
  • Configurable in steps of 1Ω

Variants

I/O module Resolution Channels Resistors Form factor

IO921-8/10

8 bit

10

0 to 255Ω

PCI

IO921-8/18

8 bit

18

0 to 255Ω

PCI

IO921-12/05

12 bit

5

0 to 4kΩ

PCI

IO921-12/10

12 bit

10

0 to 4kΩ

PCI

IO921-16/05

16 bit

5

0 to 65kΩ

PCI

IO921-16/10

16 bit

10

0 to 65kΩ

PCI

IO921-24/03

24 bit

3

0 to 16MΩ

PCI


Physical
Form factor 32-bit 32MHz PMC (PCI)
Power requirements 2.25W typical, 4.25W maximum
Connector 37-way D-type
Environmental
Operating temperature 0 to 55°C
Relative humidity 0 to 90%, non-condensing
Electromagnetic interference immunity (EMI) EN61000-6-1:2001
EMC emissions EN55011:1998
Item ID Product Name Components
2A921X IO921-8/10
  • IO921-8/10
  • 10 x 8-bit programmable resistors supporting a range of 0 to 255Ω, driver configurable in steps of 1Ω.
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2B921X IO921-8/18
  • IO921-8/18
  • 18 x 8-bit programmable resistors supporting a range of 0 to 255Ω, driver configurable in steps of 1Ω.
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2C921X IO921-12/05
  • IO921-12/05
  • 5 x 12-bit programmable resistors supporting a range of 0 to 4kΩ, driver configurable in steps of 1Ω.
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2D921X IO921-12/10
  • IO921-12/10
  • 10 x 12-bit programmable resistors supporting a range of 0 to 4kΩ, driver configurable in steps of 1Ω.
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2E921X IO921-16/05
  • IO921-16/05
  • 5 x 16-bit programmable resistors supporting a range of 0 to 65kΩ, driver configurable in steps of 1Ω.
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2F921X IO921-16/10
  • IO921-16/10
  • 10 x 16-bit programmable resistors supporting a range of 0 to 65kΩ, driver configurable in steps of 1Ω.
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine
2G921X IO921-24/03
  • IO921-24/03
  • 3 x 24-bit programmable resistors supporting a range of 0 to 16MΩ, driver configurable in steps of 1Ω.
  • Driver block library for Simulink® Real-Time™
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 6 = Performance real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
