Configurable I/O Module

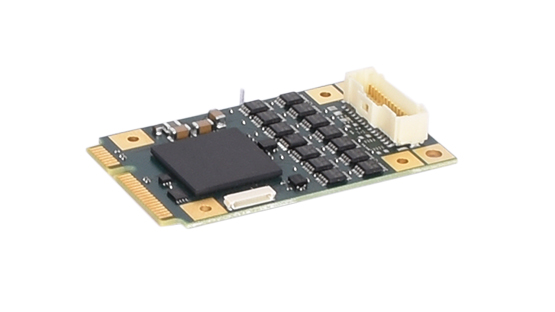

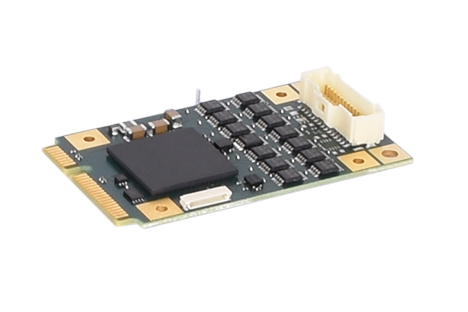

The IO394 I/O module is a mPCIe-compatible, configurable I/O module with 50k logic cells, 13 differential, ESD-protected M-LVDS I/O lines and a AMD® Artix®-7 chip. All the I/O lines are individually programmable as input or output.

The IO394 I/O module also has a basic heatsink to facilitate thermal management. The heatsink can be used to install additional cooling solutions like passive or active heatsinks or to provide a thermal connection to an enclosure.

This I/O module is ideal for closed-loop controls and hardware-in-the-loop (HIL) simulations using MATLAB® and Simulink®.

Key Features

  • 13 x differential, ESD protected M-LVDS I/O lines with a 100 Ω termination resistor
  • Configuration of the I/O module using Simulink® blocks from the Speedgoat I/O Blockset library as part of the Simulink® Real-Time™ workflow
Form factor mPCIe
Power requirements +3.3 Vaux: 650 mA typical
Bus PCI Express

Digital 1: 17-pin M12 male
Cable connector: Phoenix Contact M12 17-pos female connector
Board connector: Phoenix Contact part no. 1442078

Digital 2: 17-pin M12 female
Cable connector: Phoenix Contact M12 17-pos male connector
Board connector: Phoenix Contact part no. 1442081

Operating temperature -40°C to +85°C
Relative humidity 5 to 95%, non-condensing
Programmable FPGA
FPGA chip AMD® Artix-7 XC7A50T
Logic cells available 50k
Block RAM (Kb) 2700
DSP Slice 120
Digital 13 x differential, ESD-protected M-LVDS I/O lines with a 100 Ω termination resistor
Mean time between failures (MTBF)* 987,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2A394X IO394
  • 1 x IO394 I/O module
  • 2x17-pin male M12 to 17-pin female M12 Cable,(3ft/0.91 m)
  • 1x 2-way 17-Pin M12 Terminal Board
  • Driver block library for Simulink® Real-Time™
  • Simulink® test models
  • Comprehensive documentation and Simulink® example models
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 7 = Unit real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We do not publish pricing information on our website. Upon request by e-mail or phone, we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you contact us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.


Included in the Delivery

Common Applications

Supported target machine
