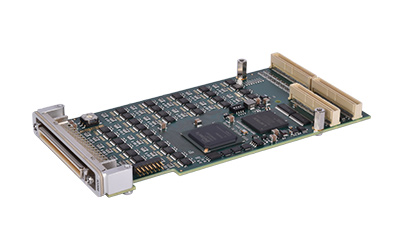

IO306

Configurable I/O Module



The IO306 I/O module is a flexible, cost-effective and configurable Spartan®-6 FPGA providing 25k logic cells.

This I/O module features 64 ESD-protected TTL lines which can be individually programmed as inputs or outputs. Each TTL I/O line also has a  pull resistor and the standard pull voltage level is fixed at +3.3 V. The IO306 I/O module comes with a Speedgoat configuration file offering a large selection of standard interfaces such as PWM and SPI.

Key Features

  • 64 ESD-protected TTL lines
  • Digital inputs and outputs
  • Configuration of the I/O module using Simulink® blocks from the Speedgoat I/O Blockset library as part of the Simulink® Real-Time™ workflow

IO306 Configuration Package

Configuration Package
IO306 Rapid Control Prototyping Configuration 16x PWM, 3x CAP, 4x Quadrature Decoder, 4x Pulse Counter and 1 Interrupt line. All I/Os can be used as digital I/O
IO306 Hardware in-the-loop Configuration 3x PWM, 16x CAP, 4x Quadrature Encoder, 4x Pulse Counter and 1 interrupt line. All I/Os can be used as digital I/O
IO306 Communication Configuration 2x SPI Master/Slave with 5 chip select, 2x SPI Master/Slave with one chip select, 4x I2C Master, 4x I2C Slave, 6x Serial (UART) and 1 interrupt line. All I/Os can be used as digital I/O

Physical
Form factor PMC
Bus PCI
Power requirements Up to 180 mA typical @ +5 V DC
Approximate value with external load on all I/O channels: 1.0 A @ +5 V DC
Connectors Front I/O 68-pin MDR connector (3M N10268-52E2PC)
PMC P14 I/O (64-pin Mezzanine Connector)
Environmental
Storage and operating temperature  -40° C to +85° C
Humidity 5 to 95 %, non-condensing
FPGA
FPGA chip  AMD® Spartan-6 XC6SLX25-2FGG484I
Speedgoat product name  IO306
Logic cells  25000
Clock frequency  73.728 MHz
I/O Interface
I/O channels 64 TTL I/O
I/O transceiver 74LVT126 (or compatible)
Reliability
Mean time between failures (MTBF)* 423,000 hours
MTBF (Mean Time Between Failure) - *MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2. Environment GB 20 °C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2A306X* IO306
  • 1x IO306 I/O module
  • 1x 68-pin male MDR to 68-pin male MDR cable, (6ft/1.82 m)
  • 1x DIN-rail mountable 68-pin female MDR terminal board
  • Driver block library for Simulink® Real-Time™
  • Installation into the real-time target machine
20306Z IO306 Configuration Package Configuration files for:
  • Rapid control prototyping
  • Hardware-in-the-Loop
  • Communication

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
