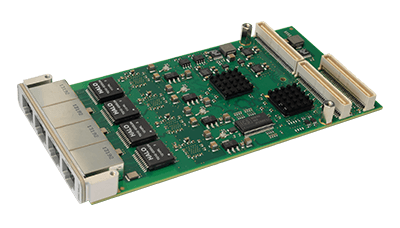

IO713: Gigabit Ethernet I/O Module

Gigabit Ethernet I/O module with 4 ports

The IO713 I/O module provides a four-channel 10BASE-T/100BASE-TX/1000BASE-T Ethernet interface. Simulink driver blocks are also provided.

The Ethernet interface supports 10, 100 and 1000 Mbit/s transmission rates for full-duplex operation, as well as 10 and 100 Mbit/s transmissions for half-duplex operation.

The four-channel Ethernet interface of the IO713 can perform an auto-negotiation algorithm which allows both link partners to identify the best link parameters themselves.

The IO713 I/O module provides support for the following protocols:

  • EtherCAT Master (MATLAB R2014b and newer)
  • Real-time UDP (MATLAB R2012b and newer)
  • Ethernet (MATLAB R2012b to MATLAB R2020a inclusive)
  • PTP IEEE-1588 (MATLAB R2015b to MATLAB R2020a inclusive)
  • XCP master for bypassing (MATLAB R2014a and newer)
  • TCP/IP (MATLAB R2017a and newer)

Fully compatible with the Simulink Real-Time™ workflow.



Key Features

  • Compatible with Gigabit Ethernet, Fast Ethernet and Ethernet
  • PCI 3.0 (up to 66 MHz) and PCIe 2.0a (up to 133 MHz) compliant
  • 10Base-T/100Base-TX/1000Base-T rate with auto-negotiation
  • 4 Intel™ 82574IT Gigabit Ethernet controllers

Physical
Form factor PMC
Power requirements  1700 mA max @ +5 V DC
Bus  PCI 3.0 (up to 66 MHz) and PCIe 2.0a (up to 133 MHz)
Connectors  RJ-45
Environmental
Operating temperature  -40 °C to +85 °C
Relative humidity  5 % - 95 %, non-condensing
Certification  CE, RoHS
 Technical
Data rate(s) supported per port  10/100/1000 Mbps
Integrated memory  32 Kbit Serial EEPROM per channel
Controller-Processor Intel™ 82574IT
Item ID Product Name Components
20713X IO713
  • 1 x IO713
  • Driver block library for Simulink Real-Time™
  • Comprehensive documentation and Simulink example models
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 6 = Performance real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in the Delivery

  • I/O module installed into real-time target machine
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
