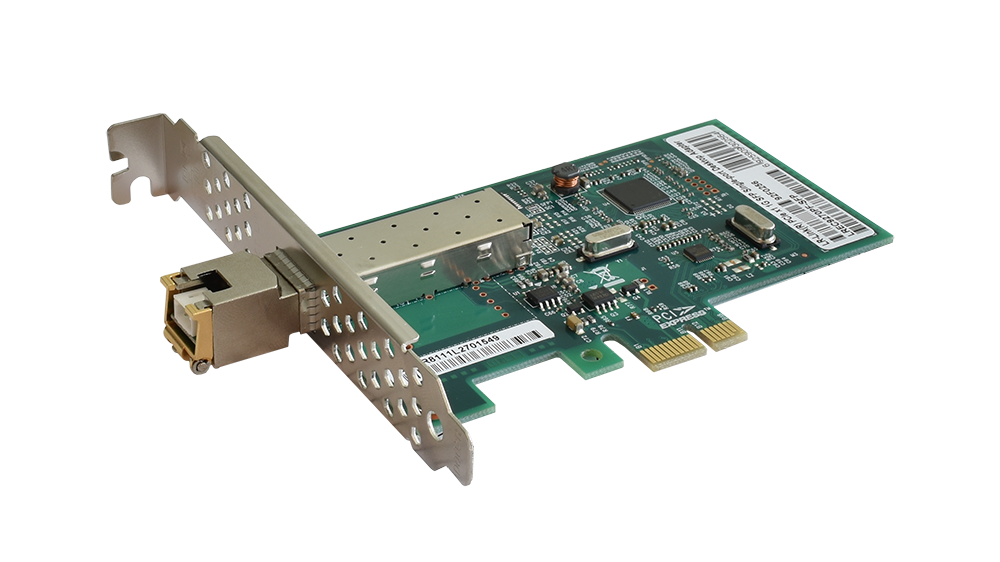

IO716: Gigabit Ethernet I/O Module

Automotive Ethernet Physical Layer I/O Module with Simulink® Driver Blocks

The IO716 I/O module provides a single-channel automotive Gigabit Ethernet (1000BASE-T1) physical interface, and is ideal for communicating with automotive Ethernet interfaces such as Electronic Control Units (ECUs). The Ethernet interface supports 1,000 Mbit/s full-duplex transmission rates over a single twisted pair cable.

The module supports the following protocols:

  • Real-time UDP (MATLAB® R2020b and later)
  • TCP/IP (MATLAB® R2020b and later)
  • XCP master for bypassing (MATLAB® R2020b and later)
  • RAW Ethernet (MATLAB® R2022a and later)
  • Modbus TCP (separate Runtime licenses, MATLAB® R2020b and later)
  • OPC UA (separate Runtime licenses, MATLAB® R2020b and later)

The IO716 I/O module is fully compatible with the Simulink® Real-Time™ workflow. The extensive Simulink® Real-Time™ driver blockset offers comprehensive functionality.

Key Features

  • Automotive Gigabit Ethernet Interface 1000Base-T1 supporting 1,000 Mbit/s full-duplex data rate
  • 1 Realtek RTl8111H Gigabit Ethernet controller
  • Configurable as Master or Slave via DIP switch


Physical
Form factor PCIe
Power requirements  Max. 1.0 W
Electrical Interface PCIe 1.1
Connectors  2-pin 2 mm Mi II connector (Molex 0533250260)
Environmental
Operating temperature  0 °C to +55 °C
Relative humidity  5 % - 95 %, non-condensing
 Technical
Data rate 1000 Mbps
Mode Master/Slave configurable by DIP switch (Default: Slave)
Controller-Processor Realtek RTL8111H
Physical Interface Single unshielded twisted pair
Item ID Product Name Components
2A716X IO716
  • 1x IO716 Single-Channel Automotive Gigabit Ethernet I/O module
  • 1x 2-Pin female Molex Cable with Unterminated Ends (3.2 ft/1 m)
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

6 = Performance real-time target machine



Pricing information
