IO504

Serial I/O Module Supporting RS232/RS422/RS485

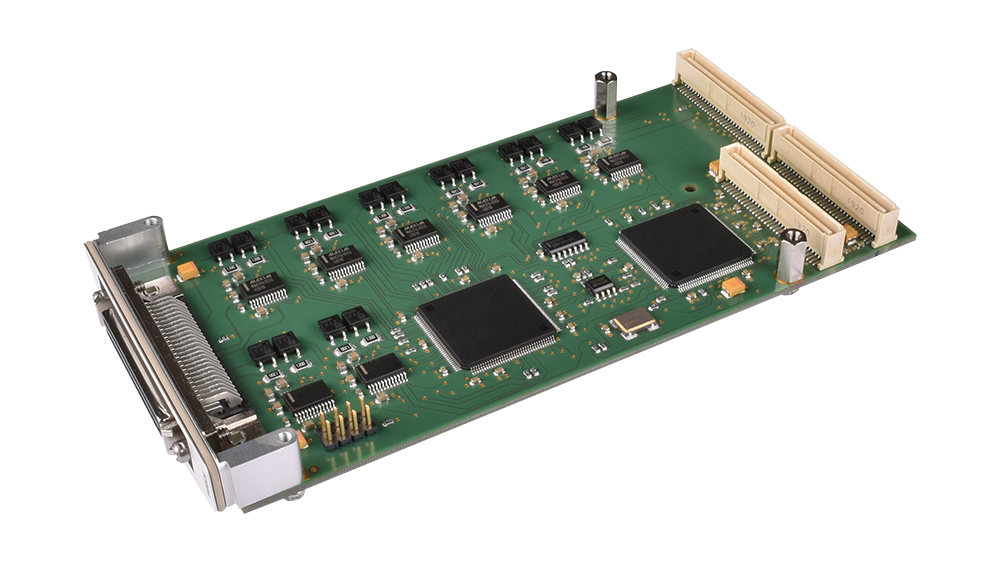

The IO504 I/O module is a 8-channel, RS232-, RS422- and RS485-capable asynchronous serial module with Simulink^® driver blocks.

The serial channels offer the highest flexibility as they are individually programmable. The maximum supported baud rate for RS232 is 921.6 kbps and 5.5296 Mbps for RS422/RS485. The termination is software-selectable for RS422 and RS485.

This I/O module is ideal for closed-loop controls and hardware-in-the-loop (HIL) simulations using MATLAB^® and Simulink^®.

Key Features

8 channels individually programmable as RS232, RS422 or RS485 (half and full duplex)
RS232 baud rate up to 921.6 kbps
RS422/RS485 baud rate up to 5.5296 Mbps
Software-selectable termination (120 Ω)
64-byte hardware FIFO

Physical
Form factor	PMC
Power requirements	40 mA typical @ +5V DC (Shutdown, no load) 55 mA typical @ +5V DC (RS232, no load) 115 mA typical @ +5V DC (RS422, no load) 440 mA typical @ +5V DC (RS485 FD Master, no load) 400 mA typical @ +5V DC (RS485 HD, no load) 45 mA typical @ +3.3V DC (no load)
Electrical interface	32 bit/33 MHz, Revision 2.3 compliant
Connectors	50-pin female SCSI2
Environmental
Operating temperature	-40ºC to +85ºC
Relative humidity	5 to 95%, non-condensing
Serial
Number of channels	8
Physical interface	Software-selectable RS232, RS422, RS485 (half and full duplex)
Programmable baud rates	RS232: up to 921.6 kbps RS422/RS485: up to 5.5296 Mbps
I/O signals	RS232: TxD, RxD, RTS, CTS, GND RS422/RS485 half duplex: Dx +/-, GND RS422/RS485 full duplex: TxD +/-, RxD +/-, GND
Termination	Software-selectable 120 Ω
Protection	±15 kV ESD rating
Reliability
Mean time between failures (MTBF)^*	530,000 hours

MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.

Item ID	Product Name	Components
20504X*	IO504	1x IO504 I/O module 1x 50-pin male SCSI2 to 50-pin male MDR cable, (6 ft/1.82 m) 1x 50-Pin Female MDR Terminal Board Driver block library for Simulink^® Real-Time™ Comprehensive documentation and Simulink^® example models Installation into the real-time target machine

Accessories
350029	50-pin male SCSI-2 to 4x 9‑pin male D-Sub cable	1ft/30cm long twisted black round cable with SCSI-2 male connector on one end and 4 x D-Sub9 connectors on the other end
350030	50-pin male SCSI-2 to 8x 9‑pin male D-Sub cable	1ft/30cm long twisted black round cable with SCSI-2 male connector on one end and 8 x D-Sub9 connectors on the other end

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

5 = Mobile real-time target machine
6 = Performance real-time target machine
8 = Baseline real-time target machine
9 = Pulse real-time target machine
