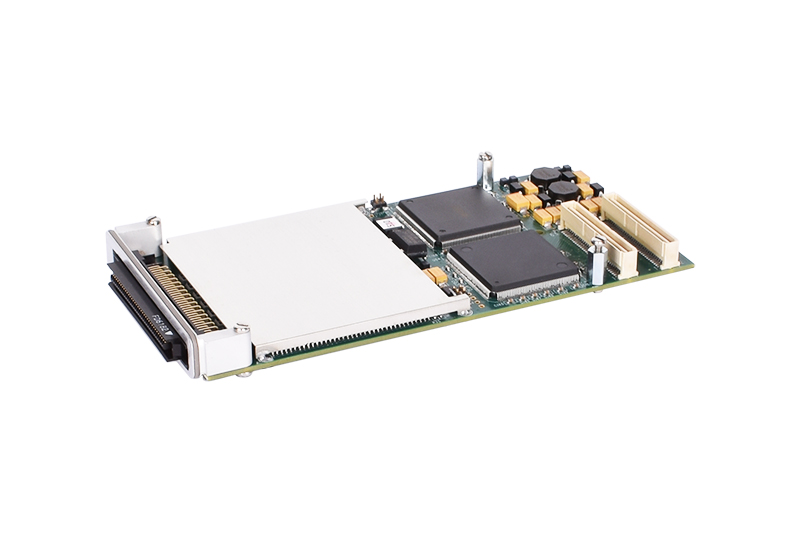

IO105: Fast 16-bit Analog Input Module

Fast 16-bit analog module with 64/32 multiplexed analog input channels and Simulink driver blocks

This I/O module offers sampling/conversion times similar to the IO102 and IO103 but comes with a higher analog input channel count of 64/32. Analog outputs and digital I/O are not available on this module.

Analog Inputs

  • 64 single-ended or 32 differential channels
  • 16 bit resolution
  • Selectable ±10V, ±5V, ±2.5V (software-selectable, same for all channels)
  • Simulink Real-Time™ analog input driver block with master/slave option
  • Auto-calibration of entire analog input section
Physical
Form factor PMC
Power requirements 5W maximum
PCI bus PCI Specification 2.3, D32, 33MHz
EMI EMI shield on component side
Connector 68-Pin P50E68
Cable connector: Please contact us
Board connector: Please contact us
Environmental
Operating temperature 0 to 65°C (extended temperature variants: -40°C to +85°C)
Relative humidity 0 to 80%, non-condensing
Analog inputs (at 25°C)
Configuration 64 single-ended or 32 differential analog input channels
A/D resolution 16 bits (0.0015 percent of FSR)
Conversion rate up to 500K conversions-per-second in single-channel mode
Sampling Mode Sequential; 2, 4, 8, 16, 32, and 64 channels per scan
Voltage Ranges Driver configurable as ±10V, ±5V or ±2.5V
Input impedance 1.0 MOhm typical
Bias current less than 80 nanoamps
Crosstalk rejection 60dB, DC-60kHz (differential inputs)
Overvoltage protection ±30V with power applied, ±15 Volts with power removed
DC accuracy (maximum composite error after autocalibration) ±10V range: ± 3mV (midscale accuracy), ± 4mV (full scale accuracy)
±5V range: ± 2mV (midscale accuracy), ± 3mV (full scale accuracy)
±2.5V range: ± 1mV (midscale accuracy), ± 2mV (full scale accuracy)
Integral nonlinearity ±0.007 percent FSR (FSR = fullscale range; e.g. 20V on ±10V range)
Differential nonlinearity ±0.003 percent FSR
Reliability
Mean time between failures (MTBF)* 523,180 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
20105X IO105
  • 1 x IO105
  • 1 x shielded round 68-Pin SCSI3 cable, 1.82m (6ft) long
  • 1 x 68-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
201059X IO105-ExtTemp
  • 1 x IO105-ExtTemp with extended temperature range from -40ºC to +85ºC
  • 1 x shielded round 68-Pin SCSI3 cable, 1.82m (6ft) long
  • 1 x 68-Pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in the Delivery

  • I/O module installed into real-time target machine
  • Cable and terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
