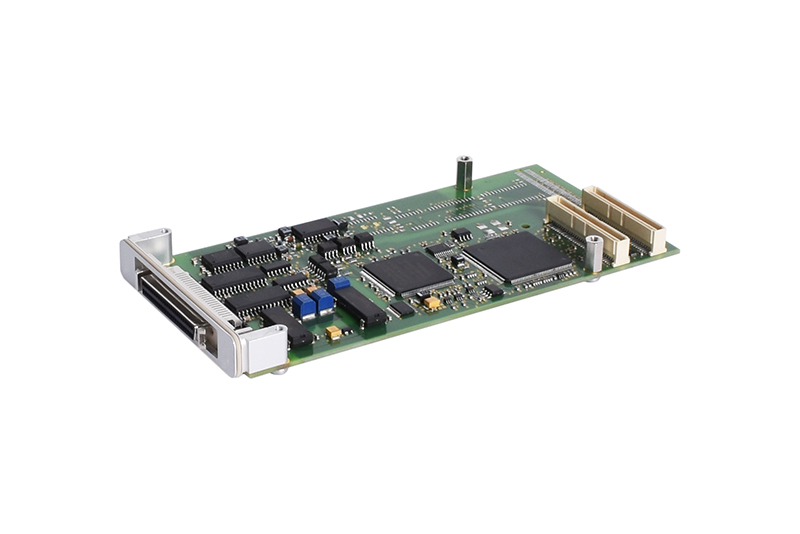

IO117: High-Impedance 16-bit Analog Input I/O Module

High-impedance 16-bit analog module with 32/16 multiplexed analog input channels and Simulink driver blocks

This I/O module offers a powerful combination of very high input impedance, a high analog input count, and small conversion and settling times. With high impedance and galvanic isolation, this I/O module is perfect for applications requiring very low leakage current (4 nA) such as direct battery measurement of battery management systems (BMS).

Analog Inputs

  • 32 single-ended or 16 differential channels (mixed mode also possible)
  • 16-bit resolution
  • Galvanically isolated
  • ±1V, ±2V, ±5V, ±10V (one setting per channel)
  • Sequential sampling
  • Simulink Real-Time™ analog input driver block
Form factor PMC
Power requirements 300mA typical @ +5V DC
120mA typical @ +3.3V DC
Bus PCI bus 33 MHz / 32-bit, Rev. 2.2 compliant
Connector(s) 50-way SCSI2
Connector: HD50 female (SCSI-2 type)
Cable: Shielded round 50-way SCSI-2 cable, 1.82m (6ft) long
Terminal board: 50 pin terminal board SCSI-2
Analog inputs
Number of inputs 32 single-ended channels or 16 differential channels (mixed mode possible)
Input signal type Voltage (isolated)
A/D resolution 16-bit
Max. ADC sample rate 14.5us pro channel conversion time
Voltage ranges ±1V, ±2V, ±5V, ±10V (one setting per channel)
Input over voltage protection 70Vpp
Input Impedance 1 TΩ (4nA leakage current)
DC accuracy ±4LSB after calibration
Integral and differential nonlinearity ±2LSB
Linearity ±4LSB
Operating temperature -40°C to +85°C
Relative humidity 5 – 95 % non-condensing
I/O Access
Front 32 x single-ended channels or 16 x differential channels
Rear -
Mean time between failures (MTBF) 552,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
20117X IO117
  • 1 x IO117
  • 1 x shielded round 50-way SCSI-2 cable, 1.82m (6ft) long
  • 1 x 50-way spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module will be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We do not publish pricing information on our website. Upon request by e-mail or phone, we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you contact us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.


Included in delivery

  • I/O module installed in real-time target machine
  • Cable and terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation


Supported target machines
