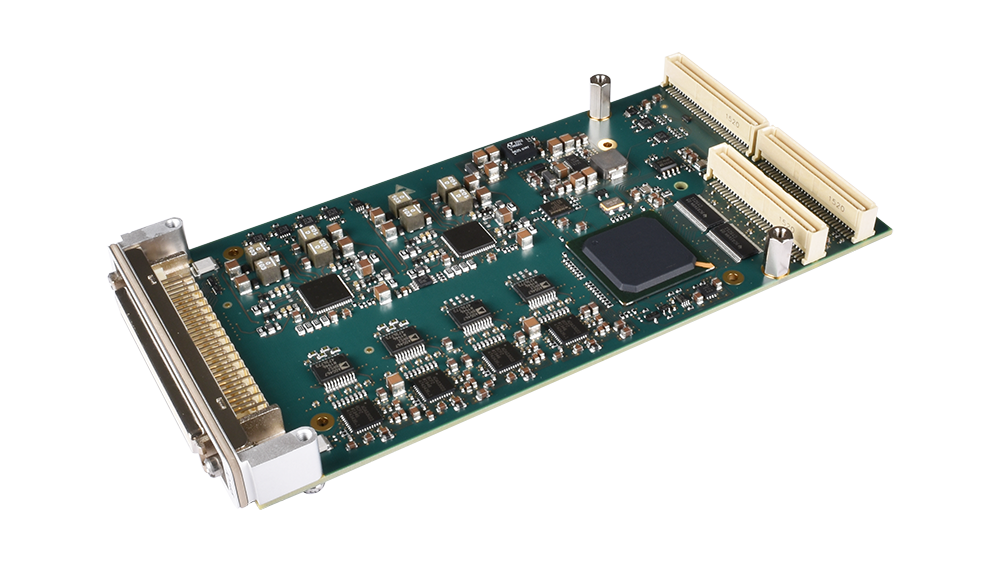

IO145: Fast-Sampling 16-bit Analog I/O Module

Fast-Sampling 16-bit Analog I/O Module with Current and Voltage Inputs and Outputs

The IO145 I/O module combines both voltage and current analog input and output channels on a single board, offering an ideal solution for accurate measurements and output generation in various application areas such as industrial automation, aerospace and automotive.

The extended input voltage capability and the variety of supported input and output ranges enable the IO145 to interface with many I/O systems. Furthermore, the on-board high-speed and low latency converters allow reliable data acquisition of fast changing signals.

The additional configurable digital I/O lines and the Speedgoat I/O Blockset provided enable the module to be flexibly configured for any measurement or control scenario using MATLAB® and Simulink®.

Key Features

  • Measurement and generation of voltage or current signals on a single board
  • 16 single-ended voltage input channels up to ±48 V
  • 8 current input channels with a range of ±25 mA
  • 8 output channels selectable for voltages up to ±12 V or currents with a 4 to 20 mA, 0 to 20 mA or 0 to 24 mA range
  • Multi-channel analog-to-digital converter for fast sequential sampling up to 800 kSPS
  • Easy to configure with the available Speedgoat I/O Blockset
  • Seamless integration with Simulink

Physical
Form factor PMC
Power requirements 850 mA max @ +5 V DC
Electrical interface 32 bit/33 MHz, Revision 3 of PMC specification, P1386.1
Connectors 68-pin MDR connector (3M N10268-52E2PC)
Environmental
Operating temperature -40°C to +85°C
Relative humidity 5 to 95%, non-condensing
Current Input

Number of inputs 8 current inputs
A/D resolution  16-bit
Maximum ADC sample rate  100 kSPS to 800 kSPS, depending on the number of active channels
Input Filter 105 kHz -3dB cutoff frequency
Current range

±25 mA - Operating as a voltage input stage with an input resistance of 250 Ω, max. ±6.25 V

Voltage Input

Number of  inputs 16 single-ended or 8 true bipolar differential voltage inputs
A/D resolution  16-bit
Maximum ADC sample rate  100 kSPS to 800 kSPS, depending on the number of active channels
Input Filter 105 kHz -3dB cutoff frequency
Voltage ranges

Single-ended: Software selectable ±10 V, ±20 V, ±40 V, ±48 V

Differential: Software selectable ±10 V, ±20 V, ±40 V, ±80 V, ±96 V
(individual setting for each channel)

Voltage and Current Output

Number of outputs 8 single-ended combined voltage or current outputs
D/A resolution 16-bit
Settling time 10 µs typical
Voltage ranges

Software selectable (one setting per channel)
0-5 V, 0-10 V, ±5 V, ±10 V
0-6 V, 0-12 V, ±6 V, ±12 V

Current ranges

Software selectable (one setting per channel): 4 to 20 mA, 0 to 20 mA, 0 to 24 mA

Output load

Max. 680 Ω per current mode D/A channel. Capacitive load stability up to 10 nF per output

Digital I/O
Ports   8 individually configurable as input or output, LVTTL/TTL 3.3 V/5 V tolerant
Current per line   12 mA (source)/6 mA (sink)
Protection   4.7 kΩ pull resistor to a common reference
Reliability
Mean time between failures (MTBF)* 165,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.

Item ID Product Name Components
20145X*  IO145
  • 1x IO145 I/O module with 16 single-ended or 8 true differential analog high-voltage inputs, 8 differential current inputs, 8 single-ended analog outputs and 8 digital I/O lines
  • 1x 68-pin male MDR to 68-pin male MDR I/O Cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Driver block library for Simulink Real-Time
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
Optional Accessories
20145P IO145-BNC-Panel  Aluminum BNC panel for the IO145 I/O module providing a total of 40 BNC connectors to access 8 differential analog high-voltage inputs, 8 differential current inputs, 8 single-ended analog outputs, and a pluggable terminal block for the 8 TTL lines
20142N IO145-BNC-Box  Aluminum BNC box for the IO145 I/O module providing a total of 40 BNC connectors to access 8 differential analog high-voltage inputs, 8 differential current inputs, 8 single-ended analog outputs, and a pluggable terminal block for the 8 TTL lines

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in the Delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
