IO204: Digital I/O Module

Galvanically Isolated Digital I/O Module

The IO204 I/O module is a galvanically isolated digital input and output module with Simulink® driver blocks. The 16 digital inputs offer a 12 V or 24 V input range. The 16 digital outputs are available as high-side or low-side switches with a 6 V to 48 V output range.All channels are galvanically isolated by opto-couplers.All outputs are protected against short-circuit and thermal overload and can output up to 0.5 A per channel.

This I/O module is ideal for closed-loop controls and hardware-in-the-loop simulations using MATLAB® and Simulink.

Digital Inputs

  • 16 galvanically isolated inputs
  • Either 12 V or 24 V input range
  • Simulink Real-Time™ digital input driver blocks

Digital Outputs

  • 16 galvanically isolated outputs

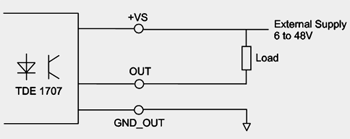

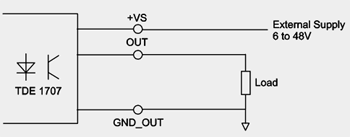

  • Either high-side switch or low-side switch, 6 V to 48 V output range
  • Conti nuous outp ut current of 0.5 A per channel
  • Simulink Real-Time digital output driver blocks
Physical
Form factor PMC
Bus 32 bit/33 MHz, Revision 3 of PMC specification, P1386.1
Power requirements 90 mA max @ +5 V DC (all inputs and outputs active)
Connectors 68-pin SCSI connector
Environmental
Operating temperature -25 to +85°C
Humidity 5 to 95% non-condensing
Digital inputs
Number of inputs 16 channels
Isolation Optocouplers for galvanic isolation
Max. input voltage 24 VDC ±20% (typical)
Input low voltage < 7.5 V DC (IO204)
< 5 V DC (IO204-12V)
Input high voltage > 14 V DC (IO204)
> 10 V DC (IO204-12V)
Input current 4.2 mA typical @ 24 V DC (IO204)
1.3 mA typical @ 12 V DC (IO204-12V)
Digital Outputs
Number of outputs 16 channels
Isolation Optocouplers for galvanic isolation
External supply voltage 6 V DC to 48 V DC
Output current 0.5A typical, 0.8A short circuit, per channel
Output voltage drop 1.1V DC typical @ 0.5 A
Protection Overload, short circuit, GND and VS open wire protection, thermal shutdown
Reliability
Mean time between failures (MTBF)* 860,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2. Environment GB 20 °C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2A204X* IO204 (high-side)
  • 1x IO204 I/O module (high-side) with 24 V inputs
  • 1x 68-Pin Male SCSI3 to 68-Pin Male SCSI3 Cable, (6ft/1.82 m)
  • 1x 68-Pin Female SCSI3 Terminal Board
  • Driver block library for Simulink Real-Time
  • Installation into real-time target machine
2B204X IO204 (low-side)
  • 1x IO204 I/O module (low-side) with 24 V inputs
  • 1x 68-Pin Male SCSI3 to 68-Pin Male SCSI3 Cable, (6ft/1.82 m)
  • 1x 68-Pin Female SCSI3 Terminal Board
  • Driver block library for Simulink Real-Time
  • Installation into real-time target machine
2C204X IO204-12V (high-side)
  • 1 x IO204-12V (high side) with 12V inputs
  • 1 x shielded round 68-pin SCSI3 to 68-pin MDR cable, 1.63m (6ft) long
  • 1 x 68-pin spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2D204X IO204-12V (low-side)
  • 1x IO204-12V I/O module (high-side) with 12 V inputs
  • 1x 68-Pin Male SCSI3 to 68-Pin Male SCSI3 Cable, (6ft/1.82 m)
  • 1x 68-Pin Female SCSI3 Terminal Board
  • Driver block library for Simulink Real-Time
  • Installation into real-time target machine
2D204X IO204-12V (low-side)
  • 1x IO204-12V I/O module (low-side) with 12 V inputs
  • 1x 68-Pin Male SCSI3 to 68-Pin Male SCSI3 Cable, (6ft/1.82 m)
  • 1x 68-Pin Female SCSI3 Terminal Board
  • Driver block library for Simulink Real-Time
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in the Delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
