IO206

Galvanically Isolated Digital Input Module

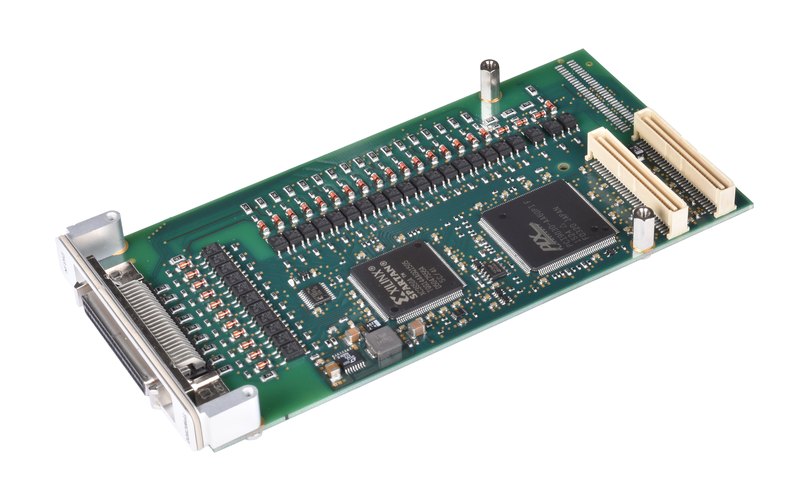

The IO206 I/O module is a digital input module with Simulink® driver blocks.The 32 digital inputs offer a 8 V, 12 V or 24 V input range. The following variants are available: the IO206 with 24 V inputs, the IO206-12V with 12 V inputs, and the IO206-8V with 8 V inputs. You can also adjust the debounce time of the digital inputs within the specific time parameters available.

This I/O module is ideal for closed-loop controls and hardware-in-the-loop (HIL) simulations using MATLAB® and Simulink.

Key Features

  • Up to 32 galvanically isolated inputs
  • 8 V, 12 V or 24 V input range
  • Variable debounce circuit (7 us to 440 ms in steps of 7 us)
  • Simulink Real-Time digital input driver blocks



Physical
Form factor PMC
Power requirements 1.25 W typical
Electrical interface PCI 32-bit/33 MHz, Rev. 2.1 compliant
Connectors 50-pin male SCSI2
Environmental
Operating temperature -40 to +85°C
Humidity 5 to 95% non-condensing
Digital inputs
Number of inputs 32 channels
Isolation Optocouplers for galvanic isolation
Max input voltage 24 V DC +-20%
Input low voltage < 7.5 V DC (IO206)
<5 V DC (IO206-12V)
<3 V DC (IO206-9V)
Input high voltage > 14 V DC (IO206)
> 10 V DC (IO206-12V)
> 6 V DC (IO206-9V)
Input current 4.2 mA typical @ 24 V DC (IO206)
1.3 mA typical @ 12 V DC (IO206-12V)
Switching level 12V typical, 7.5V minimum, 14V maximum
Signal debouncing Variable debounce time, common for all channels
Value from 7 us to 440 ms in 7 us steps. Can be disabled
Reliability
Mean time between failures (MTBF)* 208,020 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
20206X* IO206
  • 1x IO206 I/O module with 24 V inputs
  • 1x 50-pin male SCSI2 to 50-pin male SCSI2 cable, (6 ft/1.82 m)
  • 1x 50-Pin Female SCSI2 Terminal Board
  • Driver block library for Simulink Real-Time
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
2B206X IO206-12V
  • 1x IO206 I/O module with 12 V inputs
  • 1x 50-pin male SCSI2 to 50-pin male SCSI2 cable, (6 ft/1.82 m)
  • 1x 50-Pin Female SCSI2 Terminal Board
  • Driver block library for Simulink Real-Time
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
2C206X IO206-8V
  • 1x IO206 with 8 V inputs
  • 1x 50-pin male SCSI2 to 50-pin male SCSI2 cable, (6 ft/1.82 m)
  • 1x 50-Pin Female SCSI2 Terminal Board
  • Driver block library for Simulink Real-Time
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in the Delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
