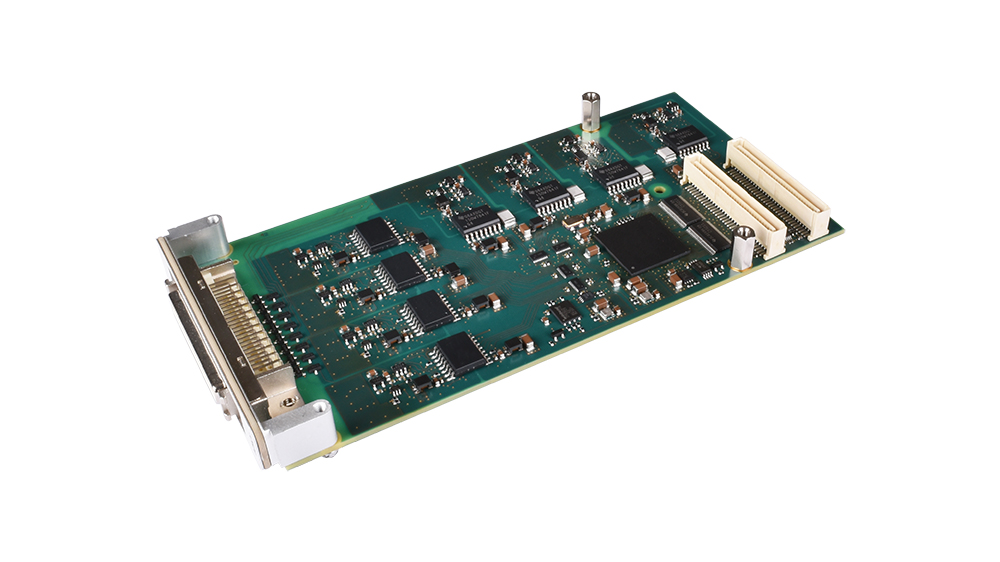

IO624

PSI5 I/O Module for Sensor Emulation, with Simulink® Driver Blocks

PSI5 (Peripheral Sensor Interface 5) is a widely known interface for vehicle sensors in the automotive industry, and is especially used in airbag, chassis and safety control, and powertrain applications.

With the IO624 I/O module, Speedgoat provides a straightforward solution to emulate up to 8 PSI5 sensors. The module also supports different bus topologies and transmission rates to meet a variety of use cases.

Sensors and Electronic Control Units (ECUs) are directly connected by just 2 wires, which use the same lines for power supply and data transmission: sensor information is current modulated over these lines. This approach guarantees the highest level of reliability and robustness and significantly reduces overheads and costs.

The IO624 I/O module is ideal for PSI5 sensor emulation using MATLAB® and Simulink and is fully compatible with the Simulink Real-Time™ workflow. The extensive Simulink Real-Time driver blockset offers comprehensive functionality.

Key Features

  • 8 galvanically isolated channels
  • Supports PSI5 sensor protocols
  • Transmission rates: 125 kbps and 189 kbps
  • Each channel is isolated from the system and from each other

IO624 - Product Brief v1


Physical
Form factor PMC
Power requirements 450 mA typical @ +5 V DC
Electrical interface 32 bit/33 MHz, Revision 3.0 compliant
Connectors 50-pin Mini D (MDR50)
Environmental
Operating temperature -40 °C to +85 °C
Relative humidity 5 to 95 %, non-condensing
Interface
Number of channels 8
Protocols PSI5
Sensor supply 4 - 24 V
Current sink Max. 75 mA
PSI5 Specifications
  • PSI5-P (synchronous parallel), PSI5-U (synchronous universal) and PSI5-D (synchronous daisy chain, with tooth gap method, data frame 1) bus topologies supported
  • Transmission rates: 125 kbps and 189 kbps
  • PSI5 Sync and Reset pulse detection
Item ID Product Name Components
2A624X* IO624
  • 1x IO624 PSI5 I/O module
  • Speedgoat I/O Blockset for Simulink Real-Time
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.


IO624: PSI5 I/O Module for Sensor Emulation, with Simulink® Driver Blocks

Included in the Delivery

  • I/O module installed in the real-time target machine
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
