IO715

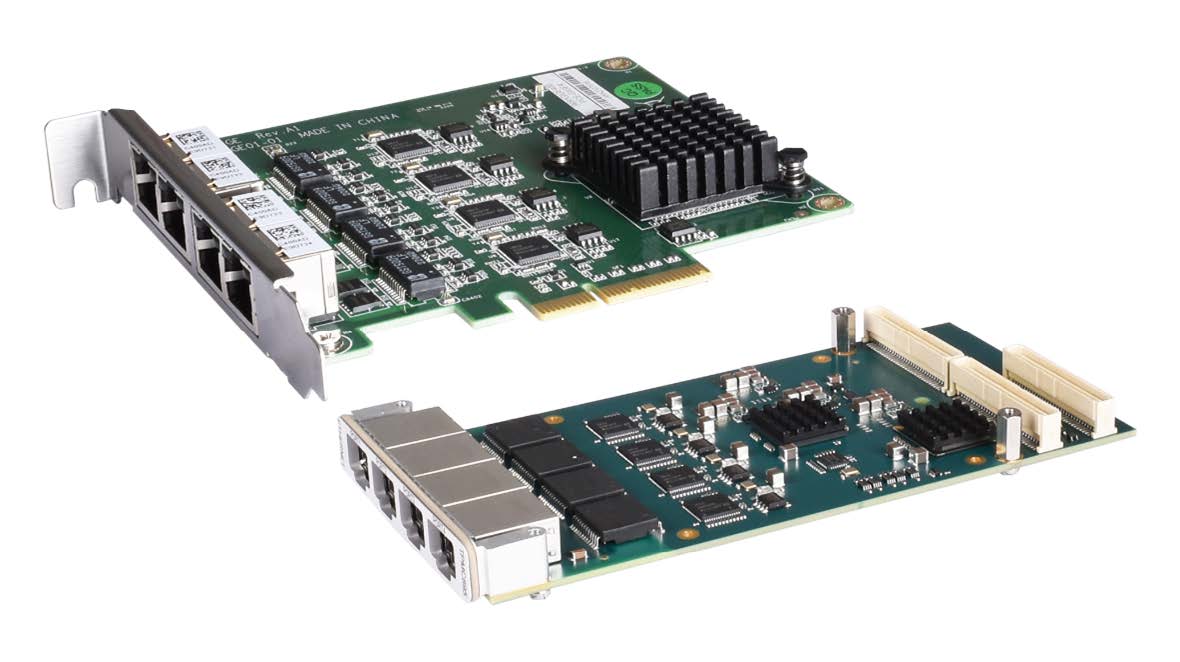

Four-Channel Gigabit Ethernet I/O module with Simulink® Driver Blocks

The IO715 I/O module provides a four-channel 10BASE-T/100BASE-TX/1000BASE-T Ethernet interface. The Ethernet interface supports 10, 100 and 1000 Mbit/s transmission rates for full-duplex operation, as well as 10 and 100 Mbit/s transmissions for half-duplex operation.

The four-channel Ethernet interface of the IO715 can perform an auto-negotiation algorithm which allows both link partners to identify the best link parameters themselves.

The IO715 I/O module provides support for the following protocols:

  • DNP3 (separate Runtime licenses, MATLAB® R2020b and later)
  • IEC 61850 (separate Runtime licenses, MATLAB® R2020b and later)
  • EtherCAT Main Device (MATLAB® R2018a and later)
  • MQTT (separate Runtime licenses, MATLAB® R2020b and later)
  • PTP IEEE-1588 (MATLAB® R2018b and later)
  • Real-time UDP (MATLAB® R2018a and later)
  • TCP/IP (MATLAB® R2018a and later)
  • XCP master for bypassing (MATLAB® R2018a and later)
  • Modbus TCP (separate Runtime licenses, MATLAB® R2020b and later)
  • OPC UA (separate Runtime licenses, MATLAB® R2020b and later)

The IO715 I/O module is fully compatible with the Simulink® Real-Time™ workflow. The extensive Simulink® Real-Time™ driver blockset offers com-prehensive functionality.

Key Features

  • Compatible with Gigabit Ethernet, Fast Ethernet and Ethernet
  • 4 Intel™ I210IT Gigabit Ethernet controllers
  • 10Base-T/100Base-TX/1000Base-T rate with auto-negotiation


Physical
Form factor PMC PCIe
Power requirements  900 mA typical @ +5 V (each channel, no link)
Approx. additional 20 mA per 100 Mbit/s link
Approx. additional 70 mA per 1 Gbit/s link
Electrical Interface PCI 3.0 (up to 66 MHz) and
PCIe 2.0a (up to 133 MHz) compliant
PCIe , compliant with PCI Express Base Specification, Revision 2.0
Connectors  4x RJ-45
Environmental
Operating temperature  -40 °C to +85 °C 0-60 °C
Relative humidity  5 % - 95 %, non-condensing
 Technical
Data rate(s) supported per port  10/100/1000 Mbps
Controller-Processor Intel™ I210IT
Weight 82g 80g
Reliability
Mean time between failures (MTBF)* 429,000 hours 3,038,755 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
20715X IO715
  • 1 x IO715
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into real-time target machine
2B7156 IO715-P
  • 1x IO715 Gigabit Ethernet I/O module (PCIe)
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine
