IO318

Configurable I/O module

The IO318 is a flexible, cost-effective, and configurable I/O module with 32 differential digital lines.

You can expand the IO318 capabilities with Speedgoat’s I/O interface extensions for digital lines or additional functionalities such as resolver measurement.

The IO318 I/O module comes with a Speedgoat configuration file containing all the required functionality and is ideal for closed-loop controls and hardware-in-the-loop (HIL) simulations using MATLAB® and Simulink®.

Key Features

  • 32 RS422/RS485 differential I/O lines
  • 64 additional I/O lines
  • Configurable workflow for Simulink® Real-Time™ supported by Speedgoat configuration files and the Speedgoat I/O Blockset
  • Simulink® Real-Time™ driver blocks for FPGA code modules

Physical
Form factor XMC
Bus PCI Express
Power requirements Up to 0.650 A typical @ +5 V VPWR
Connectors Front I/O 3M MDR68 type Connector
Environmental
Operating temperature -40°C to +85°C
Relative humidity 5 to 95%, non-condensing
Programmable FPGA
FPGA chip AMD® Spartan 6 XC6SLX100T-2
Logic cells 100,000
Clock frequency 75 MHz
I/O

Front I/O 32 RS422/RS485 differential front I/O lines. The direction is software-configurable for each line
Reliability
Mean time between failures (MTBF)* 320,000 hours
I/O Interfaces
IO318 - Plug-ins
I/O Interface Extension
IO318-21 56x 3.3 V/5 V TTL I/O lines
IO318-22 24x 3.3 V/5 V TTL I/O lines and 32x RS422/RS485 I/O lines
IO318-24 2x resolver measurement channels, 40x 3.3 V/5 V TTL I/O lines (of which 16 are configurable as RS422/485)
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are unavailable, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2B318X* IO318
  • 1x IO318 I/O module
  • 1x 68-pin male MDR to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x DIN-rail mountable 68-pin Female MDR Terminal Board
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine

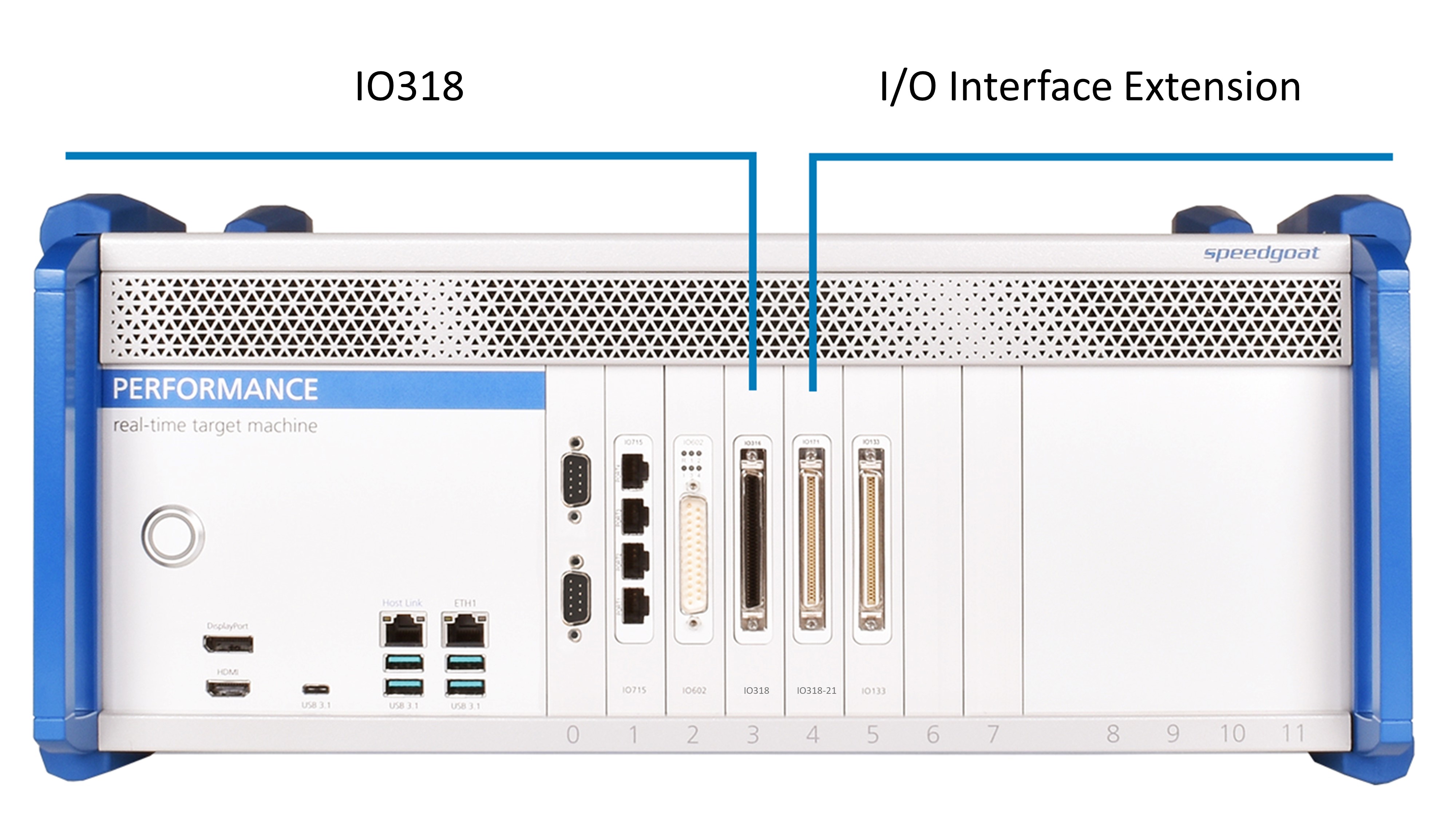

I/O Interface Extension (Optional)
23x21X IO318-21
  • 1x IO318-21
  • 1x 68-pin male MDR to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Installation next to the IO318 I/O module
23x22X IO318-22
  • 1x IO318-22
  • 1x 68-pin male MDR to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Installation next to the IO318 I/O module
23x24X IO318-24
  • 1x IO318-24
  • 1x 68-pin male MDR to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Installation next to the IO318 I/O module

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone, we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
