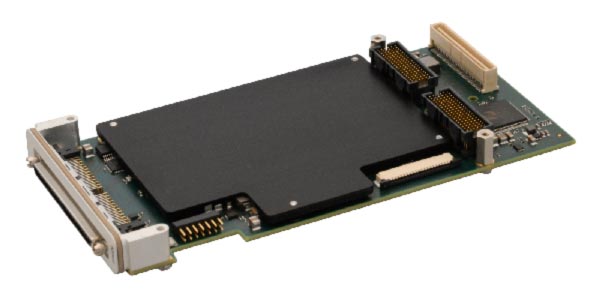

IO323: Simulink-programmable FPGA I/O Module

Simulink-programmable FPGA I/O module with Spartan 6 FPGA, analog and digital I/O, multi-gigabit transceivers, and Simulink driver blocks

This I/O module offers flexible functionality, reconfigurable at any time with functionality from FPGA code modules, or your own algorithms designed in Simulink with HDL code automatically generated using HDL Coder.

Achieve signal frequencies of 5-150 MHz depending on selected functionality and cabling.

Digital I/O

  • 48 x ESD protected front TTL I/O lines with pull-resistors. Voltage levels of 3.3V, 5V, or ground, and input/output direction are software configurable by I/O line
  • 64 x rear LCMOS I/O lines to connect with IO3XX rear plug-ins for signal conditioning, or access directly
  • 3 x rear multi-gigabit transceivers (MGTs), to exchange data with other FPGA-based I/O modules

Analog I/O

  • 32/16 x 16-bit single-ended/differential analog inputs, provided by 4 A/D converters each supporting 8/4 channels. Single-ended/differential operation is individually selectable per ADC. Simultaneous acquisition frequencies of 1 MSPS are possible when using a single A/D channel per converter. When using 8 ADC channels per converter, acquisition frequency is up to 125KSPS. Input voltage ranges are ±24.576V, ±20.48V, ±10.24V, ±5.12V, ±2.56V, ±1.28V and ±0.64V, software selectable by channel.
  • 8 x 16-bit simultaneously updating analog outputs with a voltage range of ±10V. Frequencies up to 100 KSPS per channel are possible. Each analog output channel can drive a load with a maximum current of ±1 mA and a capacitance of 1000 pF.

Physical
Form factor XMC
Bus PCIe
Environmental
Operating temperature -40°C to +85°C
Relative humidity 5 to 95%, non-condensing
Programmable FPGA
FPGA chip Xilinx Spartan 6
No. of logic cells available 100,000
Analog I/O

Analog inputs 32/16 x 16-bit single-ended/differential analog inputs, provided by 4 x ADC converters each supporting 8/4 channels. Single-ended/differential operation is individually selectable per ADC converter. Simultaneous acquisition frequencies of 1MSPS are possible when using a single ADC channel per converter. When using 8 x ADC channels per converter, acquisition frequency is up to 125KSPS. Input voltage ranges are ±24.576V, ±20.48V, ±10.24V, ±5.12V, ±2.56V, ±1.28V and ±0.64V, software selectable per channel.
Analog outputs 8 x 16-bit simultaneous updating analog outputs with a voltage range of ±10V. Frequencies per channel up to 100 KSPS are possible. Each analog output channel can drive a load with maximum load current of ±1mA and a capacitance of 1000pF.
Digital I/O

Front I/O 48 x ESD protected front TTL I/O lines, 3.3/5V or ground, direction configurable by line. Maximum current: +/- 32mA.
Rear I/O 64 x rear LCMOS, 3.3V or 32 LVDS, or a combination of it on P14
3 x Multi-Gigabit Transceivers on P16
Reliability
Mean time between failures (MTBF)* 259,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2B323X IO323
  • 1 x IO323
  • 1 x shielded round 100-way HDRA cable to 2x 50-way SCSI-2 cables, 1.22M (4ft) long
  • 2 x 50-way screw terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We do not publish pricing information on our website. Upon request by e-mail or phone, we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you contact us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal boards
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation

Supported target machines
